Ricoh Aficio MP201SPF Service Manual

Key Counter (Card) Interface Type A
SM 2-45 D115/D116
Installation

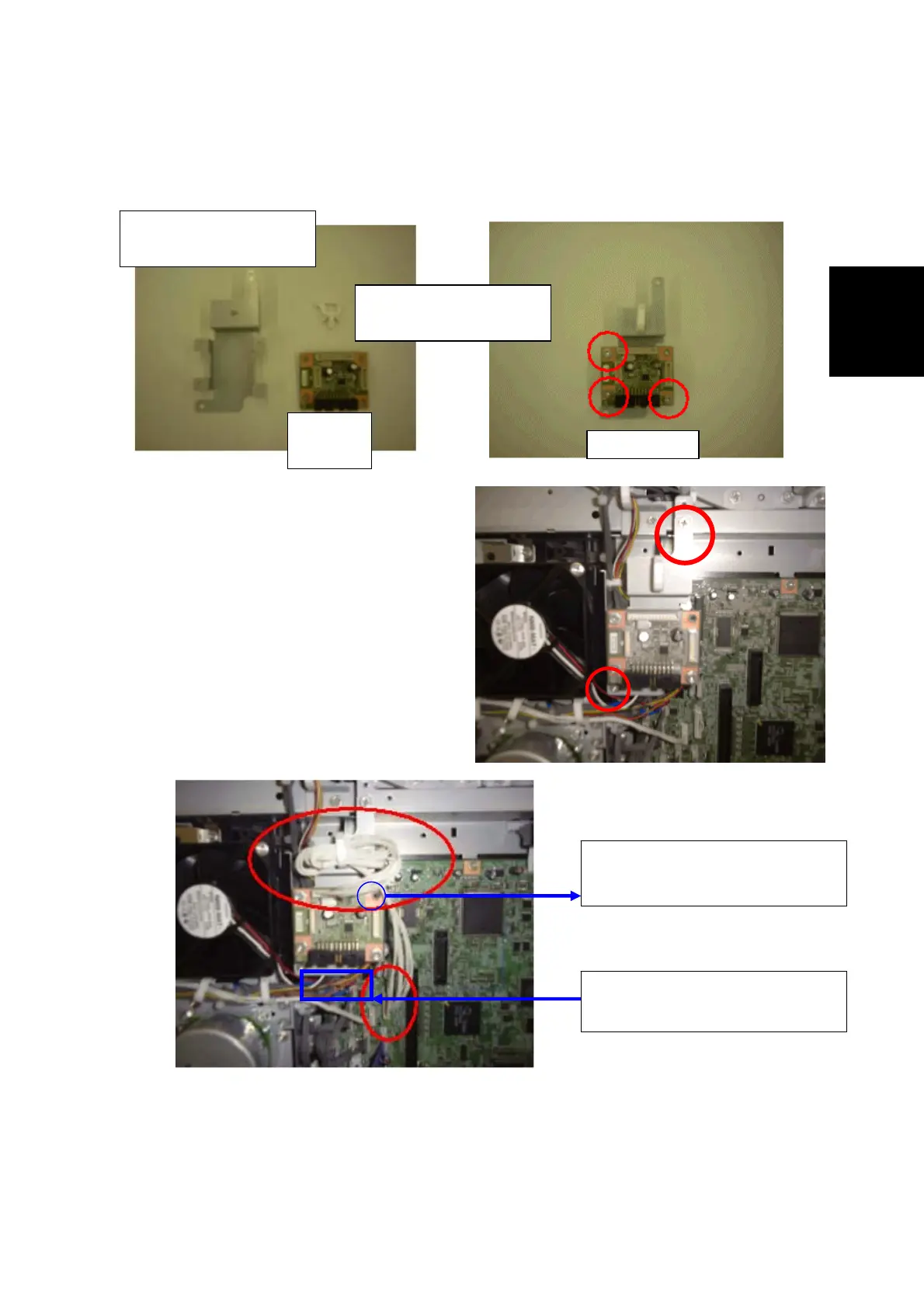

3. Attach the MKB bracket and harness clamp to the MKB (3 x ).
4. Attach the MKB + bracket to the copier
(2 x ).
5. Connect one end of the MKB harness to CN3 (13
pins) on the MKB.
6. Connect the other end of the MKB harness to
CN149 (13 pins) on the BICU.
3 screws
MKB Bracket
Harness clamp
MKB
Screw for grounding line of vendor’s
harness (if needed).
CN4 (20 pins) for connection of
vendor’s harness.
Rev. 04/25/2012

Ricoh Aficio MP201SPF Specifications

General

Type	Multifunction Printer
Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Max Print Resolution	600 x 600 dpi
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Transmission Speed	3 seconds per page
Modem Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
Connectivity	USB 2.0, Ethernet
Dimensions	485 x 450 x 481 mm
Warm-up Time	30 seconds
Paper Output Capacity	100 sheets
Print Speed	20 ppm
Copy Speed	20 cpm
Scanner Type	Flatbed
Zoom	25% - 400%
Supported Paper Sizes	A4, A5, A6, B5, Legal, Letter
Operating System Compatibility	Windows, Mac, Linux
Duplex Printing	Automatic
