Key Counter (Card) Interface Type A
D115/D116 2-46 SM
7. Connect the vendor’s harness for the external key counter device to CN4 (20 pins) on the
MKB.
8. Reattach the rear cover.
IMPORTANT: Pass the vendor’s harness through the cut-out hole from Step 2.

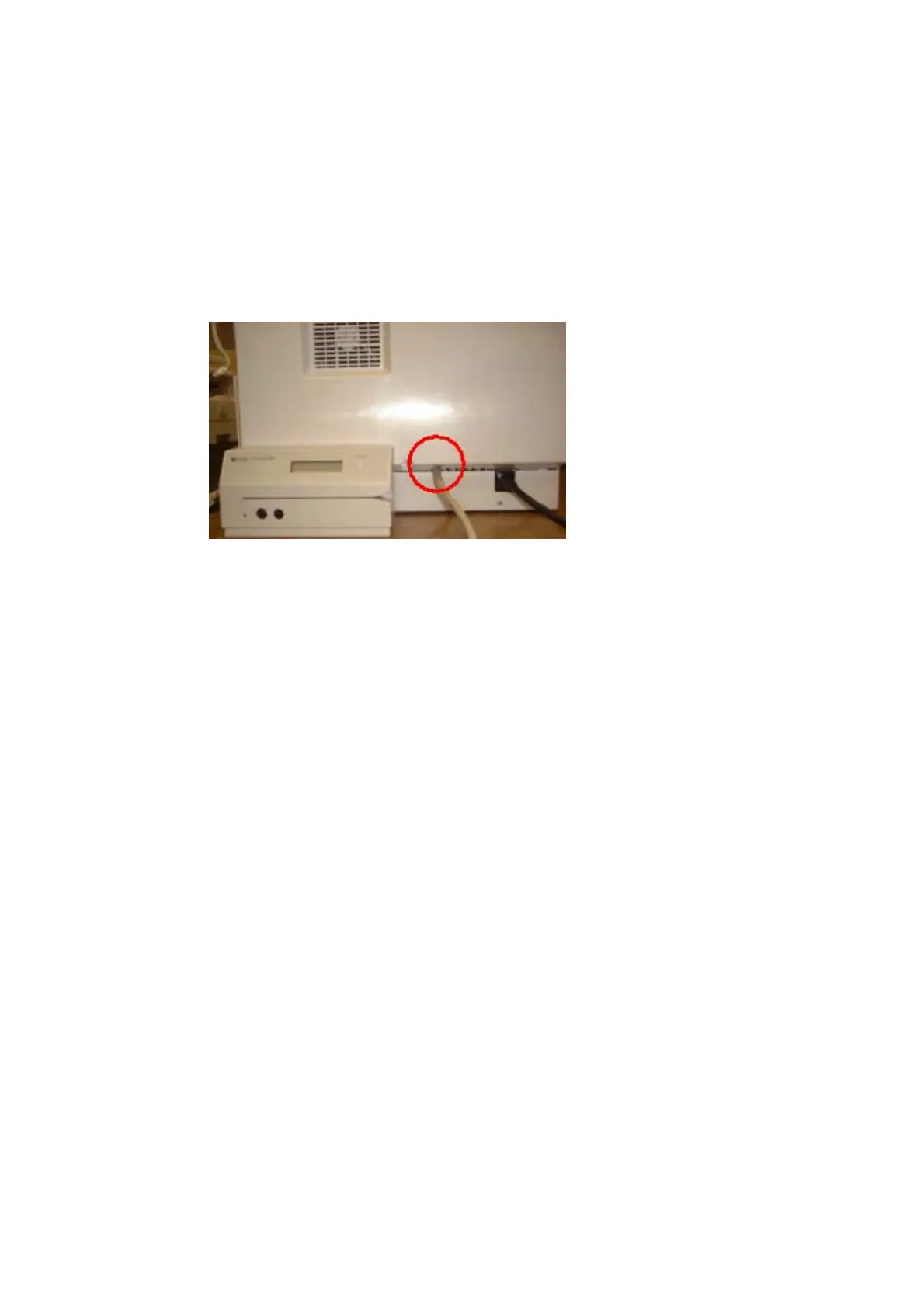

Example
