LCT INSTALLATION
SM 3-15 B089/B093
Installation

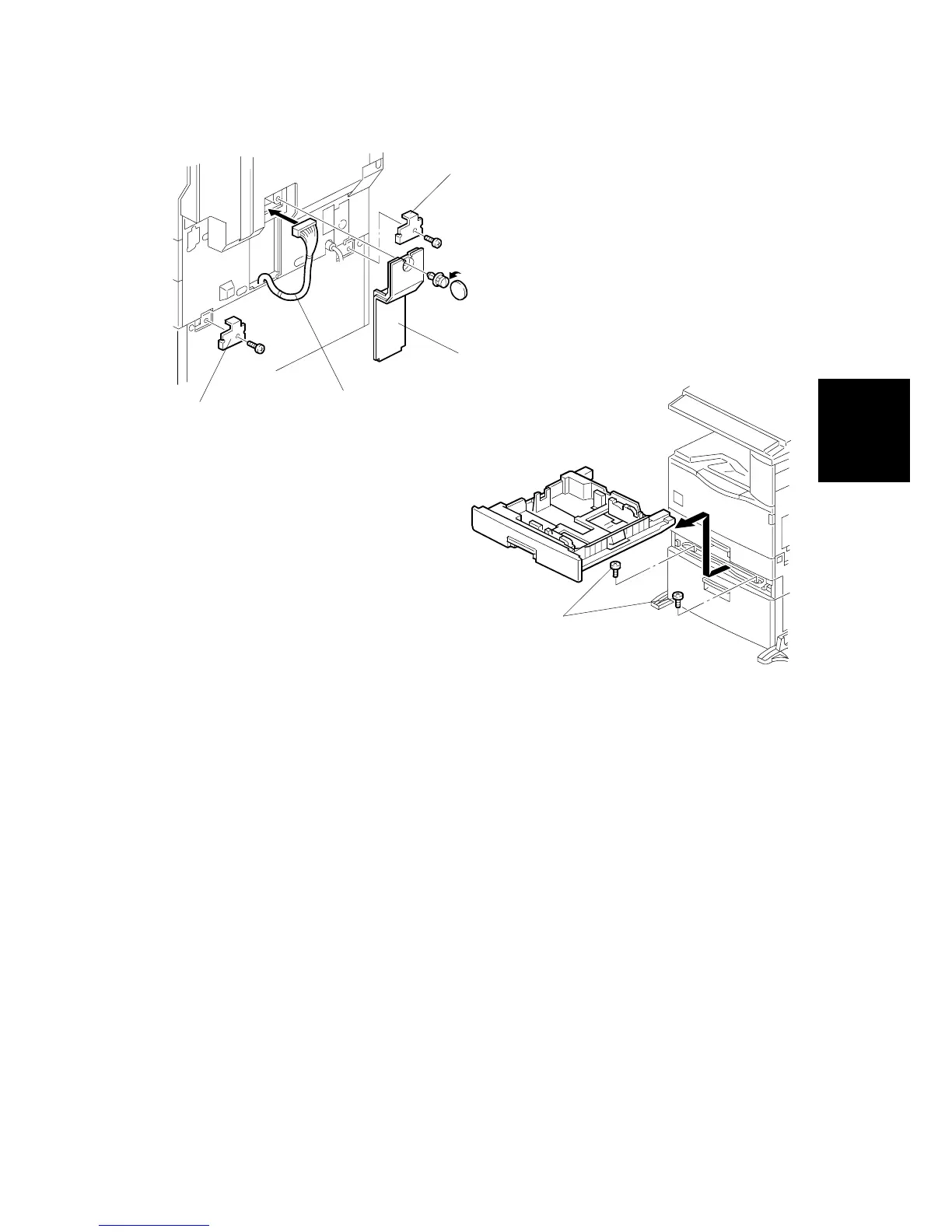

3. Remove the connector cover [A] ( x 1).
4. Connect the cable [B] to the copier, as shown.
5. Attach a securing bracket [C] to each side of the LCT, as shown ( x 1 each).
6. Re-install the connector cover.
7. Remove the 2nd paper tray and secure the LCT [D] ( x 2).
B391I504.WMF
B391I501.WMF
[A]
[B]
[C]
[C]
[D]
To Next Page
