SERVICE PROGRAM MODE
SM 4-115 B089/B093
Service
Tables

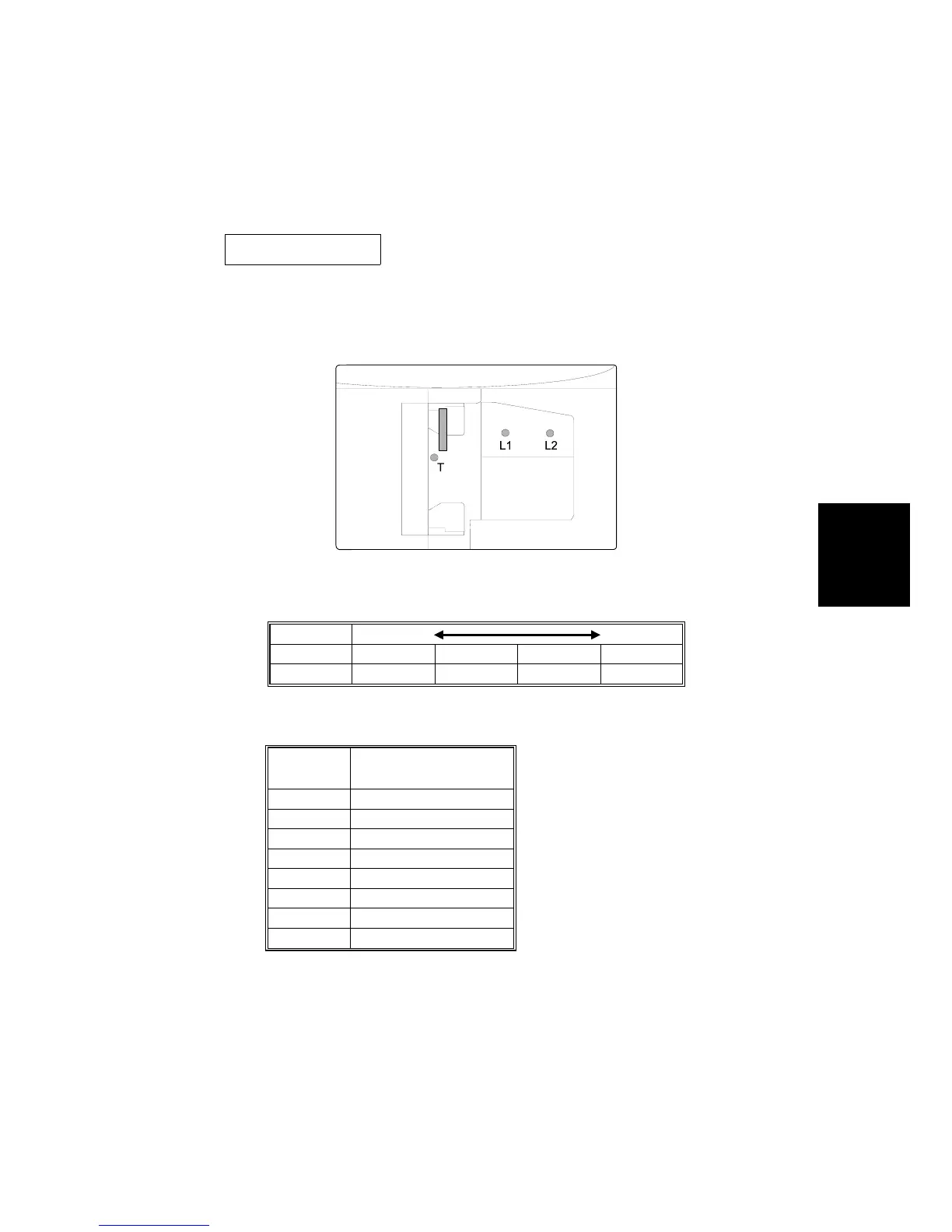

4.2.10 DF APS SENSOR OUTPUT DISPLAY (SP6901)
When open this SP, a small box will be displayed on the SP mode screen with a
series of 0’s and 1’s. The meaning of the display is as follows.
0 0 0 0 0 0 0 0
Bit 7 6 5 4 3 2 1 0
1 = Paper detected
illustration to be changed
Large Small
W1 0 0 1 1
W2 0 1 0 1
Bit Description
7 Not Used
6 Not Used
5 W1
4 W2
3 L1
2 L2
1 L3
0 Not Used
W1
W2
B089S909.WMF
