Ricoh B089 - Shift Motor; Stapler Motor; Upper Transport Motor and Exit Motor

1,000 Sheet
Finisher
B408
MOTORS
SM 17-3 B408

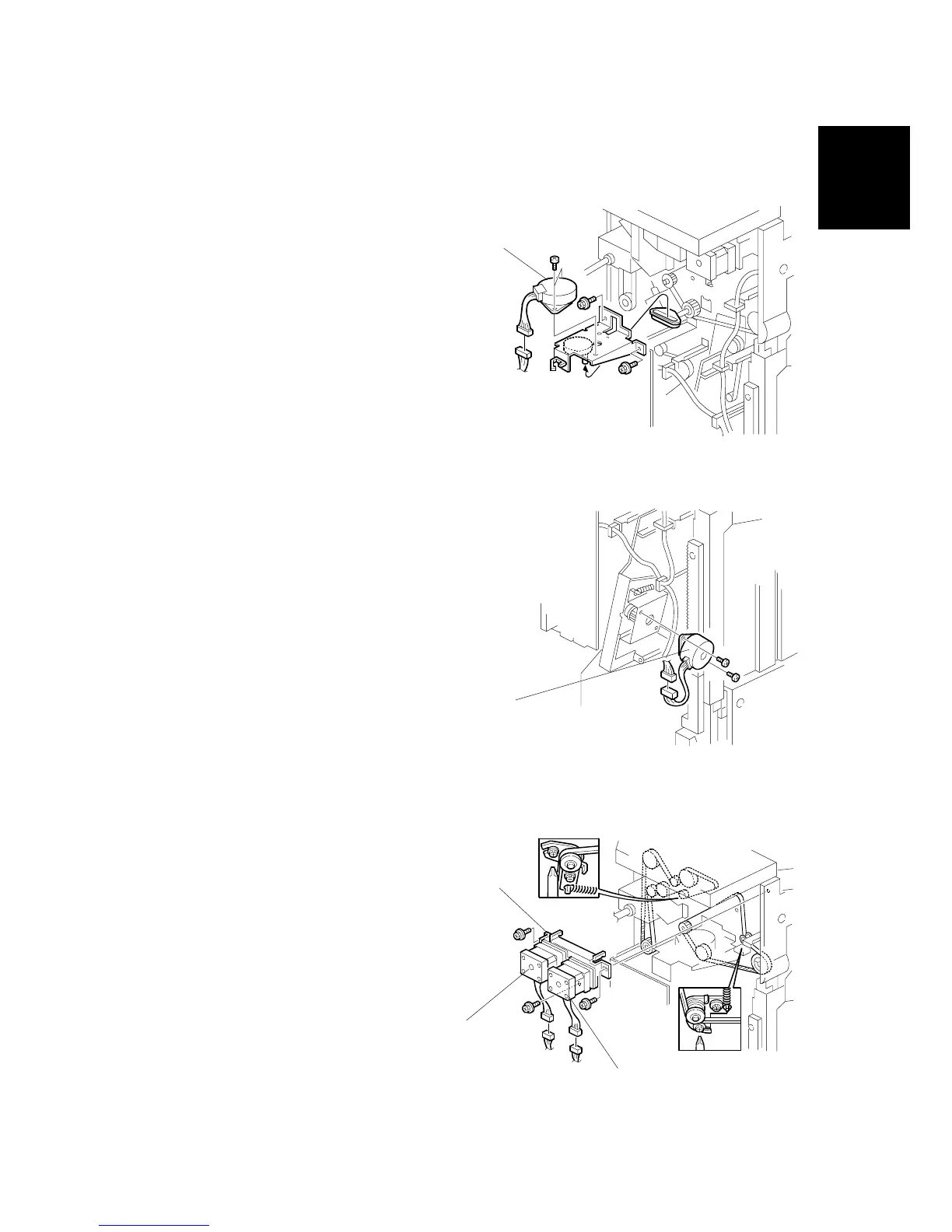

1.3 MOTORS
1.3.1 SHIFT MOTOR
1. Rear cover (☛1.1)
2. Shift motor [A] (! x 2, " x 1)
1.3.2 STAPLER MOTOR
1. Rear cover (☛1.1)
2. Stapler motor [B] (! x 2, " x 1)
1.3.3 UPPER TRANSPORT MOTOR AND EXIT MOTOR
1. Rear cover (☛1.1)
2. Motor assembly [C] (! x 4, " x 2)
3. Upper transport motor [D] (! x 4)
4. Exit motor [E] (! x 4)
B408R123.WMF
B408R124.WMF
B408R112.WMF
[A]
[B]
[C]
[D]
[E]
