Ricoh B089 - Controller Board; Pcbs and Other Items

PCBS AND OTHER ITEMS
SM 6-33 B089/B093
Replacement
Adjustment
6.7 PCBS AND OTHER ITEMS
6.7.1 CONTROLLER BOARD

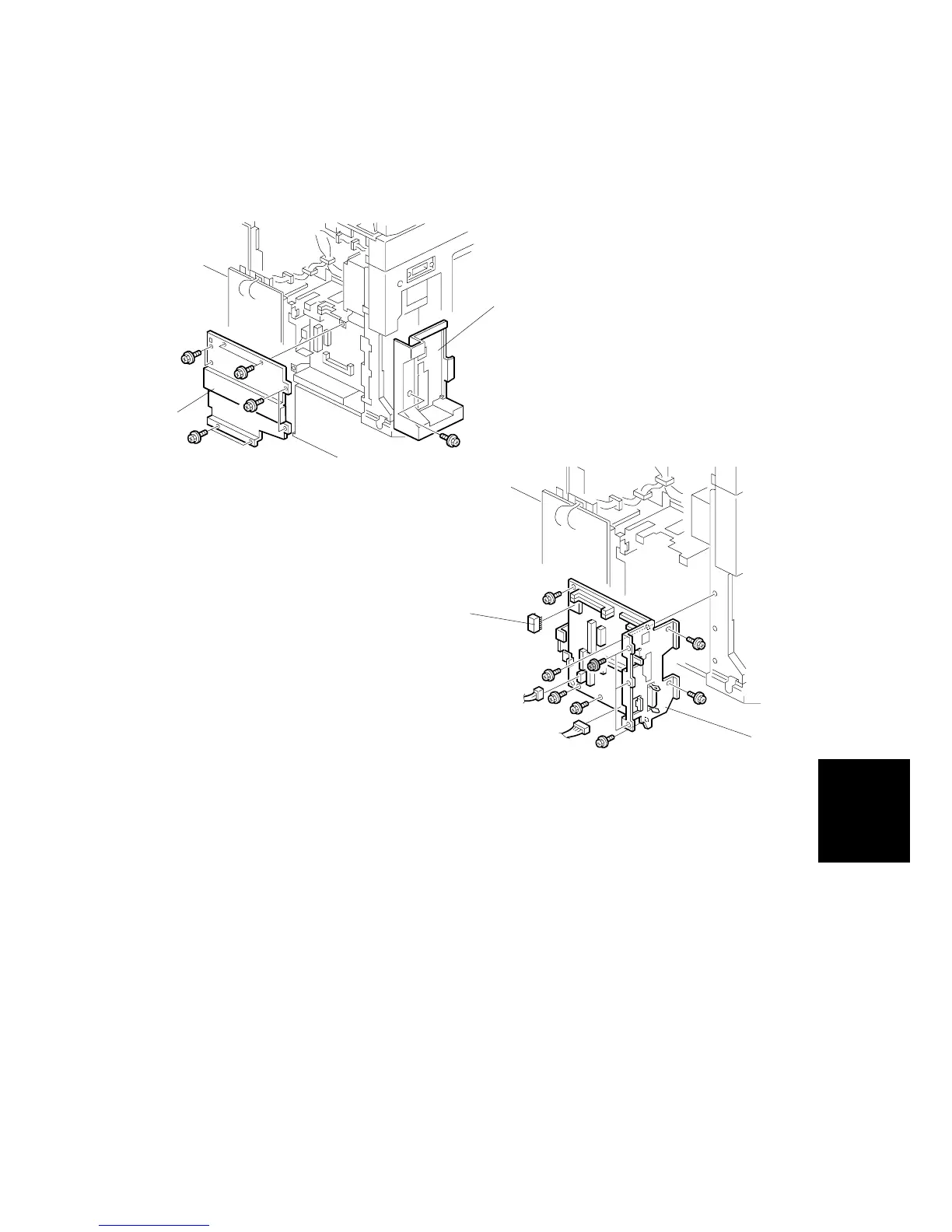

1. Remove the rear cover. (!B022 service manual, 6.6.3)
2. Remove the optional finisher if it has been installed.
3. Remove the application cover [A] (1 screw).
4. Remove the shield plate [B] (8 screws) or the optional fax unit if it has been
installed.
5. Remove the controller board [C] ( x 2,  x 10).
6. Remove the NVRAM [D], DIMM (printer/scanner, memory, etc), and printer
options from the old controller board and put them on the new controller board.
B089R904.WMF
B089R952.WMF
[A]
[B]
[C]
[D]
