Ricoh B089 - Relay Sensors

PAPER FEED
B089/B093 6-32 SM

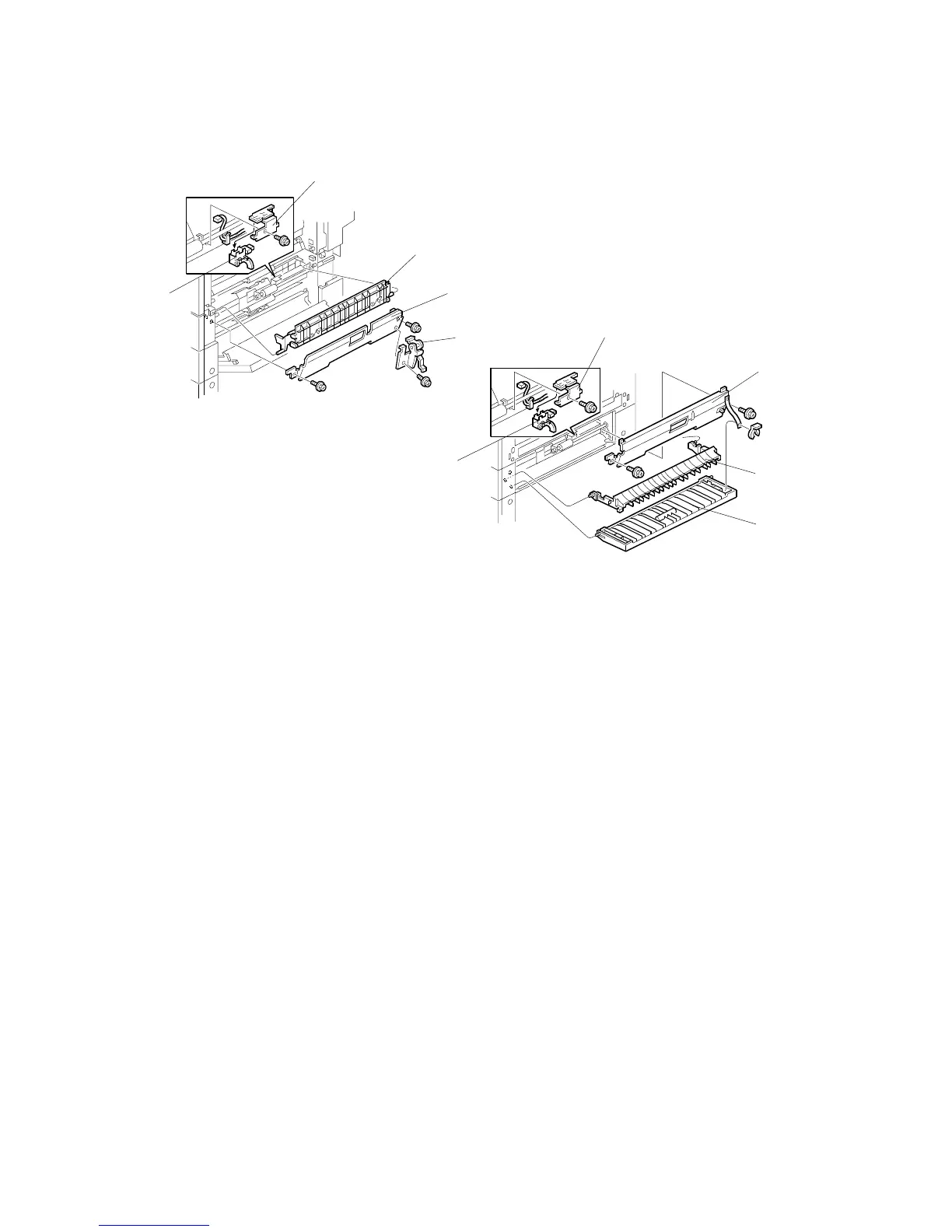

6.6.10 RELAY SENSORS
Upper Relay Sensor
1. Remove the right cover. (! 6.4.2)
2. Remove the lower right cover. (! 6.6.6)
3. Remove the guide plate [A].
4. Remove the bracket [B] (1 screw).
5. Remove the guide plate [C] (2 screws).
6. Remove the sensor bracket [D] (1 screw).
7. Replace the upper relay sensor [E] (1 connector).
Lower Relay Sensor
1. Remove the right lower door [F] (1 clip).
2. Remove the guide plate [G].
3. Remove the guide plate [H] (2 screws).
4. Remove the sensor bracket [I] (1 screw).
5. Replace the lower relay sensor [J] (1 connector).
B027R719.WMF
B027R720.WMF
[A]
[B]
[C]
[D]
[E]
[F]
[G]
[H]
[I]
[J]
