INTERCHANGE UNIT INSTALLATION
SM 3-23 B089/B093
Installation
3.6.2 INSTALLATION PROCEDURE
CAUTION
Unplug the copier power cord before starting the following procedure.

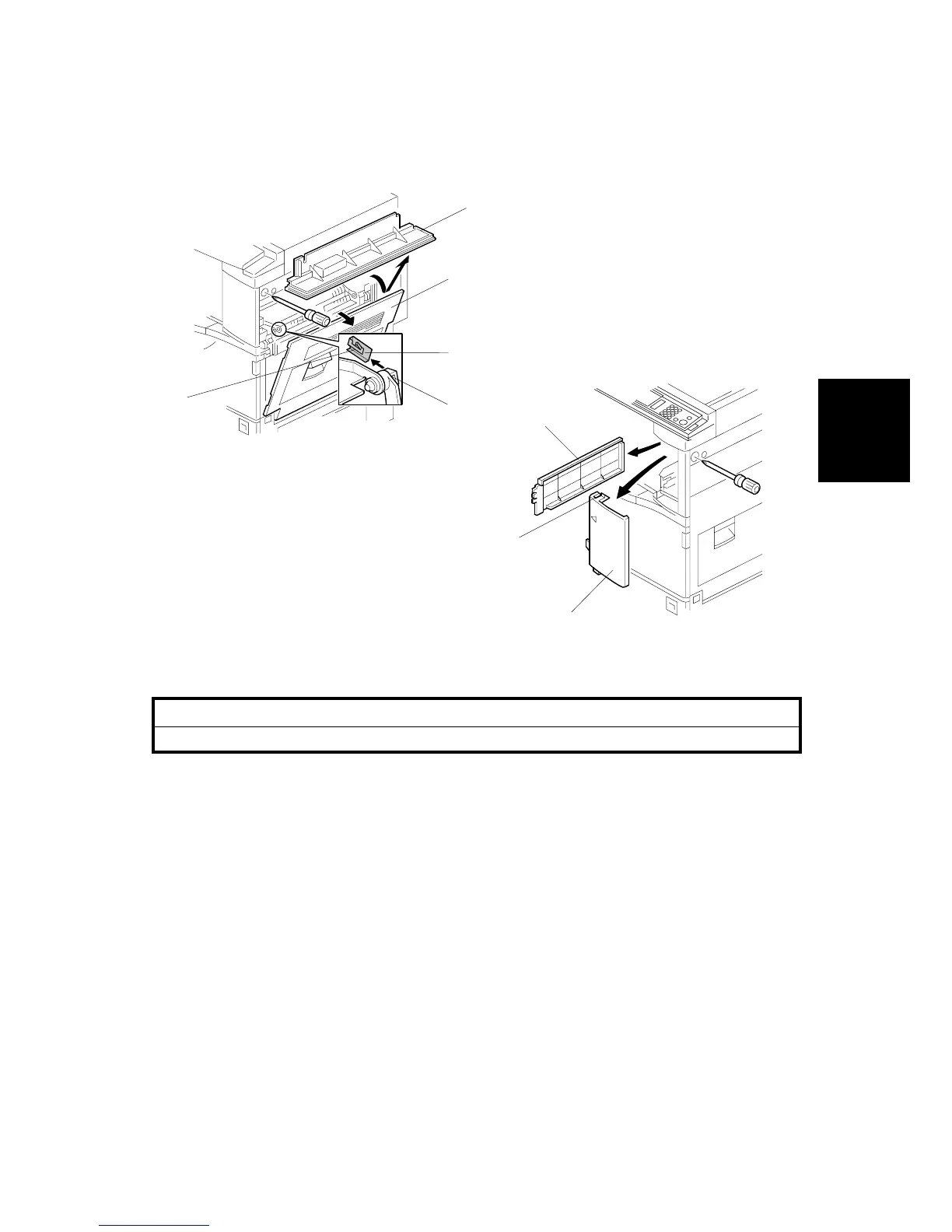

1. Remove all tapes.
2. Open the right cover [A] of the copier.
3. Open cover [B]
4. Remove the metal clip [C].
NOTE: To remove the clip, push the small tab [D] on the clip into the slot [E],
then the clip can be removed.
5. Remove the cover [B].
If the optional 1-bin tray unit (B413) will be installed, do steps 6 and 7.
6. Loosen the screw, push down tab [F] with a screwdriver, and remove the front
right cover [G].
7. Slide out the exit cover [H].
