TRAY HEATER (OPTIONAL PAPER TRAY UNIT)
B089/B093 3-56 SM

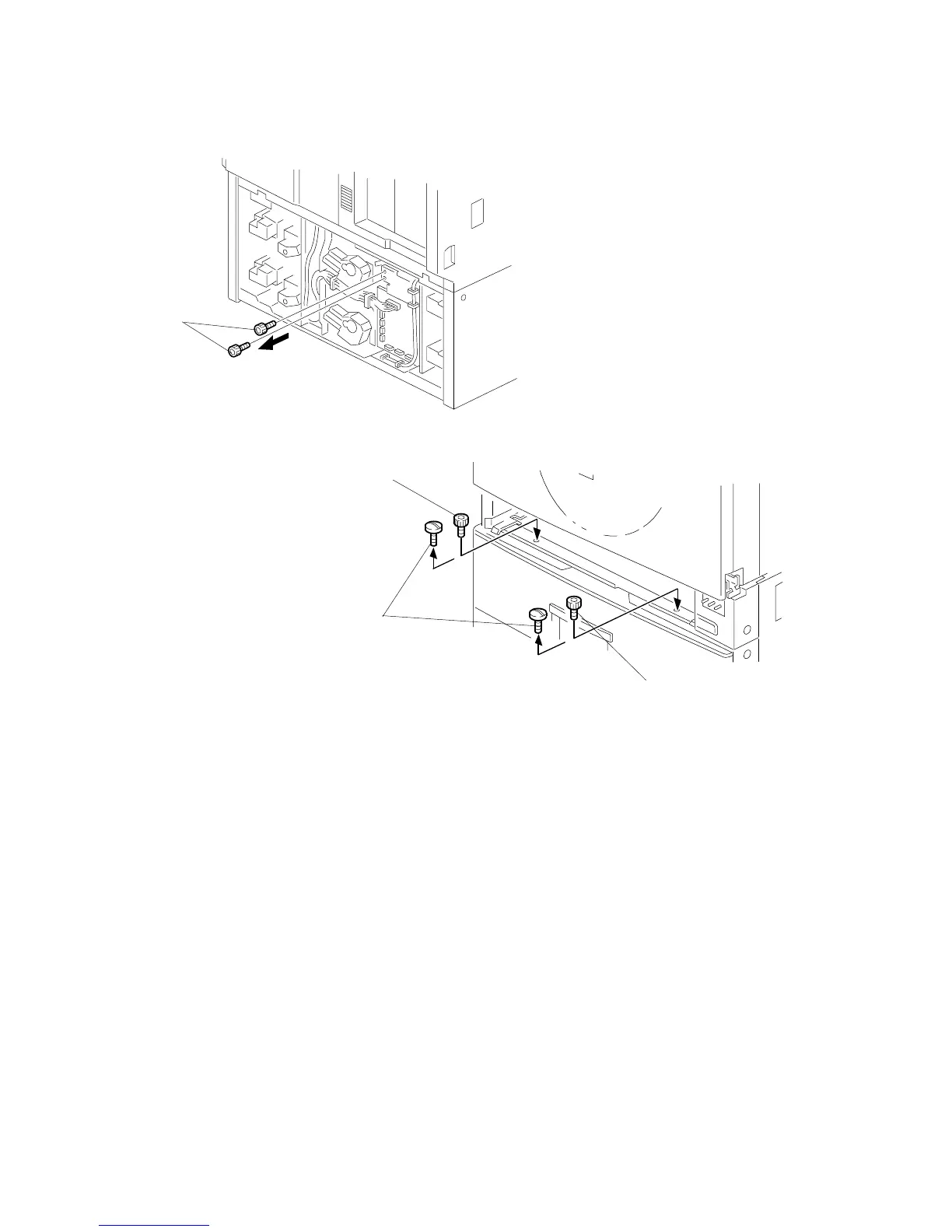

11. Remove two screws [A] from the rear side of the paper feed unit.
12. Reinstall the rear cover for the optional paper tray unit.
13. Reinstall the two paper trays into the optional paper tray unit.
14. Remove the 2nd paper tray of the copier.
15. Remove two screws [B] and install the screws [C] which were removed in step
12.
16. Reinstall the 2nd paper tray of the copier.
B089I508.WMF
B089I554.WMF
[A]
[B]
[C]
[C]
To Next Page
