Ricoh J-P2 - By-Pass Feed Clutch; Tray Lift Motor

17 January, 2003 PAPER FEED
3-19
Replacement
Adjustment

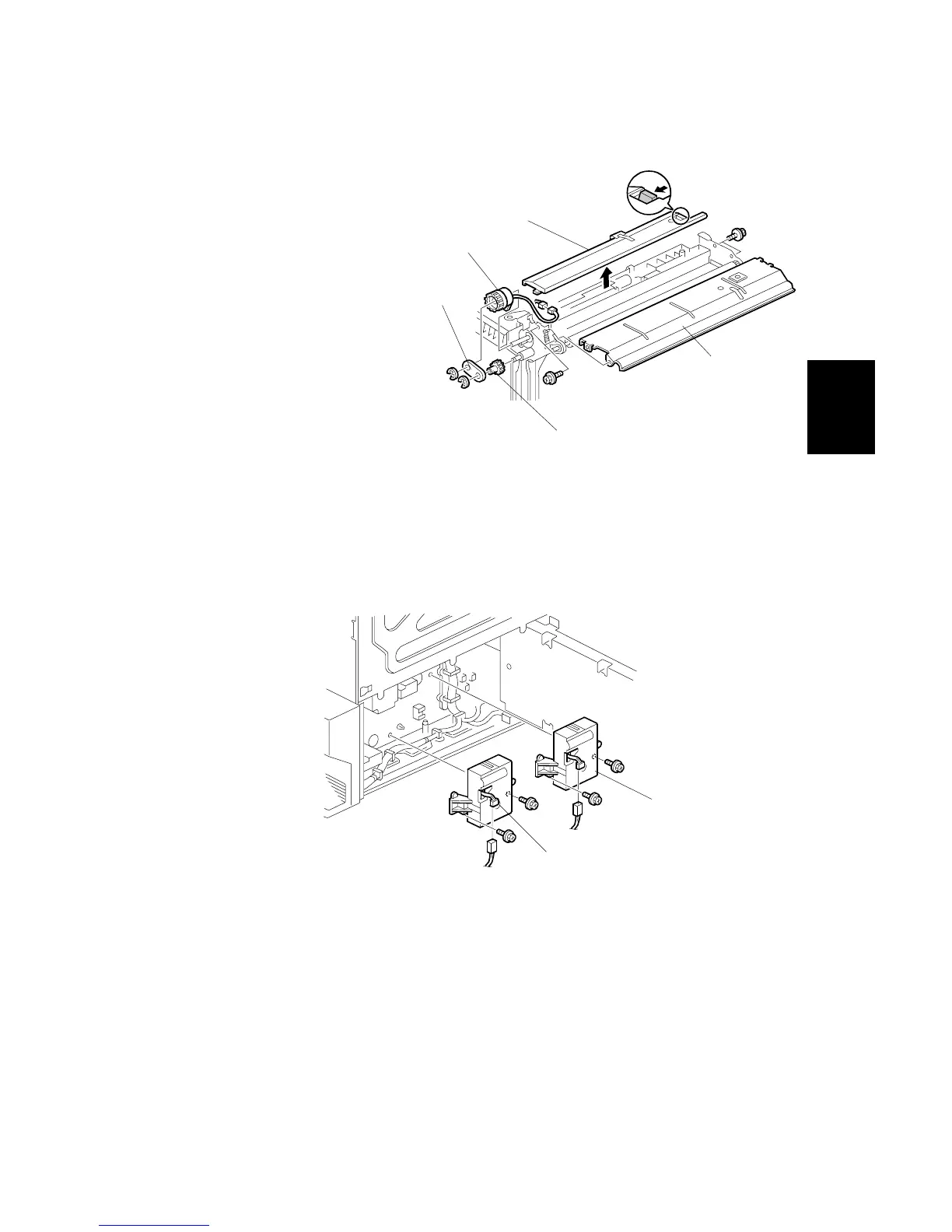

3.6.7 BY-PASS FEED CLUTCH
1. Right door unit (☛ 3.6.4)
2. By-pass tray cover [A]
(! x 1, 1 hook)
3. Loosen the screw on the right
door latch.
4. Turn the latch in the opposite
direction.
5. Upper guide plate [B] (! x 4)
6. Support plate [C] ($ x 2)
7. Relay gear [D] (1 hook)
8. By-pass feed clutch [E] (" x 1)
3.6.8 TRAY LIFT MOTOR
1. Rear cover (☛ 3.3)
2. Swing out the high voltage supply unit. (☛ 3.10.2)
3. Tray lift motors (tray 1 [A], tray 2 [B]) (! x 2, " x 1)
G080R931.WMF
G080R932.WMF
[A]
[B]
[D]
[C]
[A]
[B]
[E]
