Technical Bulletin PAGE: 3/3

Model: Taurus-C1a/C1b (D074/D075) Date: 02-Feb-12 No.: RD074042

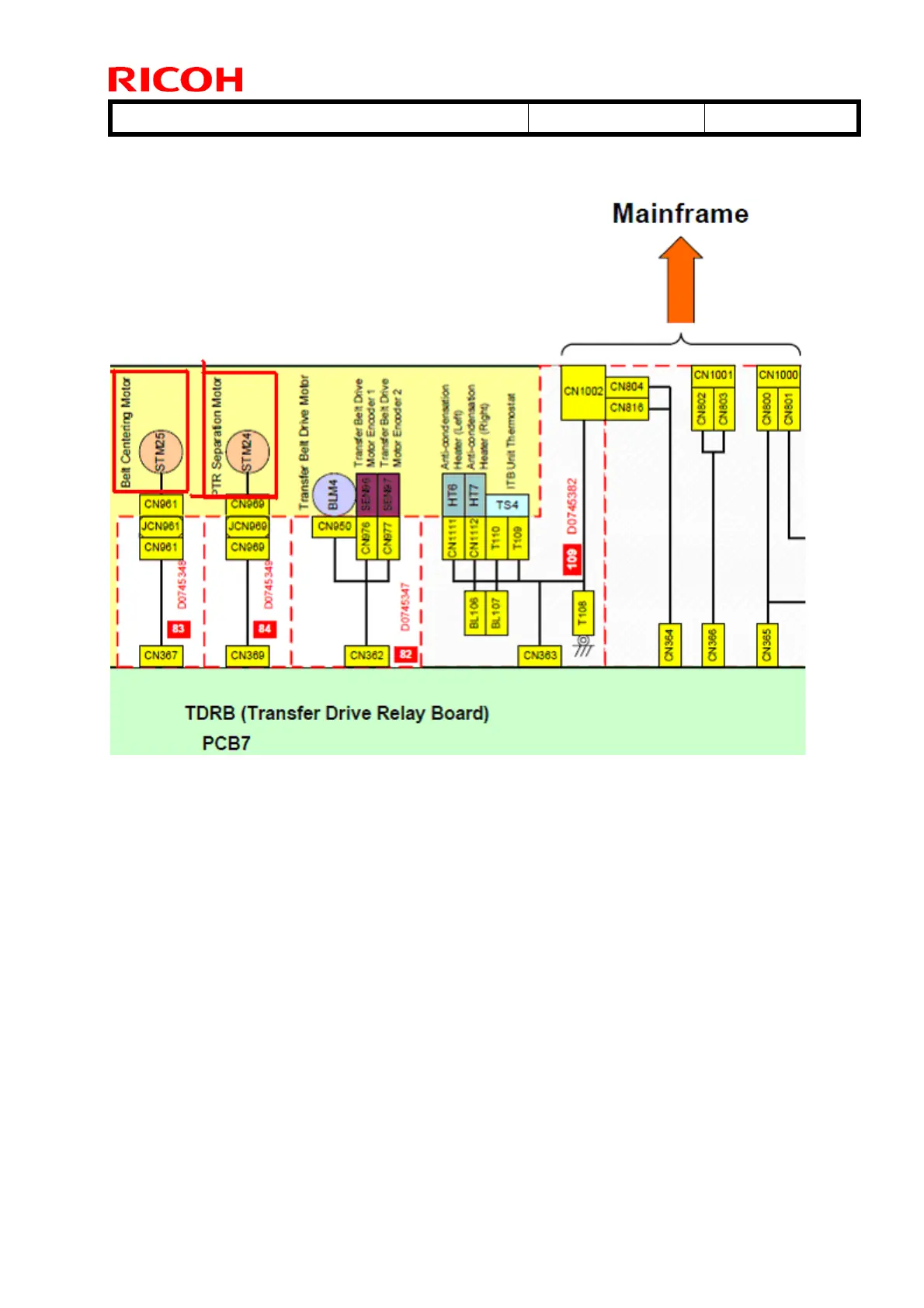

The two motors are connected to the TDRB in the ITB unit.

For details, see the service manual: 4.Replacement and Adjustments > Image Transfer

Belt (ITB) Unit > TDRB.
