T
echnical
B
ulletin PAGE: 1/4
Model:
Taurus-C1a/C1b
Date:
11-May-12
No.:
RD074063
Subject:
Procedure for Replacing the Development Roller
Seals
Prepared by:
S. Sasaki
From:
1st PP Tech Service Sec., PP Tech Service Dept.,
Classification:
Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other ( )
Action required
Service manual revision
Retrofit information
Tier 2
Please add to your field service manual the following procedures for replacing the
development roller seals.
! D0743343 SEAL:DEVELOPMENT ROLLER:FRONT
! D0743344 SEAL:DEVELOPMENT ROLLER:REAR
Procedure
Replacing the FRONT Seal (D0743343: SEAL:DEVELOPMENT ROLLER:FRONT)
1. Pull out the PCDU according to the procedure in the service manual in the section:
4. Replacement and Adjustments > Common Procedures > Removing PCDUs

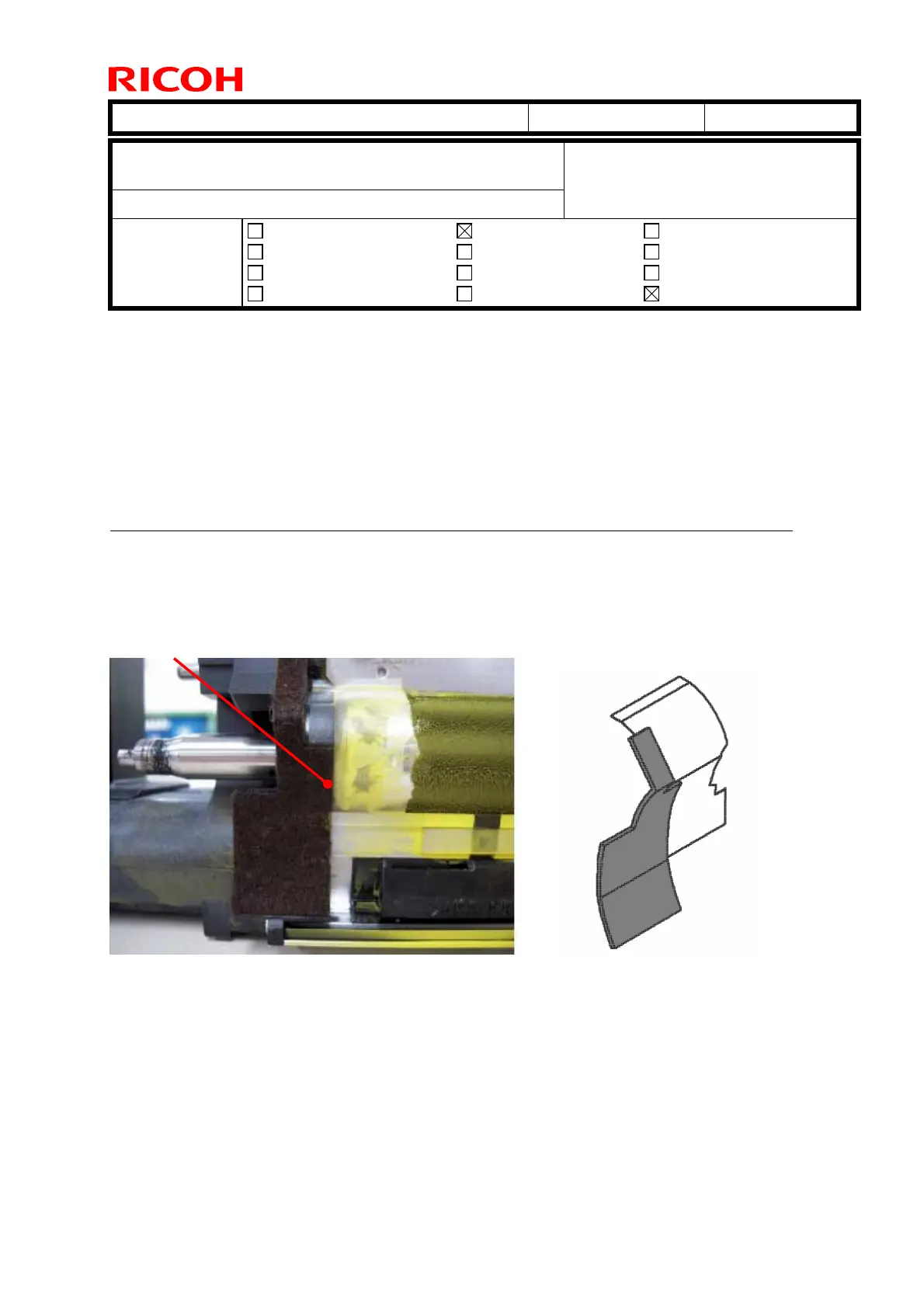

2. Remove the old seal [A] and clean the surface of the area where the seal was attached.
Note
The seal consists of two parts; the black part and the transparent part. (See the diagram
above.) Make sure to remove the whole seal.
[A]
