3 Set-up and function
3.1 Overview
3.1.1 Overview - Multilift I

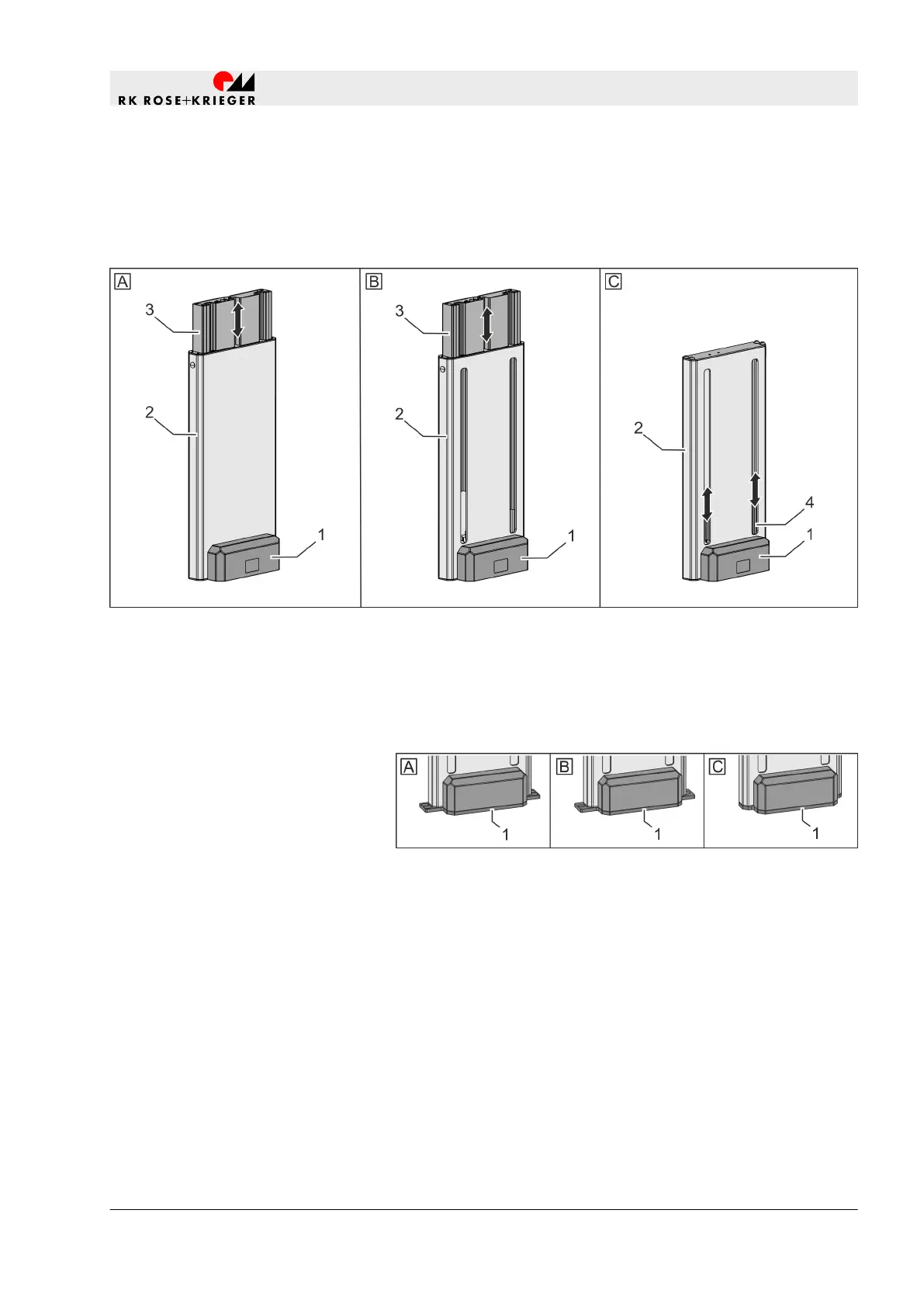

Fig. 3: Overview of Multilift I
A Multilift I without milled slot (Mono/Synchro)
B Multilift I with milled slot (Mono/Synchro)
C Multilift I with internal carriage (Mono/Synchro)
1 Motor housing
2 External profile
3 Internal profile
4 Internal carriage
Fig. 4: Base plate
A Base plate with fixing plates (I)
B Base plate with fixing plates (K)
C Base plate flush (M)
For applications involving tensile loads and in synchronised
groups, RK Rose+Krieger GmbH a base plate (Fig. 4), installed on
the Multilift by , must be used in addition.
Base plate
Set-up and function
Overview > Overview - Multilift I
