3.5.1 Electrical connection - Multilift I (Mono)

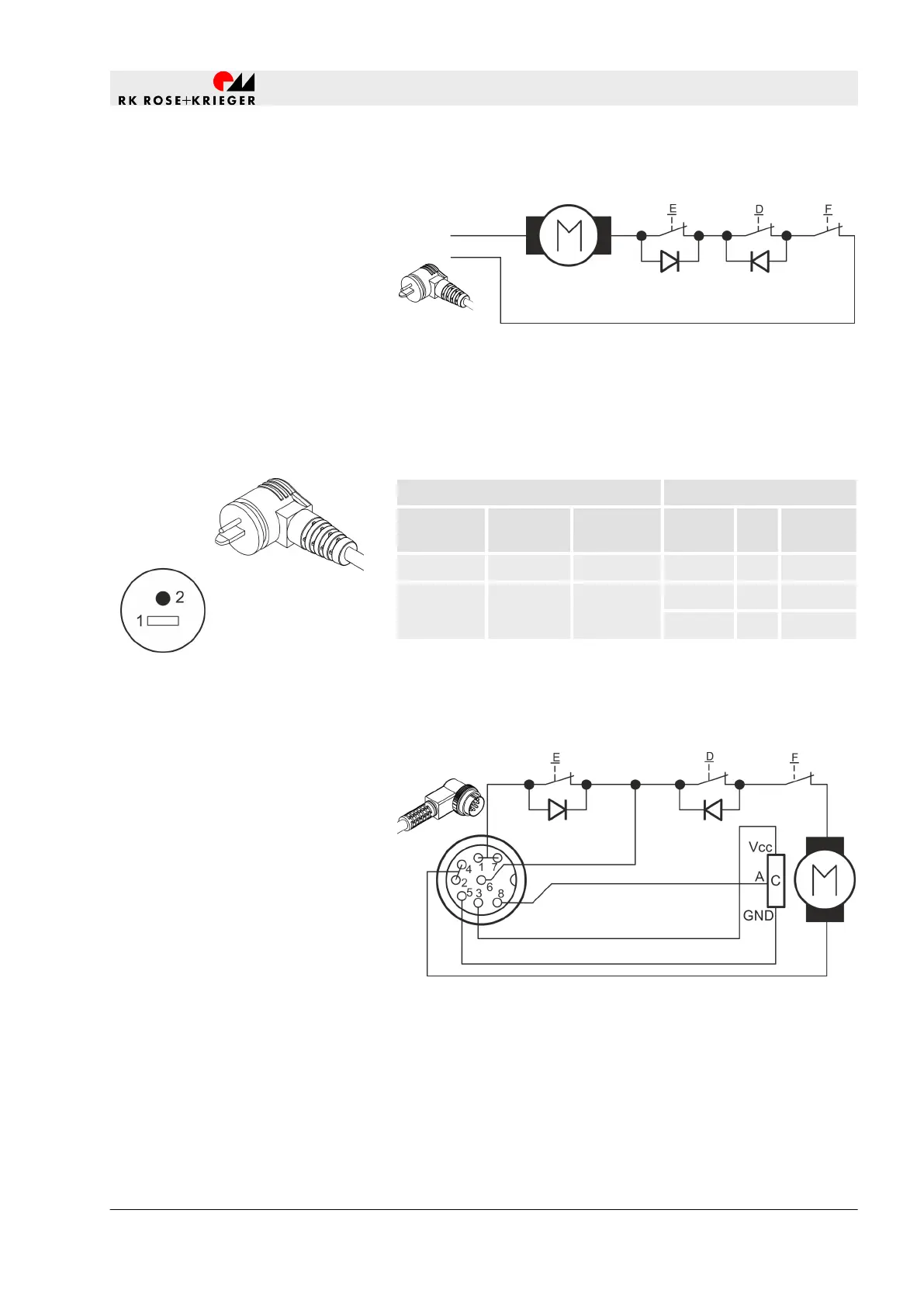

Fig. 15: Circuit diagram, Multilift I Mono

D Top limit switch

E Bottom limit switch

F Safety limit switch

Direction of rotation Current

Polarity + Polarity - Direction Load

[N]

I [A] U [V DC]

Pin 1 Pin 2 Retraction 0 1 24

Pin 2 Pin 1 Extension 1000 3 24

3000* 4.5 24

* Load capacity applies to the version with F

max

= 3000 N only

3.5.2 Electrical connection - Multilift I (Synchro)

Fig. 17: Circuit diagram, Multilift I Synchro

A Output hall sensor

C Hall sensor

D Top limit switch

E Bottom limit switch

F Safety limit switch

Wiring

Plug connector pin assignment

Fig. 16: Multilift I Mono plug connector

pin assignment

Hall sensor and wiring

Set-up and function

Electrical connection to a controller provided by the operator > Electrical connection - Multilift I (Synchro)

20.02.2019 Lifting column Multilift I/Multilift II 95
