3.3 Optional modules
3.3.1 Top assembly plate

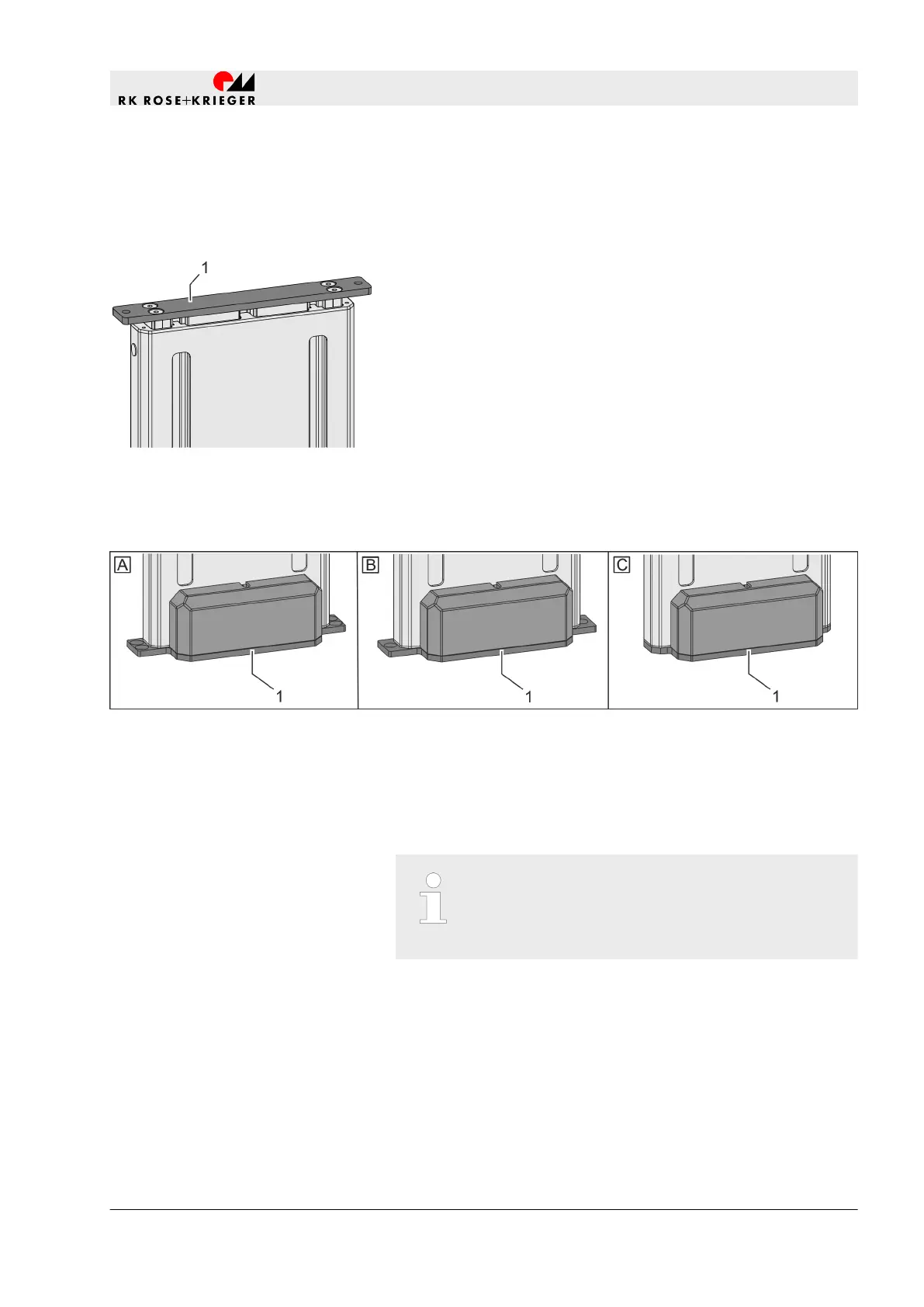

The top assembly plate (Fig. 7/1) is used as an installation aid for
fastening Multilift I and II lifting columns in the operator's construc-
tion (e.g. installation on a table frame).
The top assembly plates are found on the following versions:
n Standard
n ESD
3.3.2 Bottom assembly plate
Fig. 8: Bottom assembly plate
A Assembly plate with fixing plate (4 counterbores)
B Assembly plate with fixing plate (2 counterbores)
C Flush assembly plate
The bottom assembly plate (Fig. 8/1) is used as an installation aid
for fastening Multilift I lifting columns in the operator's construction.
For applications involving tensile loads and in
synchronised groups, a base plate (Fig. 4, Ä page85),
installed on the Multilift I lifting column by RK Rose
+Krieger GmbH, must be used.
Multilift I/II
Fig. 7: Top assembly plate (example)
Multilift I
Set-up and function
Optional modules > Bottom assembly plate
