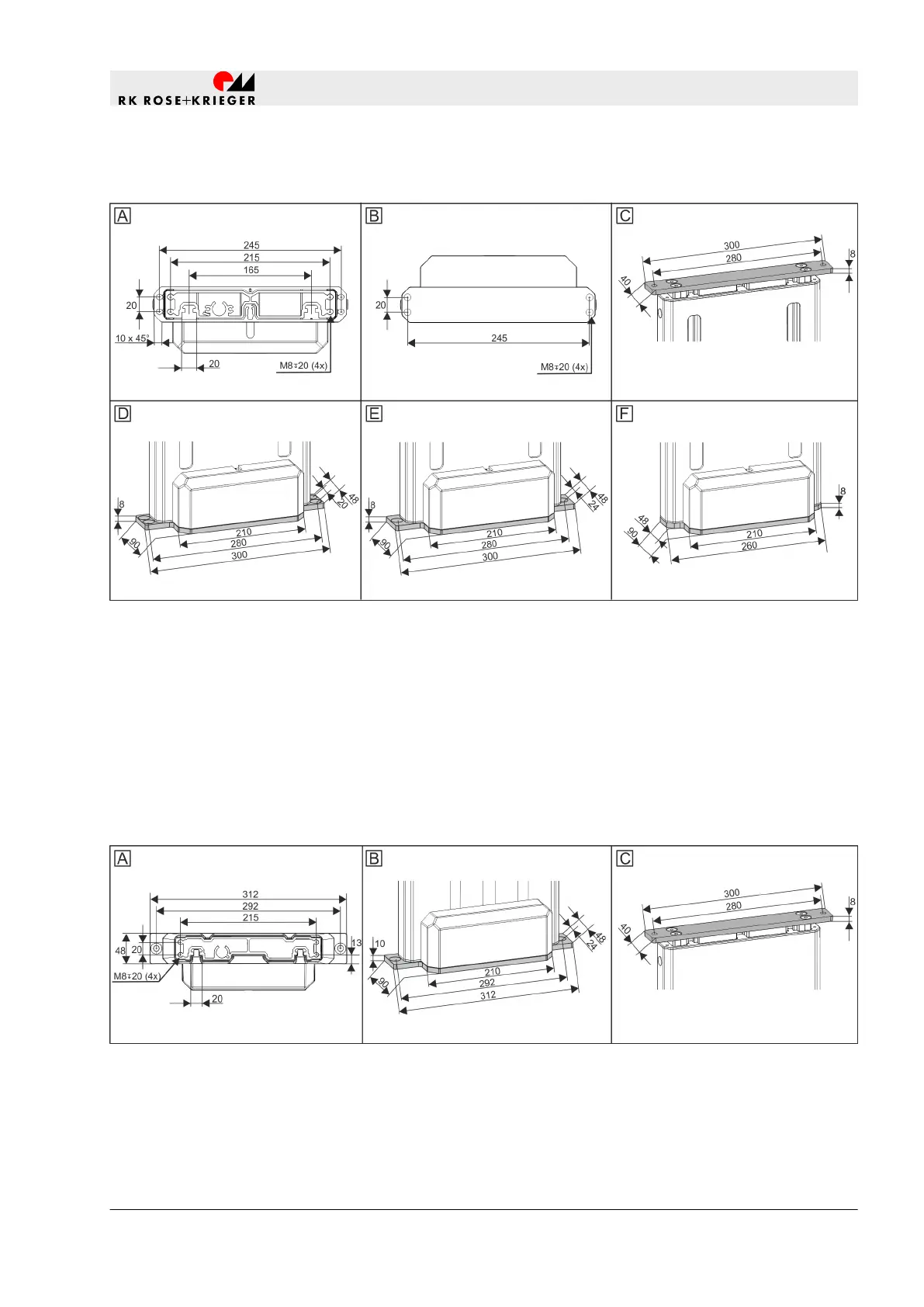

Fig. 12: Overview of interfaces/connection points - Multilift I
A Top view
B View from below
C View with top assembly plate
D View with base plate (I)
E View with base plate (K)
F View with base plate (M)
Further information:
n Assembling the internal profile Ä page 104
n Assembling the external profile
Ä page 105
Fig. 13: Overview of interfaces/connection points - Multilift II Standard/ESD/impact/clean
A Top view
B View with base plate
C View with top assembly plate
Multilift I
Multilift II Standard/ESD/impact/
clean
Set-up and function
Interfaces/connection points
20.02.2019 Lifting column Multilift I/Multilift II 93
