Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 183

Chapter 6 Configure the Redundant I/O System

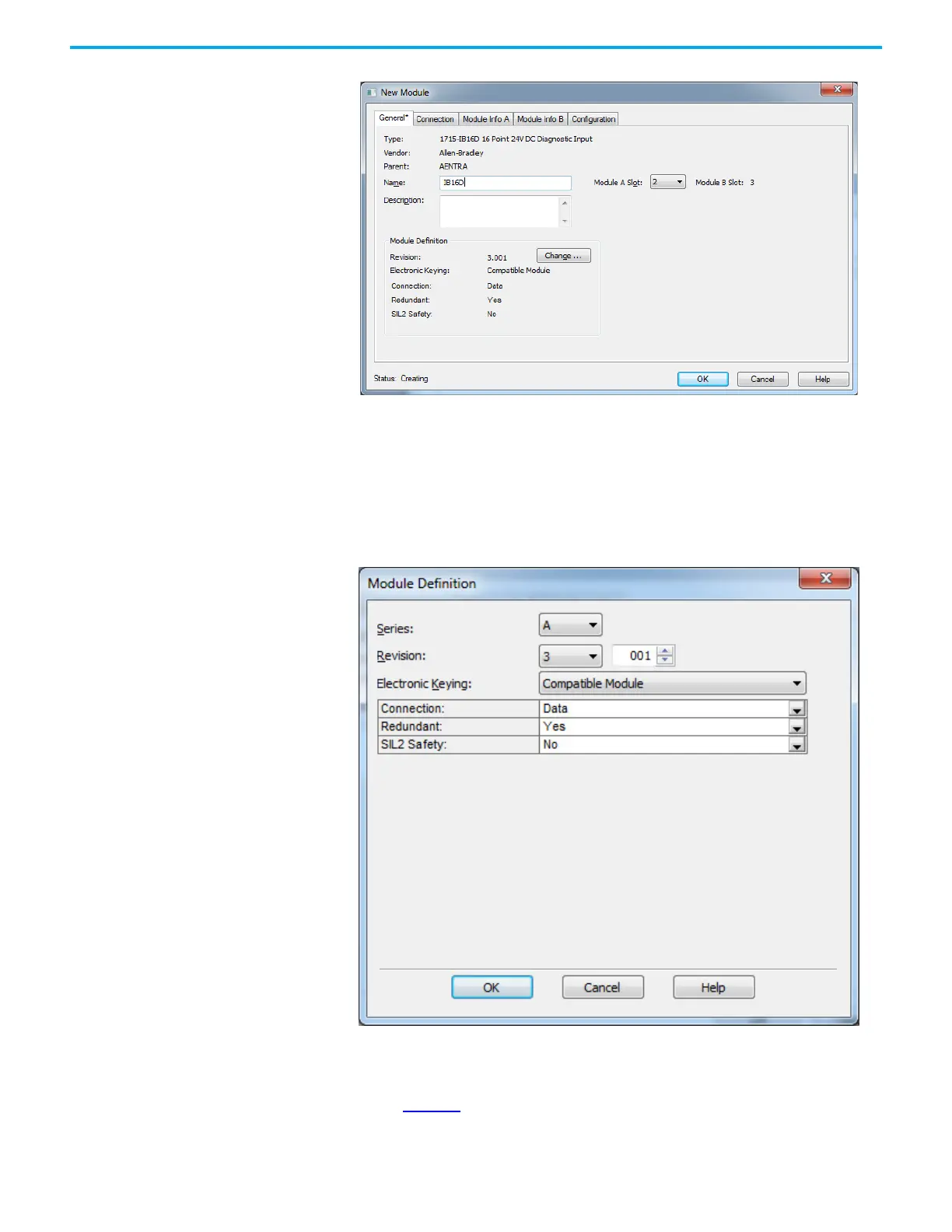

3. Enter the module name.

Notice that there are still two slot numbers that are displayed, indicating

that the module is in the default Duplex mode.

4. Click Change.

The Module Definition dialog box appears.

5. Change the module default from Redundant= Yes to Redundant=No to

run the module in Simplex mode.

See page 179

for more setup information.

6. Click OK.
