188 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020
Chapter 6 Configure the Redundant I/O System

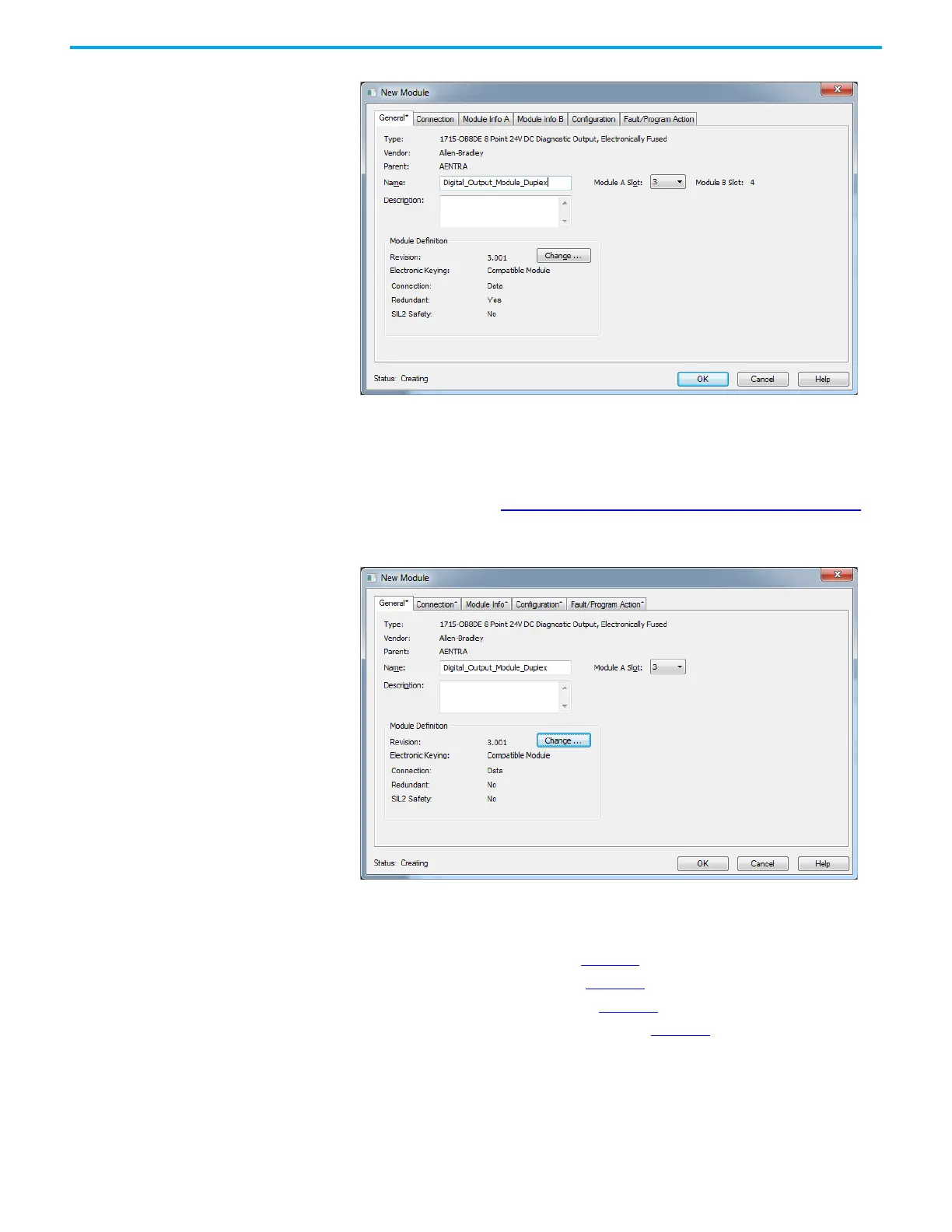

3. Enter the module name.
Notice that there are still two slot numbers that are displayed, indicating
that the module is in the default Duplex mode.
4. Click Change, see step 6 and step 7 on page 184, and step 8 on page 184
.
A new General tab appears in Simplex mode.
Notice there is now only one slot number available and Redundant is
‘No’, indicating that the module is now in Simplex mode.
5. Click the Connection tab, see page 169
.
6. Click the Module Info tab, see page 170
.
7. Click the Configuration tab, see page 186
.
8. Click the Fault/Program Action tab, see page 186
.
9. Click OK.
The I/O configuration folder of your project now looks similar to this.
