Rockwell Automation Publication 1715-UM001J-EN-P - December 2020 231

Chapter 8 Using SIL 2 Add-On Instructions with 1715 Redundant I/O Modules

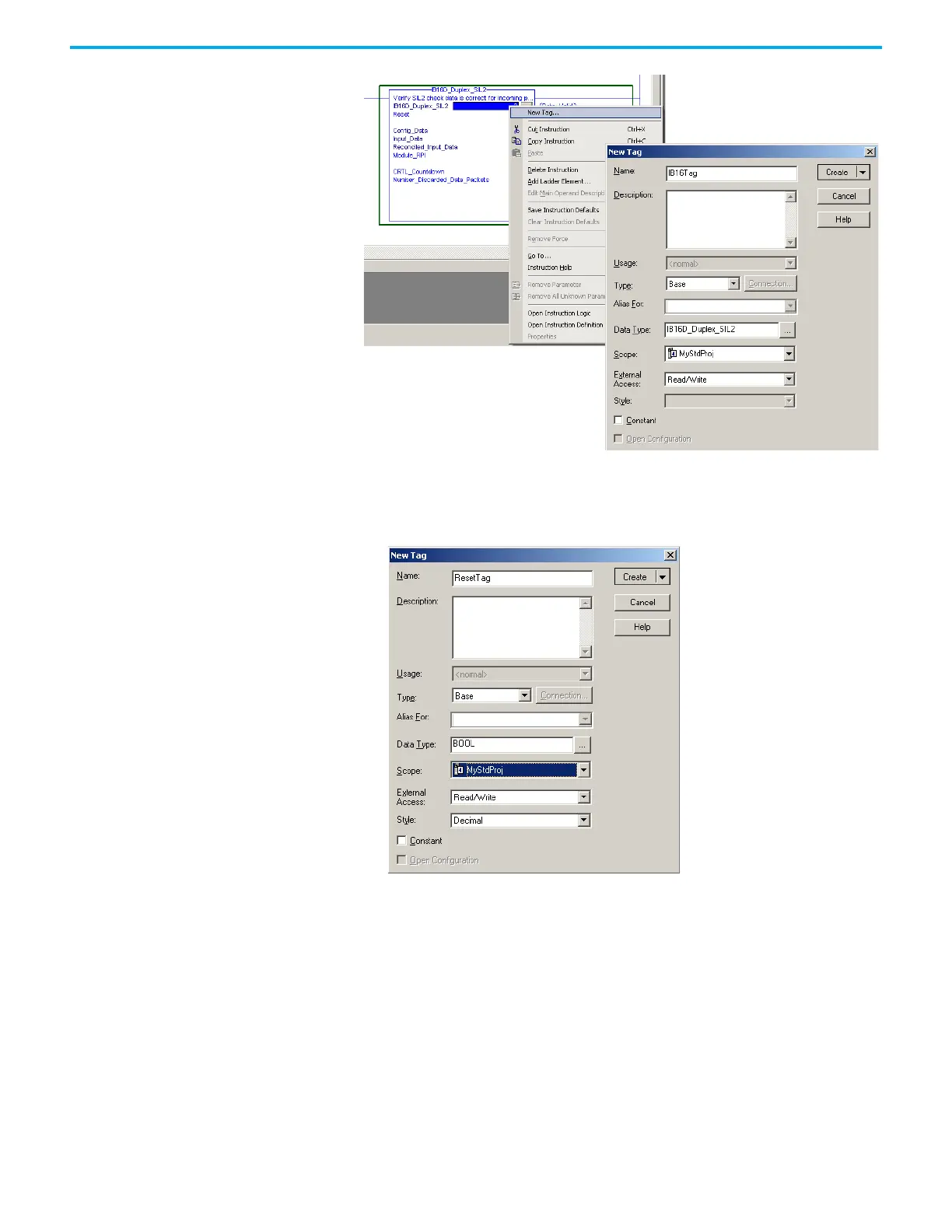

3. Create a reset tag by using the default data type and Read/Write External

Access.

The tag can be controller- or program-scoped.

4. Choose the module configuration tag.

If you have multiple modules, be sure to choose the configuration tag for

the appropriate module.
