232 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020

Chapter 8 Using SIL 2 Add-On Instructions with 1715 Redundant I/O Modules

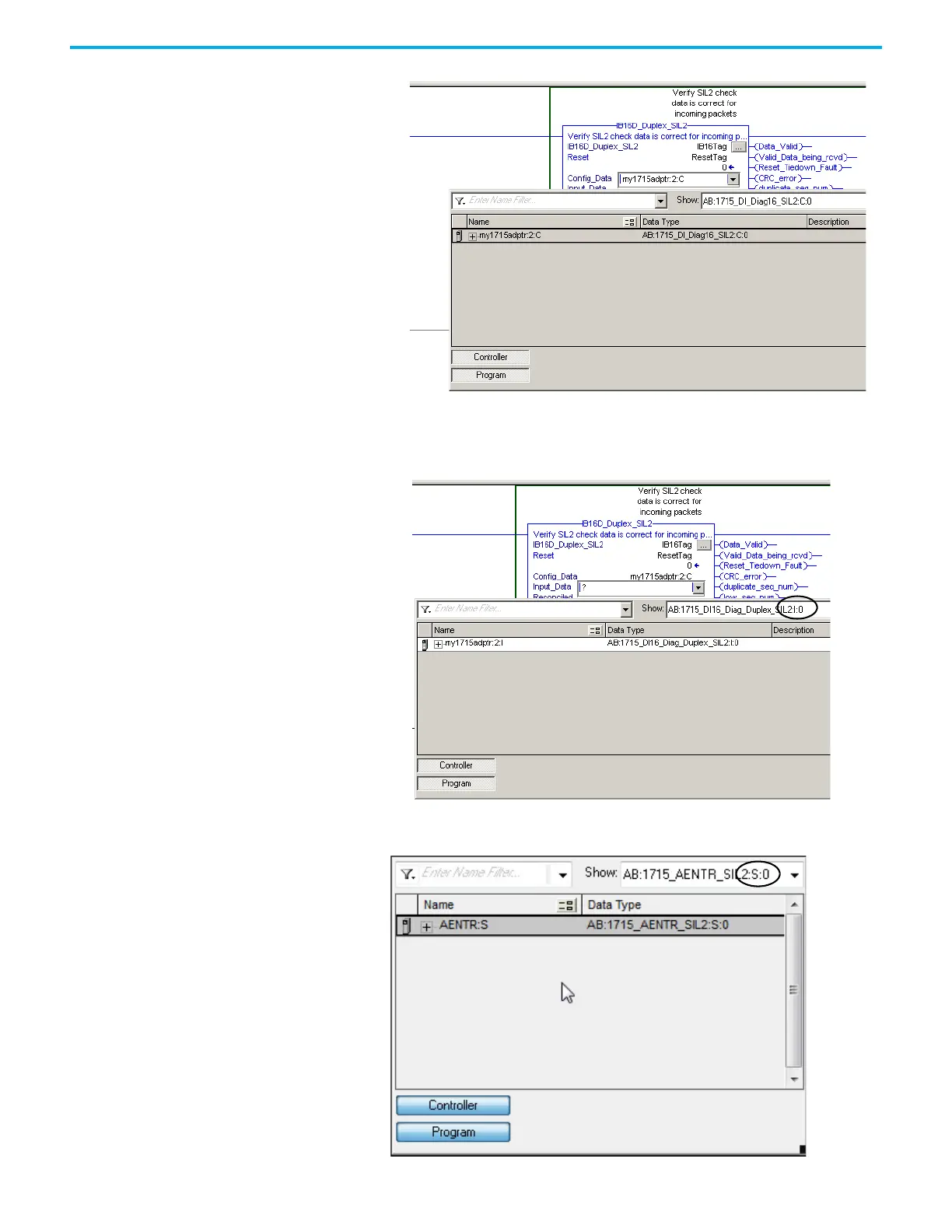

5. Choose the module input tag.

a. If you have multiple I/O modules, be sure to choose the input tag for

the appropriate module.

b. For the 1715 adapters, choose the status tag.
