92 Rockwell Automation Publication 1715-UM001J-EN-P - December 2020
Chapter 2 Installation Instructions

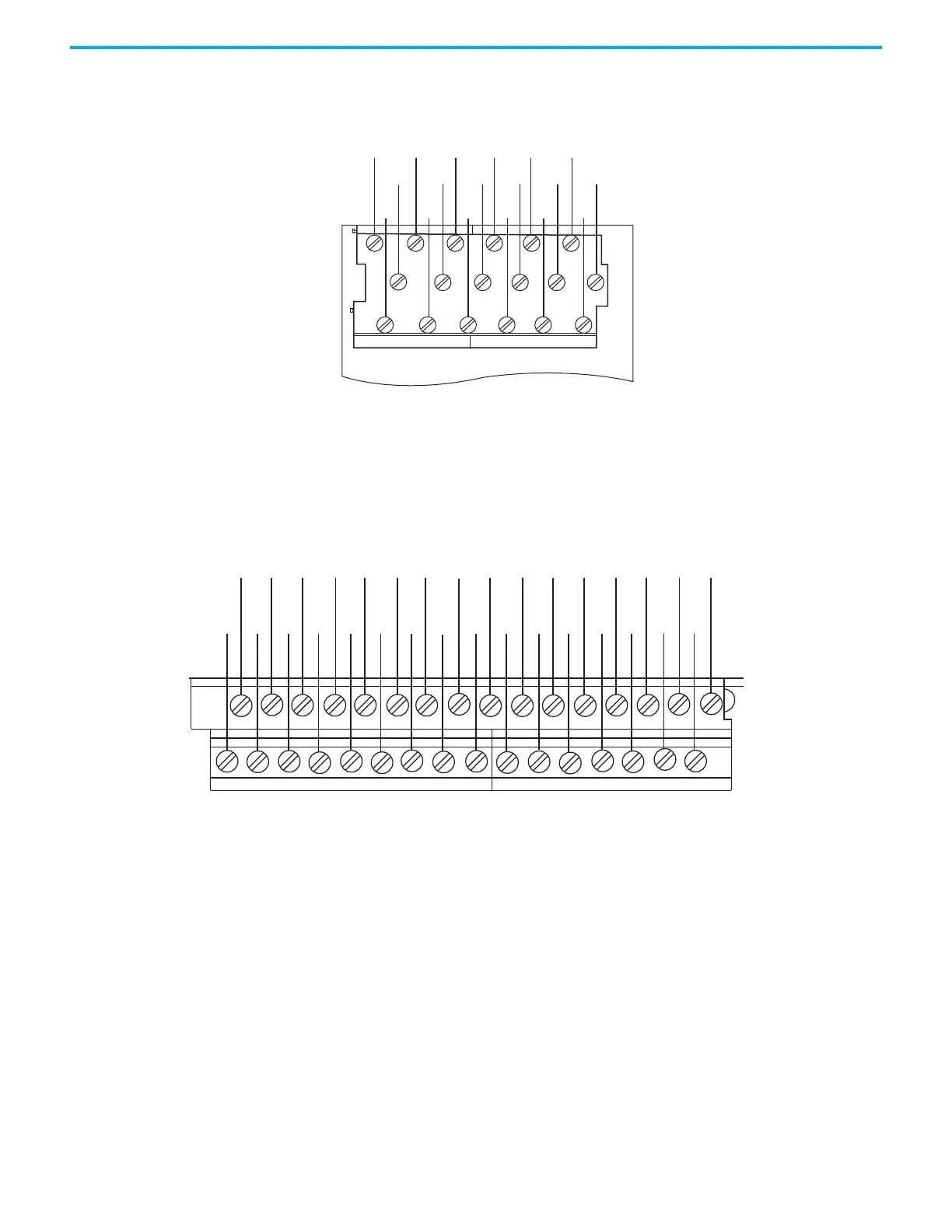

Figure 51 - Connections to 1715-TASIF16 Simplex Nonisolated Analog Input Termination Assembly-16-
channel
Apply a minimum tightening torque of 0.5 N•m (0.37 lb•ft) to the terminal
screws.
Figure 52 - Connections to 1715-TADIF16 Duplex Isolated Analog Input Termination Assembly
Apply a minimum tightening torque of 0.5 N•m (0.37 lb•ft) to the terminal
screws.
HART Secondary Master
The HART Secondary Master is a hand held monitor/controller used by field
engineers to check and reconfigure the settings of field equipment. In order
that the Rockwell modules interface and operate with this equipment an
additional 120
Ω resistor assembly is required in the connecting circuit.
OV OV CH0 CH1 CH2
CH3
CH4
CH10 CH11 CH12 CH13 CH14 CH15
CH5 CH6
CH7
CH8
CH9
TB2
TB1
CH0 - CH1 - CH2- CH3- CH4- CH5- CH6- CH7- CH8- CH9- CH10-CH11-CH12-CH13-CH14-CH15-
CH0+CH1+CH2+ CH3+CH4+CH5+CH6+CH7+ CH8+CH9+CH10+CH11+CH12+CH13+CH14+CH15+
To Next Page
