Chapter 3 GuardLogix® Controllers Logic Integration

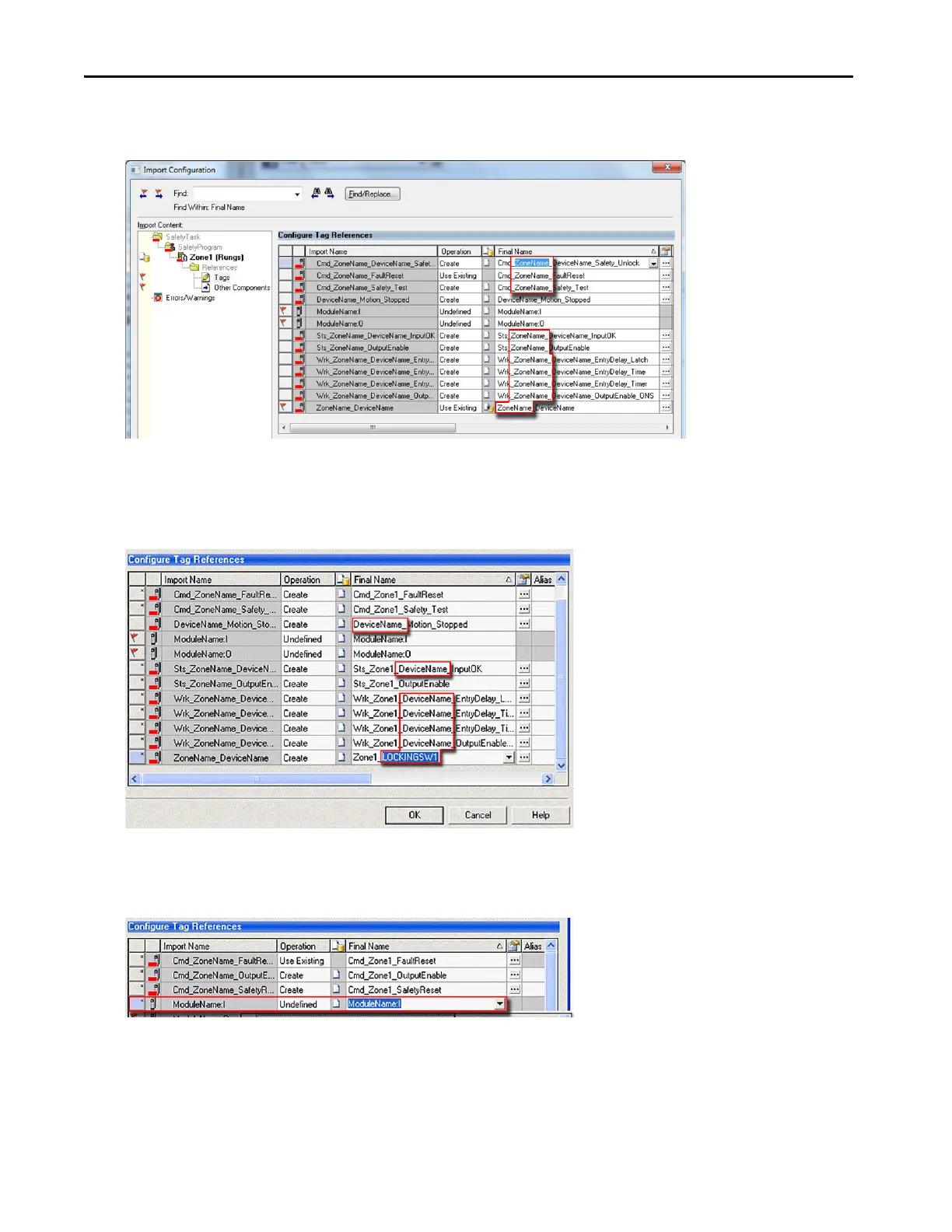

5. Type the ZoneName from your Safety Zone Configuration worksheet into the tagnames on the Import
Configuration dialog box.
Any ‘none’ tags listed in the import configuration are used as placeholders for unused tags. Refer to the rung
comments for more information.
6. Type the DeviceN
ame from your Safety Module Configuration worksheet into the tag names on the Import
Configuration dialog box.
In addition, for a dual channel analog input logic import, type the Mod
uleName of the Analog Module into the
ModuleName_Ch0Ch1_InputStatus tag.
7. Select the ModuleName:I or PtAdapterName:SlotNumber field.
