Rockwell Automation Allen-Bradley IMPACT 1336 Series

5–52 Part Replacement Procedures
Publication 1336 IMPACT-6.8 – November, 2002

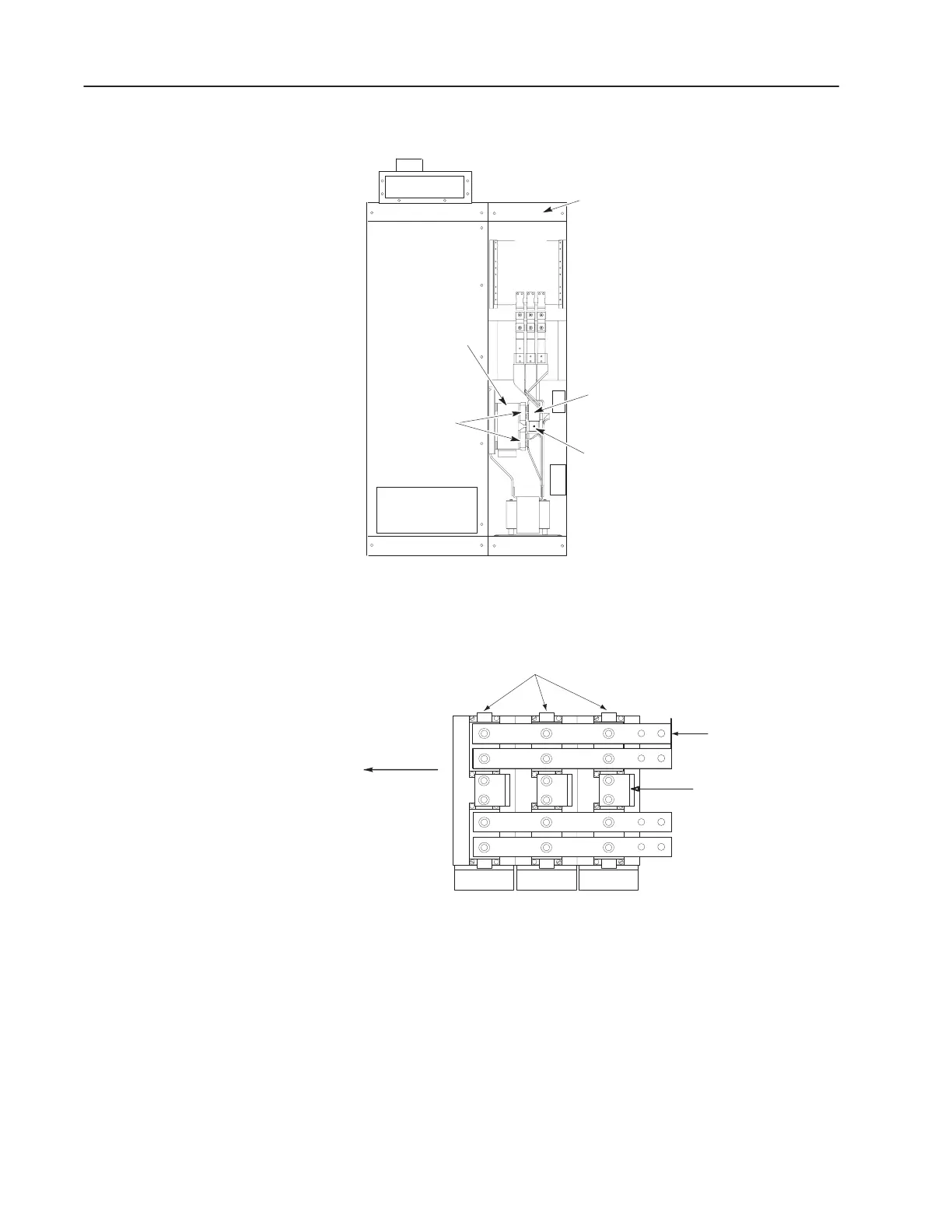

Figure 5.30
Converter Diodes
Converter Bay
Bridge Heat Sink
Converter
Diodes (6)
Flex Bus
L-Shaped Bus Bar
AB1103
Figure 5.31
Bus Bars
Converter Diodes
Bus Bar
L-Shaped Bus Bars
Front of Cabinet
AB1104
4. Remove the hex head screws that are in the four corners of the
Converter Diode.
5. Remove the Converter Diode.
