106 Rockwell Automation Publication 750-TG100B-EN-P - June 2019

Chapter 6 Frame 7 Components

14. Disconnect connector P14 from connector J14 on the fiber-optic interface

board.

15. If installed, disconnect the customer supplied 24V supply power wire

connector P13 from connector J13 on the fiber-optic interface board.

16. Route all cables through the grommets in the bottom of the control pod.

J13J14

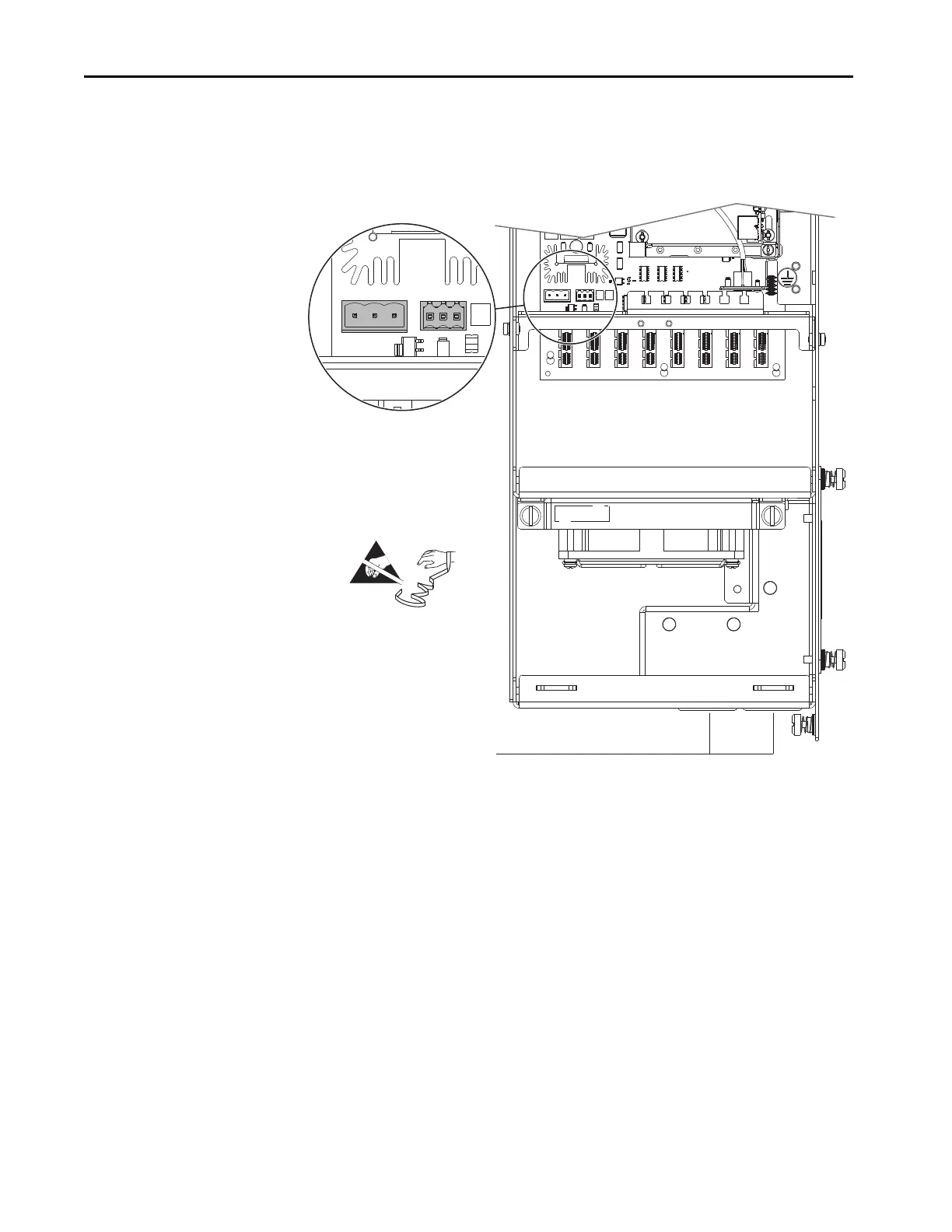

Route Cables Through Grommets
