Rockwell Automation Publication 750-TG100B-EN-P - June 2019 159
Control Bay and Control Pod Components Chapter 7

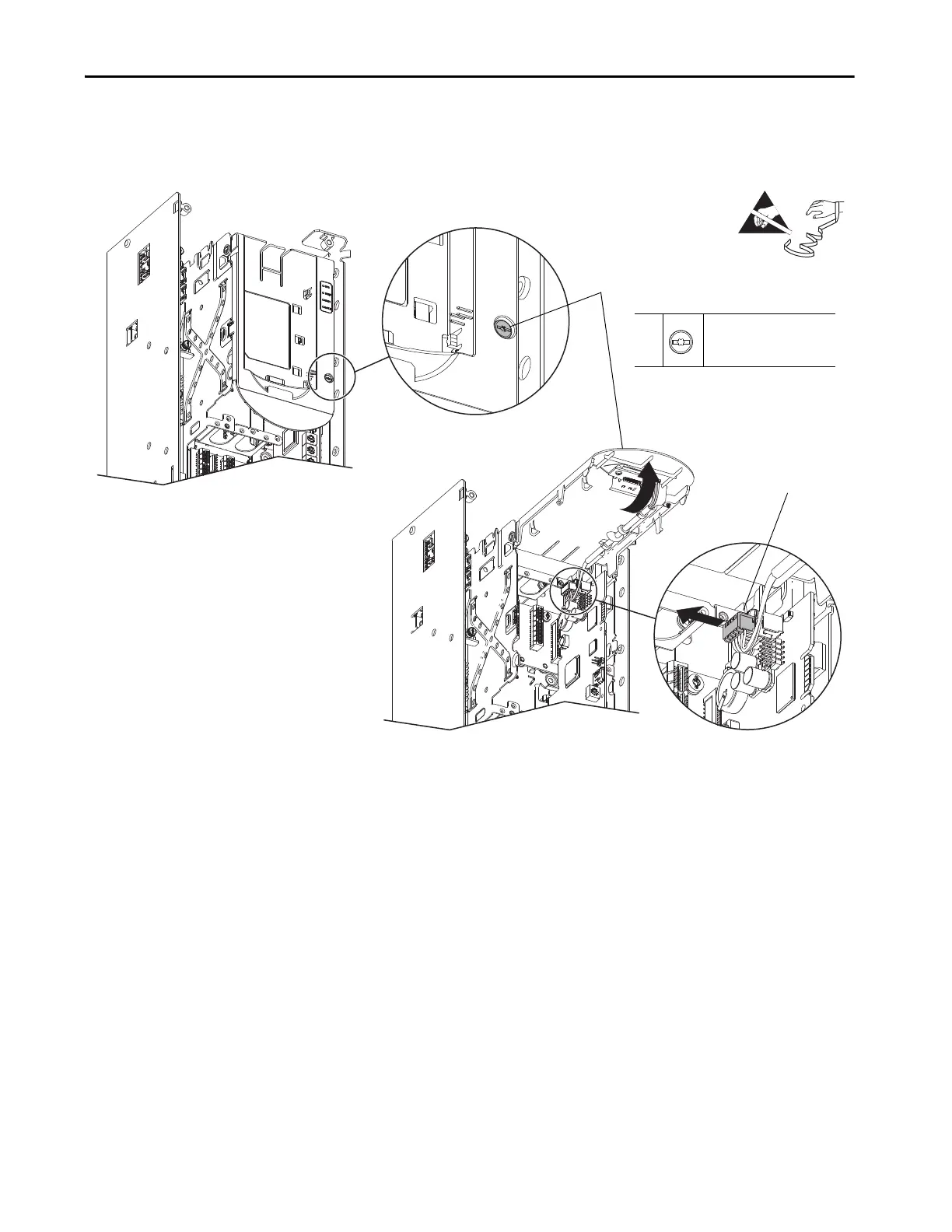

12. Loosen the screw that secures the HIM bezel to the pod chassis, and rotate
the bezel up to a 90° horizontal position.
13. Disconnect the HIM cable from the port on the main control board.
12
M3 x 6.4 mm
T15 or F - 5 mm (0.19 in.)
0.45 N
•m (4 lb•in)
To Next Page
