Waveform Setup
R&S
®
Scope Rider RTH
45User Manual 1326.1578.02 ─ 12

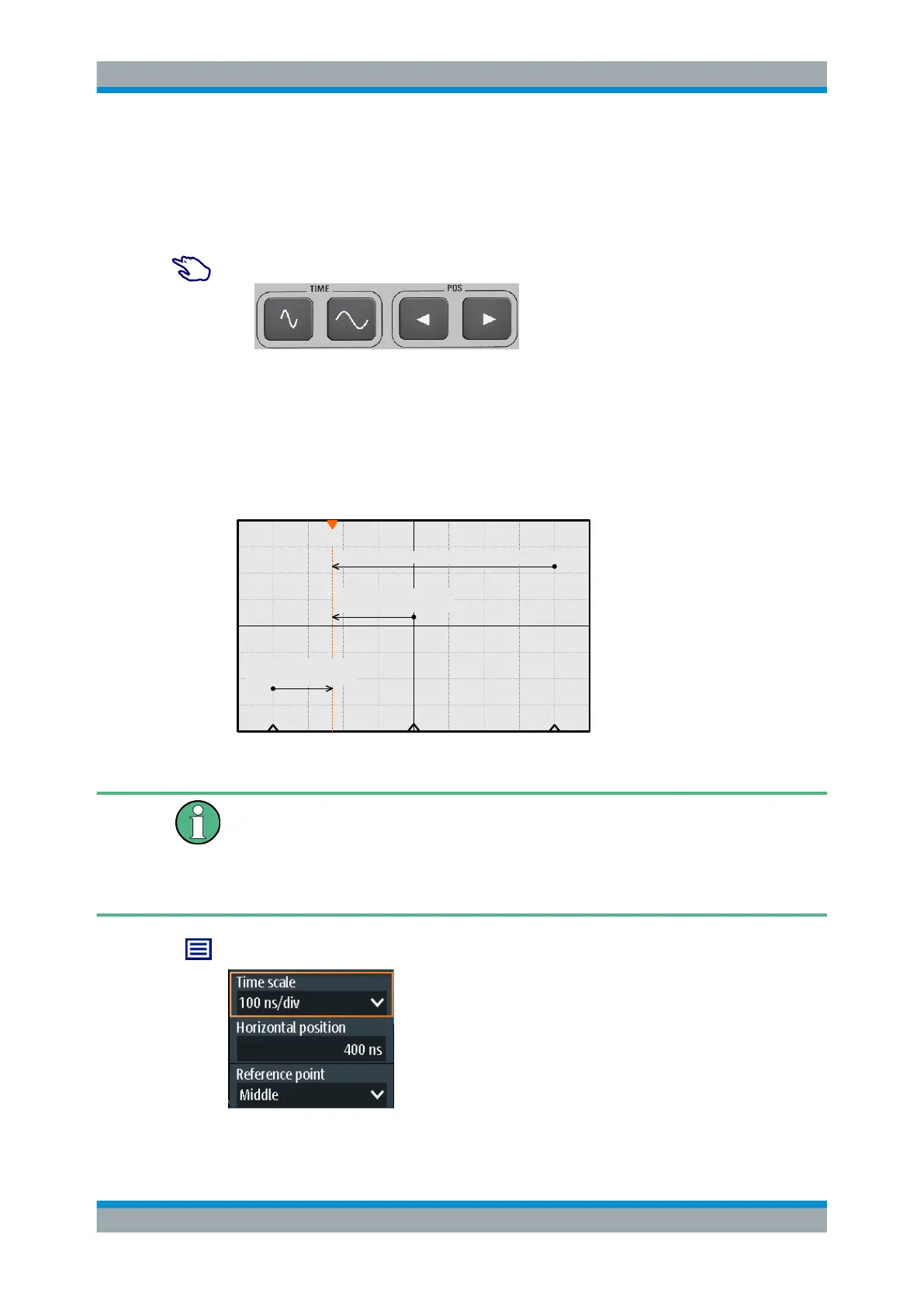

3.3 Horizontal Setup
Horizontal settings, also known as timebase settings, adjust the display in horizontal
direction.
1. To set the timebase and horizontal position, use the [TIME] and [POS] keys.
2. To adjust all horizontal settings, select "Horizontal" in the main menu.
The determining point of an acquisition is the trigger point. Two parameters define the
position of the trigger point: reference point and horizontal position (also known as trig-
ger offset or delay). Using these parameters, you choose the part of the waveform you
want to see: around the trigger, before, or after the trigger.
T
Reference point
= Left
Reference point
= Middle
Reference point
= Right
t = 0
Horiz. position from
left ref. point (< 0)
Horiz. position from
middle ref. point (> 0)
Horiz. position from right ref. point (> 0)
Signal delay
If you have set a bandwidth limit, the signal might appear delayed on the screen. The
delay time depends on the selected filter. The effect is visible if several signals with dif-
ferent limits are displayed.
See also: Chapter 3.2.2, "Effect of the Bandwidth Filter", on page 44.
Description of settings
Horizontal Setup
