Spectrum Analysis
R&S
®
Scope Rider RTH
122User Manual 1326.1578.02 ─ 12
Remote command:
SPECtrum:WAVeform:MAXimum[:ENABle] on page 358
SPECtrum:WAVeform:MINimum[:ENABle] on page 358
SPECtrum:WAVeform:SPECtrum[:ENABle] on page 359
SPECtrum:WAVeform:AVERage[:ENABle] on page 358
SPECtrum:FREQuency:AVERage:COUNt on page 356
Reset
Clears the results for previous measurements used in statistical evaluation (see Trace
mode (Clear/Write/ Max Hold/ Min Hold/Average )).
Remote command:
SPECtrum:FREQuency:RESet on page 359
6.2.5 Vertical Settings
You can configure the vertical settings for the input signal in Scope mode. When you
select the Spectrum mode, the configuration is maintained. Some additional vertical
settings are available in Spectrum mode.
The [AUTOSET] function sets the center frequency to the frequency with the highest
measured power. All other vertical settings are set to allow for an optimal spectrum dis-
play.
The following vertical settings are identical to Scope mode:
●
"Coupling" on page 41
●
"Probe Setting" on page 42
●
"Offset" on page 43

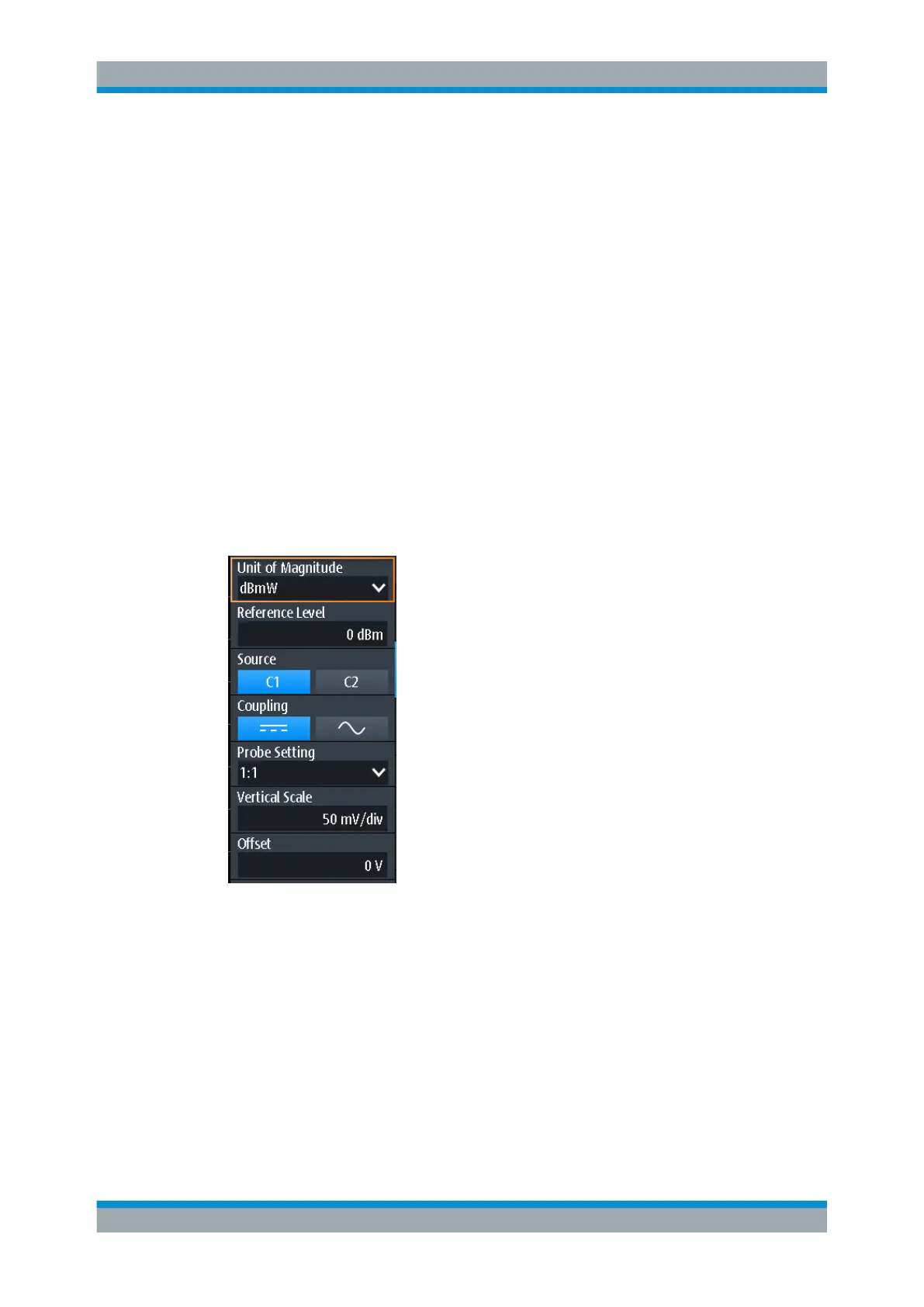

The following settings are available in Spectrum mode only:
Spectrum Mode (Option R&S
RTH-K18)
To Next Page
