Waveform Analysis
R&S
®
Scope Rider RTH
90User Manual 1326.1578.02 ─ 12
► To activate or deactivate the last configured math waveform, shortly press the
[MATH] key.
► To adjust vertical scale and position of the math waveform, use the [RANGE] and
[POS] keys.
You can analyize math waveforms in the same way as channel waveforms: use zoom,
perform automatic and cursor measurements, save as reference waveform, and per-
form mask tests.

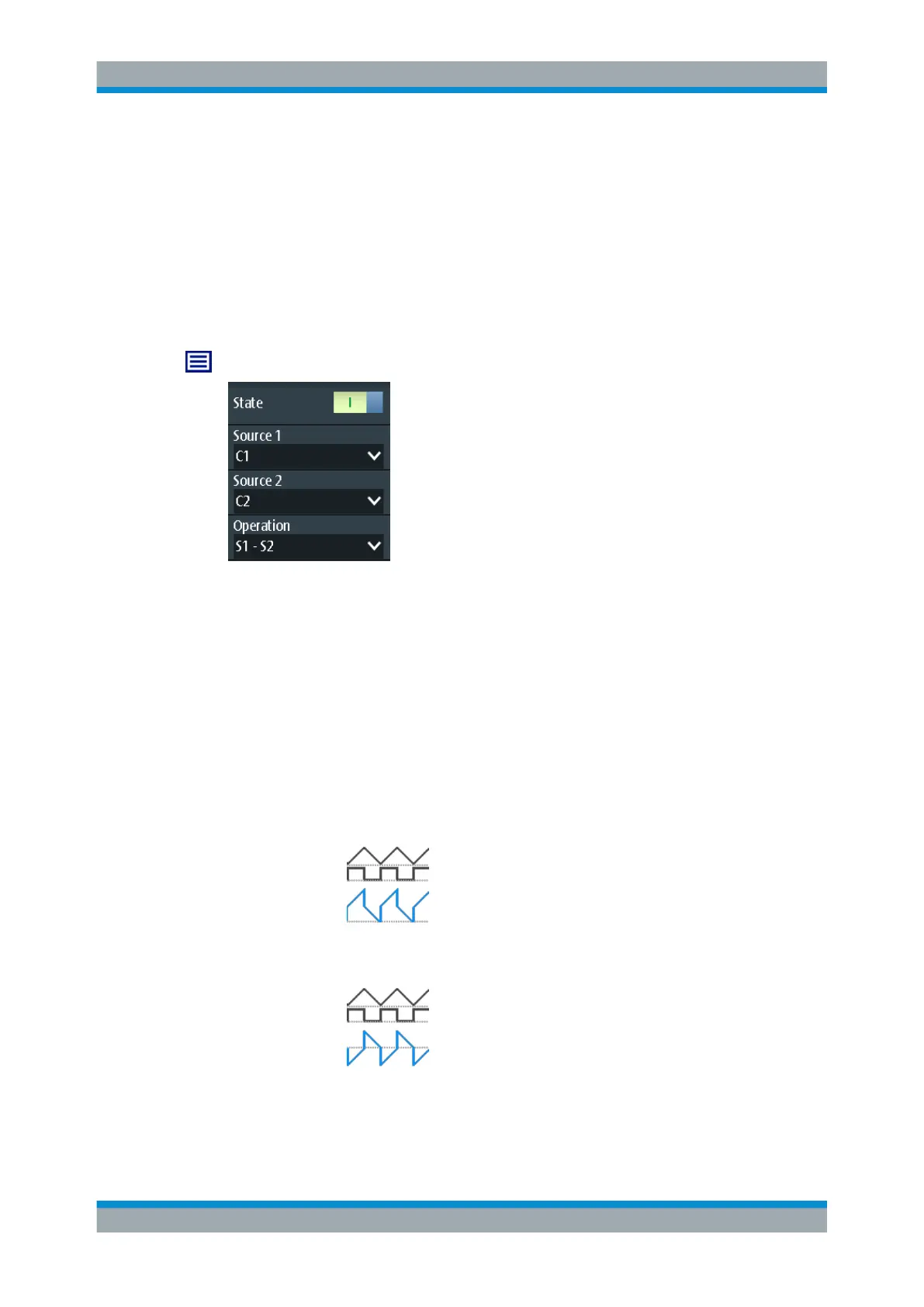

Description of settings
State
Activates the waveform and displays it.
Remote command:
REFCurve:STATe on page 343
CALCulate:MATH:STATe on page 342
Source 1 / Source 2
Sets the source(s) for the defined mathematic operation.
Operation
Select an operation to calculate the math waveform.
"S1 + S2"
Addition: Adds the values of "Source 1" and ""Source 2"".
"S1 - S2"
Subtraction: Subtracts the values of "Source 2" from the values of
"Source 1".
Mathematics
