6.4. Firing segments
6.4.1. Explanation of firing segments
Each firing program consists of individual firing segments. Each firing segment consists of 3 values. The 3 values of a
firing segment are:
 a heating (1.1) or cooling ramp (1.2)
 the soak or target temperature (2)
 a soak time (3)
When programming a firing program, the three values must be entered for each segment.
During programming and the course of a firing program, the graphical display shows which value of the respective firing
segment is currently selected or which is currently running with an illuminated LED display.
The "Segment" display shows which segment you are currently in during programming and the program run.

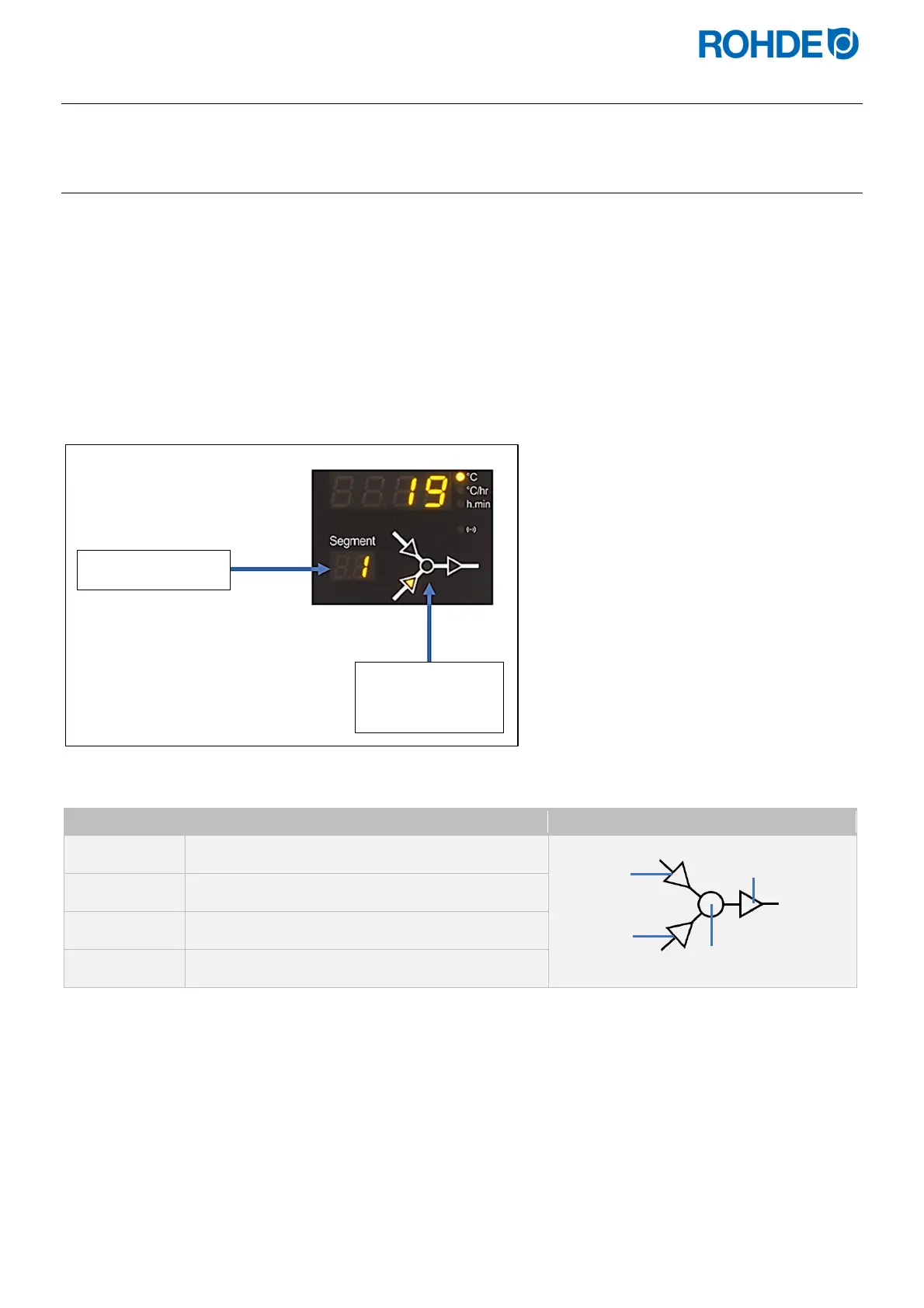

Graphical program operation display:
Value Meaning Graphical program operation display
1.1
Heating ramp
1.2
Cooling ramp
2
Soak Temperature (target temperature)
3
Soak time
 There is only either one heating ramp (1.1) or one cooling ramp (1.2) per firing segment - never both!
1.2
1.1
2
3
Segment display
Graphical program
operation display
