LED status Digits and characters
0 – LED OFF
1 – LED ON
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Table 4. The binary mode of presenting digits and characters.

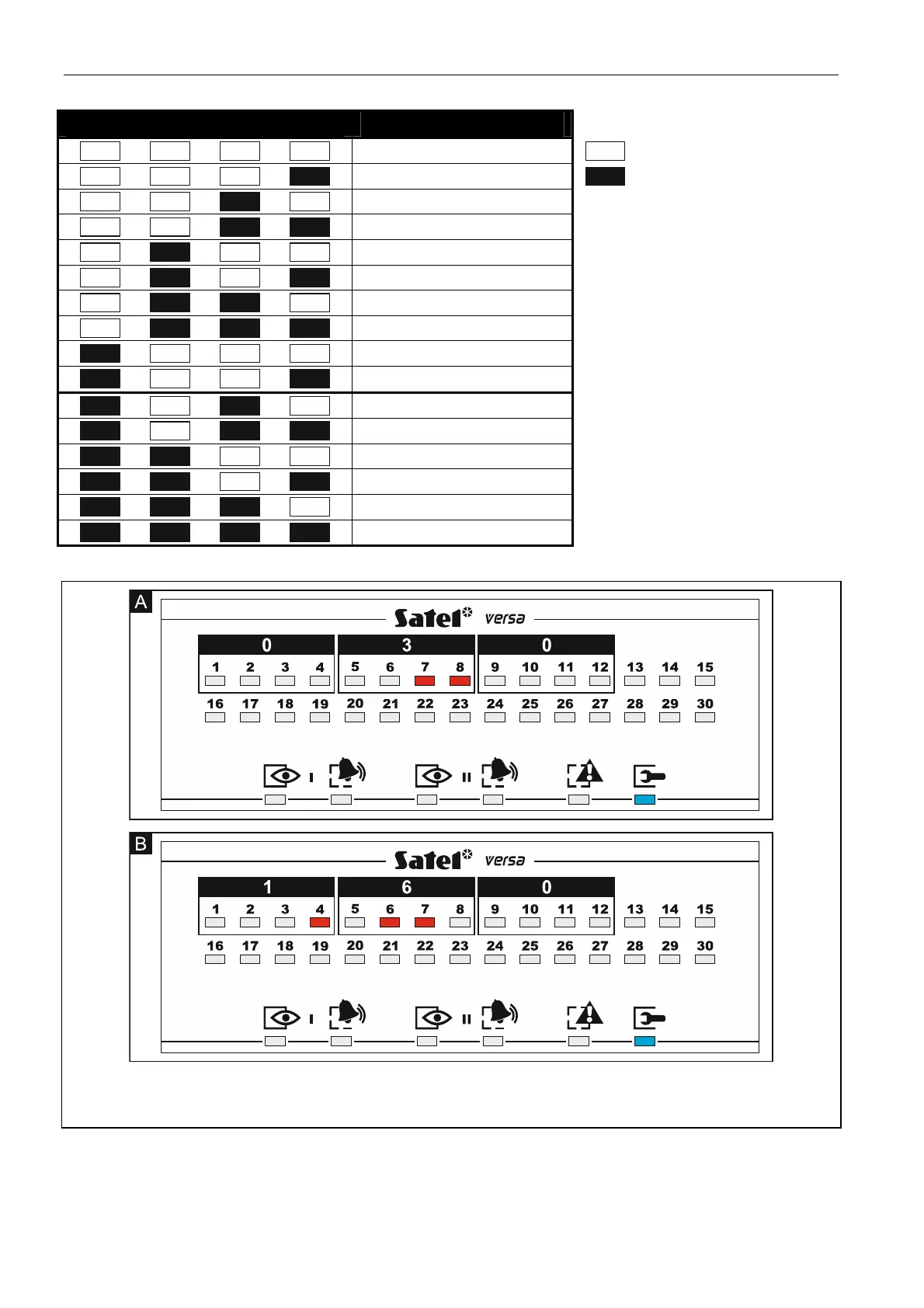

Fig. 1. Examples of presenting decimal values by means of LEDs in the LED keypad. Value
30 (030) is programmed in Example A, and value 160 in Example B.
