Section 2: Installation
CG2 Series Operator Manual Page 2-5
2.3 LOADING LABELS OR TAGS (cont’d)

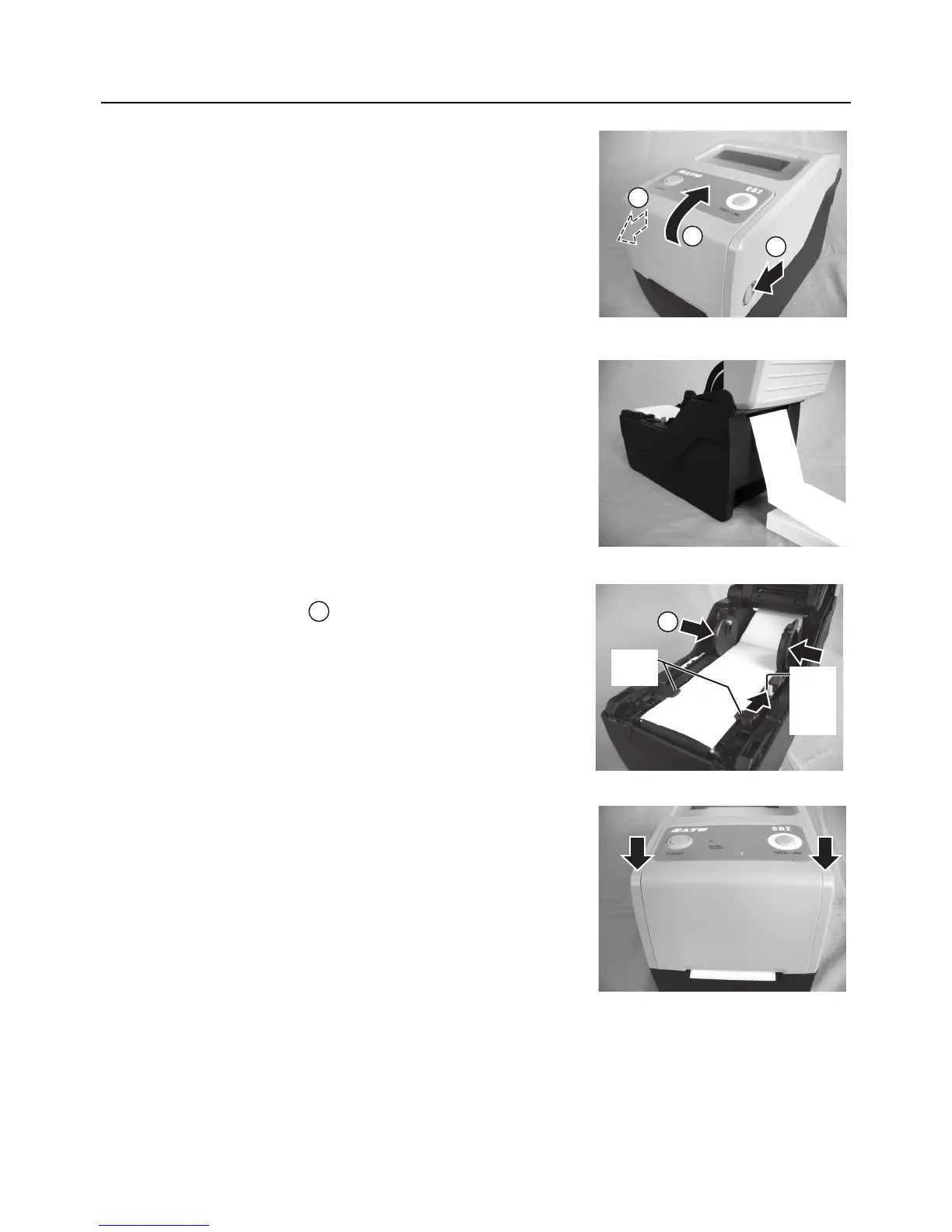

2.3.2 Loading Fan-folded media
1.
With the power supply off, pull the cover open/close
latches on both sides of the printer toward you to unlock
the top cover, and then open the top cover.
Note:
Make sure that the cover rests firmly so that it will not fall
forward and injure your hands.
2. Pass the fan-folded media through the opened window
at the rear of the unit.
Note:
Make sure the printed side of the media is facing
upwards.
3. While holding the media guide slide lever, adjust the
width of the media holder to match the media size.
After pulling out the media, pass the media through the
media guides and place the leading edge of the media
on top of the platen roller.
4. Close the top cover until it clicks into position.
Notes:
• Be careful not to get your fingers pinched while
closing the top cover.
• If the optional cutter or dispenser has been
purchased, see Section 8.1 Optional Accessories -
Cutter and Section 8.2 Optional Accessories -
Dispenser on how to route the media.
1
Media
holder
slide
lever
Media
guides
1
To Next Page
