SATO CG2 Series User Manual

Section 3: Operation and Configuration
CG2 Series Operator Manual Page 3-21
Notes
• As for the labels issued after having a head error, check the print quality and perform reading of barcode
by scanner. As soon as possible, stop using the print head to prevent further damage. If necessary, get the
print head replaced.
• The head check range (Barcode print area) is valid for the barcodes printed by the barcode specification
command such as (ESC+B, ESC+D, ESC+BD). As for the graphic data with barcode, select the head
check range (Entire print area).

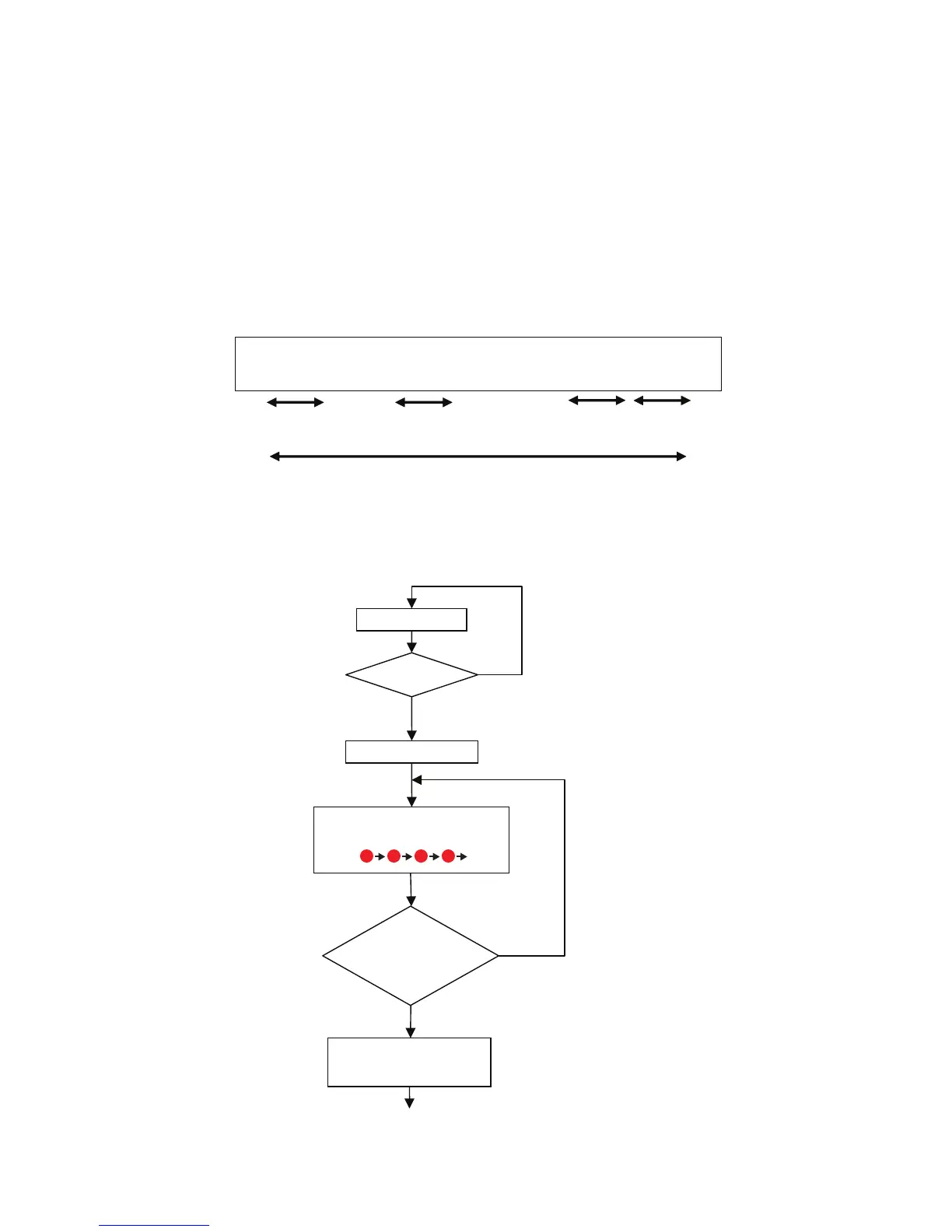

3.12.2 Head Check Range (Entire Print Area)
When the Entire print area is selected for head check range, the head check will be performed within the
minimum and maximum horizontal print area regardless of print contents (For example: font, barcode or
graphic).
* The head check will be performed within the minimum and maximum horizontal print area (between (1)
and (2)) regardless of print contents.
Notes
• When the head check range is
changed from entire print area to
barcode print area, the barcode
print area will still be valid even
after turning off the printer.
• To change the head check range
from the barcode print area to the
entire print area, use the head
check command (ESC+HC) to
select the entire print area or
execute either default or factory
clear.
Thermal head
Font Barcode
Head check range
(1)
(2)
Font
Font
Print
Head check
OK
NG
Head error
Head error state
ON LINE (POWER): Solid red
Press FEED/LINE
(5 seconds or more)
Less than
5 seconds
5 seconds or more
Head check range
(Barcode print area)
Go to (A) on the next page
