INTECONT® Tersus Belt weigher, Instruction Manual
Schenck Process Group
BV-H2464GB, 1234
- 7 -
3
33
3 General Diagram
General DiagramGeneral Diagram
General Diagram
3.1
3.13.1
3.1 An overview of the INTECONT Tersus
An overview of the INTECONT TersusAn overview of the INTECONT Tersus
An overview of the INTECONT Tersus
INTECONT Tersus is an extension of and improvement on the INTECONT system that has proven its worth
for years and has been used in more than 50,000 scales all over the world.
INTECONT Tersus is a measuring and measurement processing system of continuous weighing and feed-
ing equipment for
▪ weighfeeders
▪ conveyor belt scales
▪ differential feeding scales
▪ Coriolis mass flow equipment and
▪ solids flow equipment.
The basic hardware equipment is aligned to the needs of the application.
The following can be installed as optional equipment:
▪ fieldbus modules
▪ 230 VAC power supply
▪ module with additional analog outputs and analog inputs
3.2
3.23.2
3.2 Diagram of beltweigher and weighfeeder
Diagram of beltweigher and weighfeederDiagram of beltweigher and weighfeeder
Diagram of beltweigher and weighfeeder

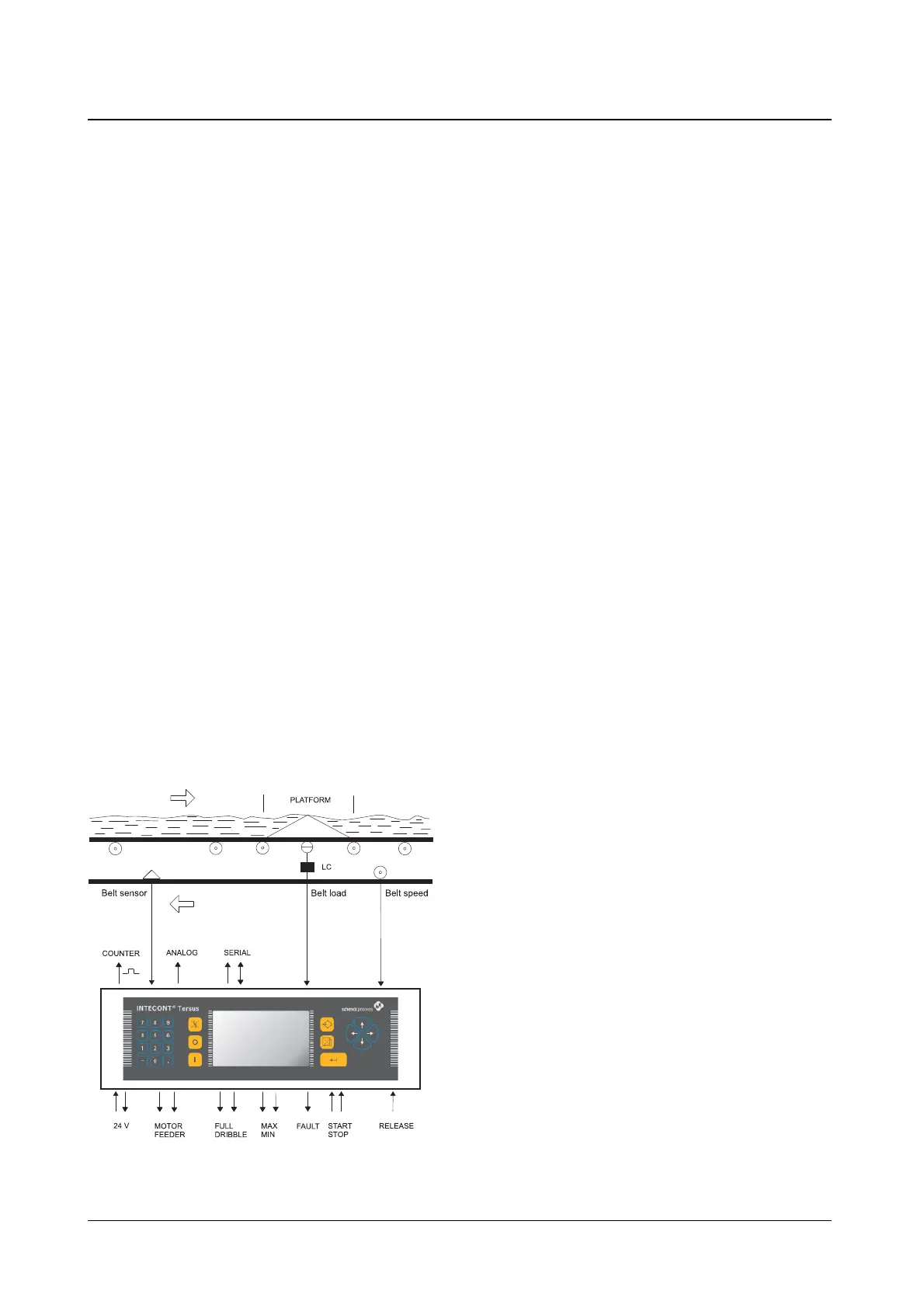

Fig. 1: Basic diagram of the ITE inputs and outputs
