INTECONT® Tersus Belt weigher, Instruction Manual
Schenck Process Group

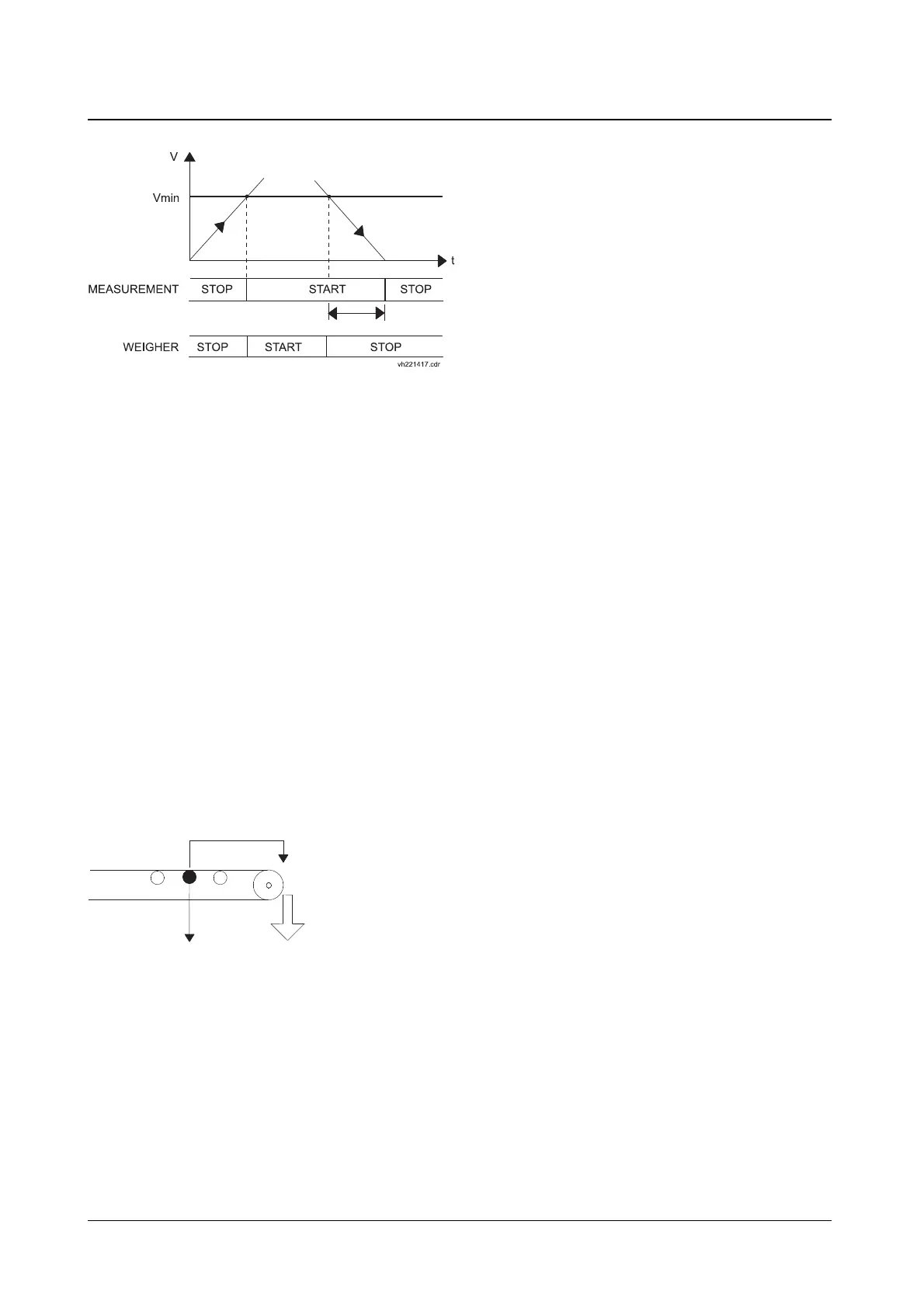

Fig. 23: Switch-on and switch-off at belt speed
Switch-on or switch-off via fieldbus interface (FB)
The ON and OFF commands function as the corresponding pushbuttons. Turning on and off can be trans-
ferred to the keyboard with the Start Keyboard Mode function. It is switched back with the Stop Keyboard
Mode function.
Comments:
▪ No batching is possible after selecting v.
▪ The n/a setting in the P16.01 Source Run Enable parameters turns off the input. Then the scale is al-
ways released.
18.6
18.618.6
18.6 Measuring at the Discharge Point VAP
Measuring at the Discharge Point VAPMeasuring at the Discharge Point VAP
Measuring at the Discharge Point VAP
Measuring on the VAP discharge point shifts the measuring point of the weighbridge to the discharge point
of the material by means of a time-lag device. The totalized amount of material dispatched is directly rec-
orded.
Measuring at dispatch: VAP
Preconditions:
▪ The length ratio from the centerline of the weighing platform to the material dispatch to the overall belt
conveyor length is known.
▪ Key in the length ratio in percent in parameters Platform Dis.Length P13.02.
▪ Activate VAP via VAP Active P13.01 parameters.
18.7
18.718.7
18.7 Belt Monitoring
Belt MonitoringBelt Monitoring
Belt Monitoring
