If the belts are inclined, the extension or shortening of the calibration lever corresponding to the single-idler
platform must be taken into account.
Chain Calibration Weights:
If a chain curtain is placed over the weighing platform area, the effective calibration weight then becomes
the total weight of the chain in the weighing area.
QPRF = n * Lg * s
n = Number of chains
Lg = Overall weighing platform length in m
s = Weight of chain per m in kg/m
12.1.3
12.1.312.1.3
12.1.3 Belt inclination
Belt inclination Belt inclination
Belt inclination

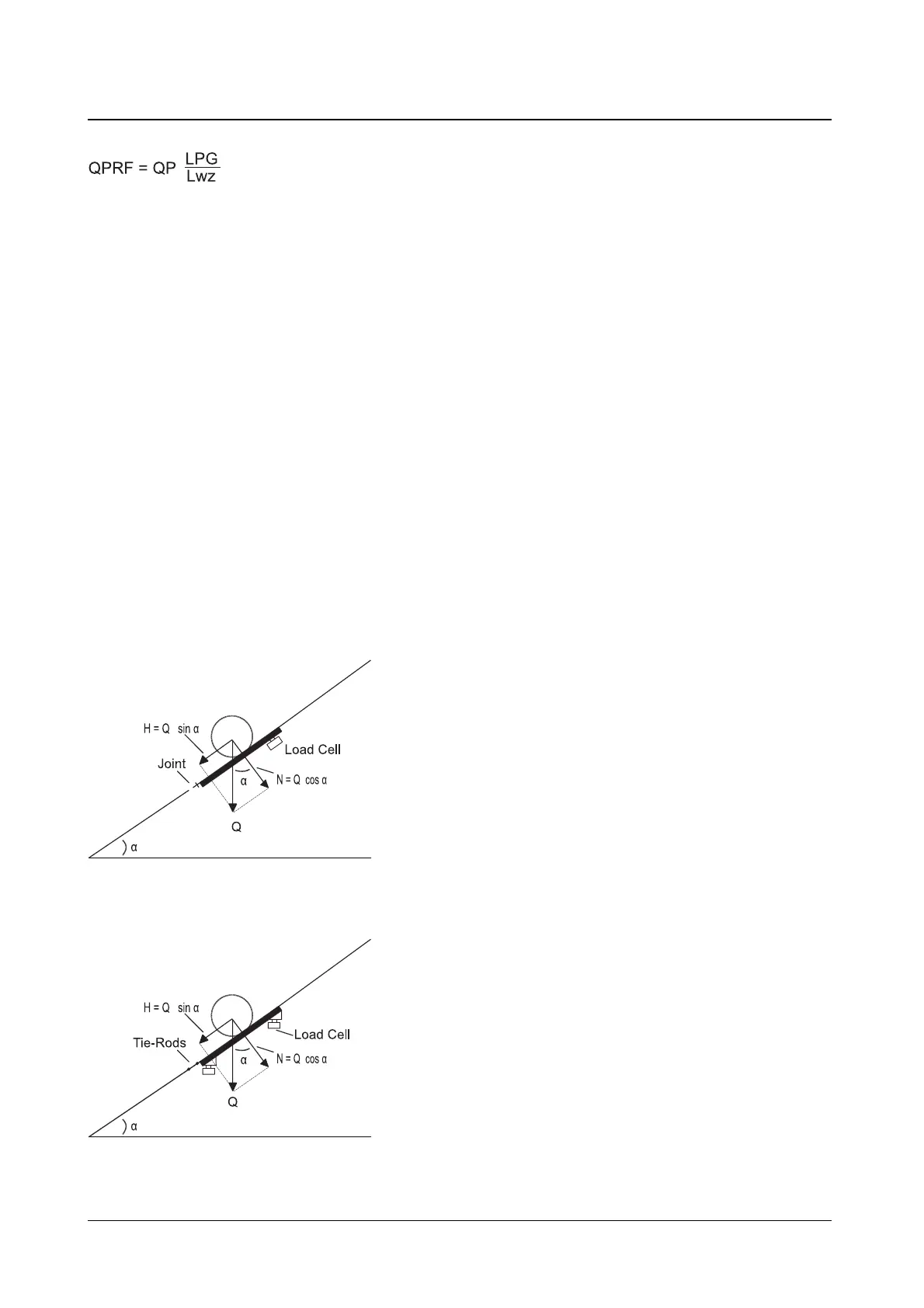

In certain cases, the belt inclination must be entered as a parameter. The orientation of the load cell at in-
stallation is decisive.
At right angles to the belt conveyor
The angle α must be entered as the parameters. The load acting on the load cell is N = Q * cos α.
Vertical to the belt conveyor
