Startup operation
INTECONT® Tersus Belt weigher, Instruction Manual
Schenck Process Group
BV-H2464GB, 1234
- 43 -

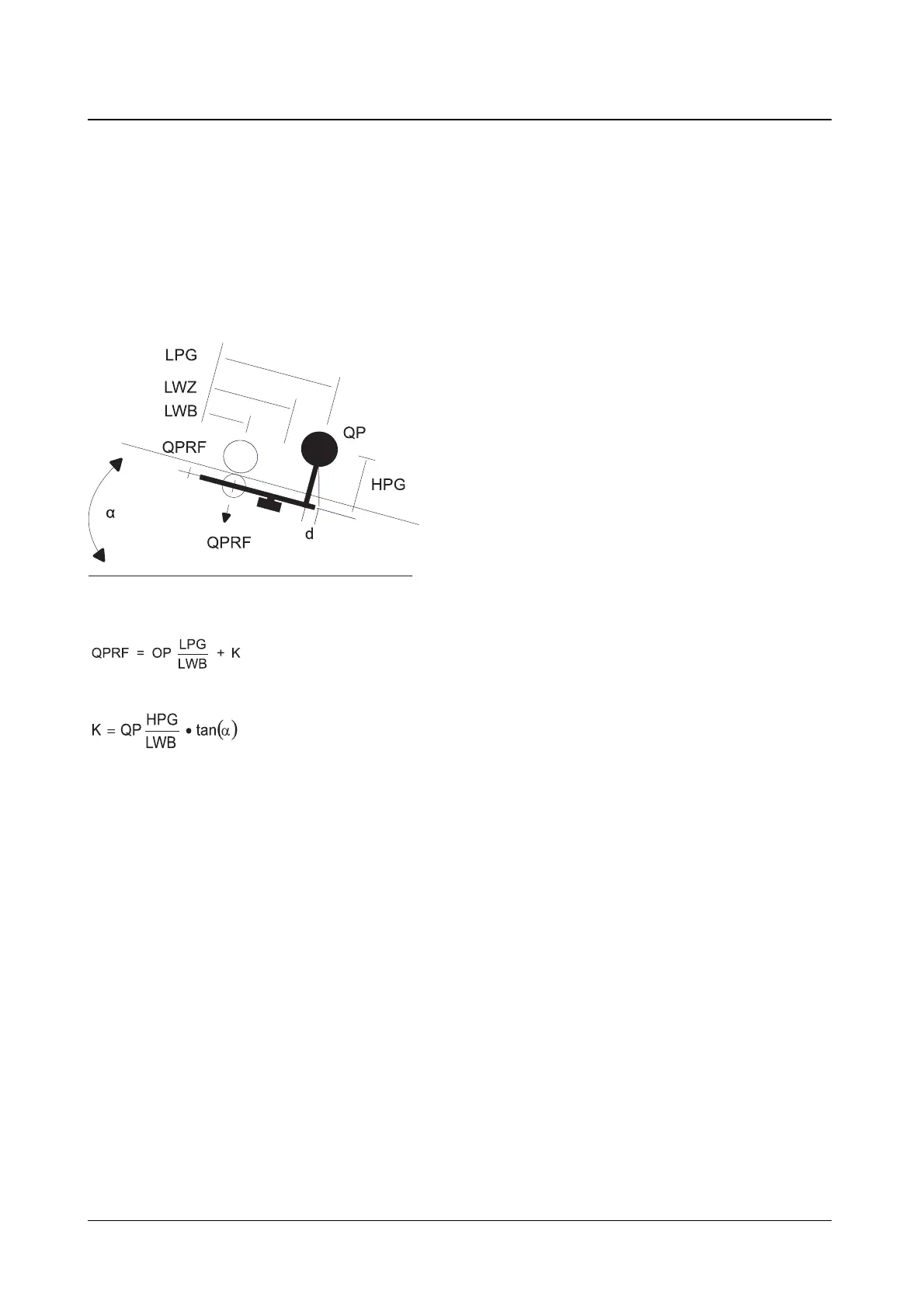

Parallel leaf-spring bearing
The calibration weight can theoretically be mounted at any point on the weighing plat-
form mechanical equipment. The effective load is always the applied weight QP.
QPRF = QP
Pivot joint bearing (e.g. crossed flexure strip)
tan(α)» 0.018 * a
Angle α = 0 : K = 0
Angle α = neg : K = neg
Multiple-idler platform
Entire platform supported on load cells
QPRF = QP
Pivot joint bearing
See single-idler platform
Buckled platform
The calibration weight usually has an effect in the center.
QPRF = QP
The following applies if the entire belt issupported on one side only:
