Startup operation
INTECONT® Tersus Belt weigher, Instruction Manual
Schenck Process Group
BV-H2464GB, 1234
- 41 -
12
1212
12 Startup operation
Startup operationStartup operation
Startup operation
12.1
12.112.1
12.1 Weighing Platforms
Weighing PlatformsWeighing Platforms
Weighing Platforms
12.1.1
12.1.112.1.1

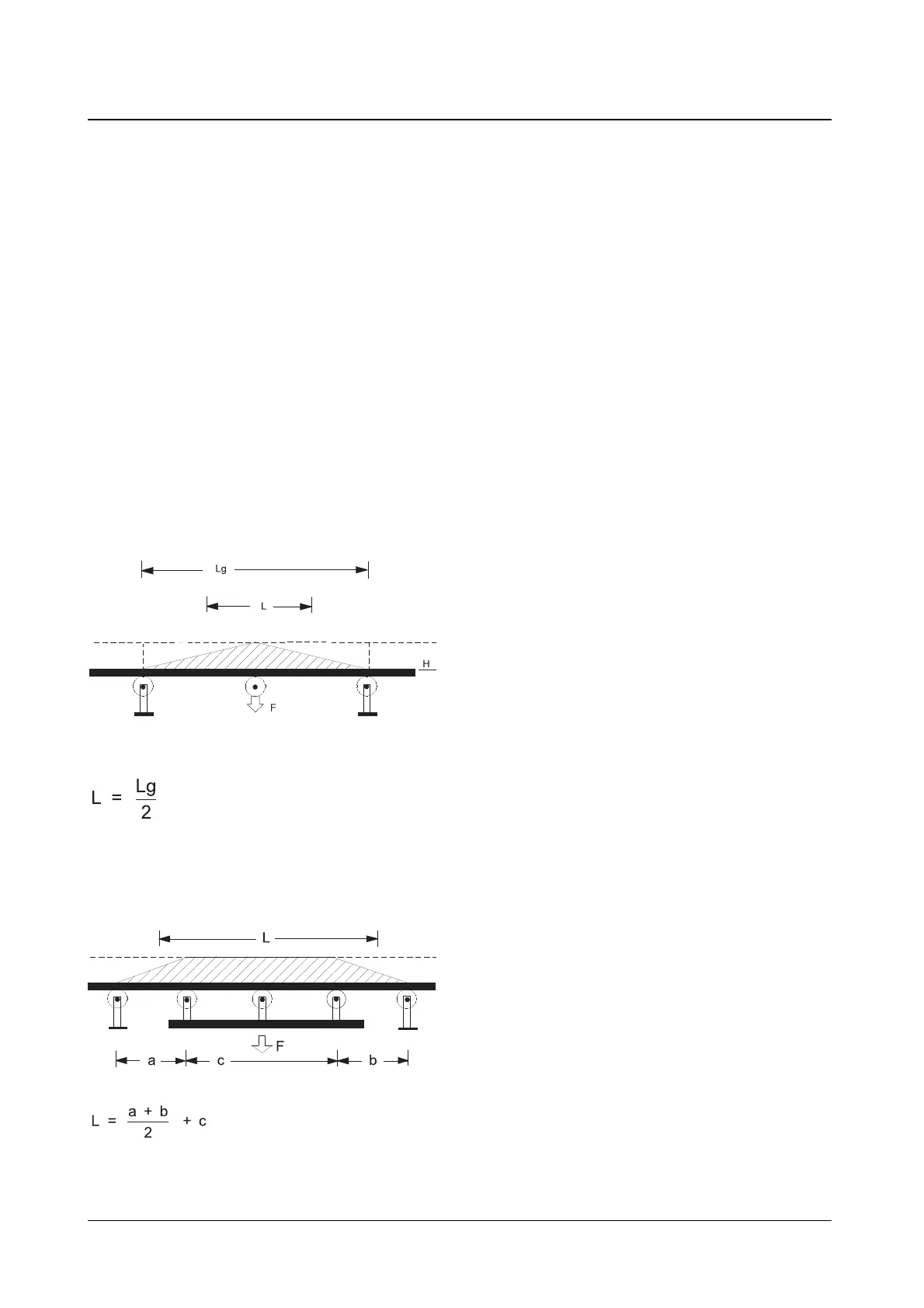

12.1.1 Effective Weighing Platform Length
Effective Weighing Platform Length Effective Weighing Platform Length
Effective Weighing Platform Length
The effective weighing platform length "L" is an important value for calibration. It is determined by the design
of the weighing platform and can usually be found in the technical data sheets. However, it is always expe-
dient to measure the length manually and to enter the exact value as a parameter. The hatched area shows
the load distribution on the weighing platform.
Single-Idler Platform
The load on the weighing platform is conducted via a weighing idler into the load cell. This can be done by
means of a lever system or without levers by means of a parallel leaf-spring system.
In this case, L is computed as:
Multiple-Idler Platform
Several weighing idlers are combined into one mechanical unit, the measuring bridge.
