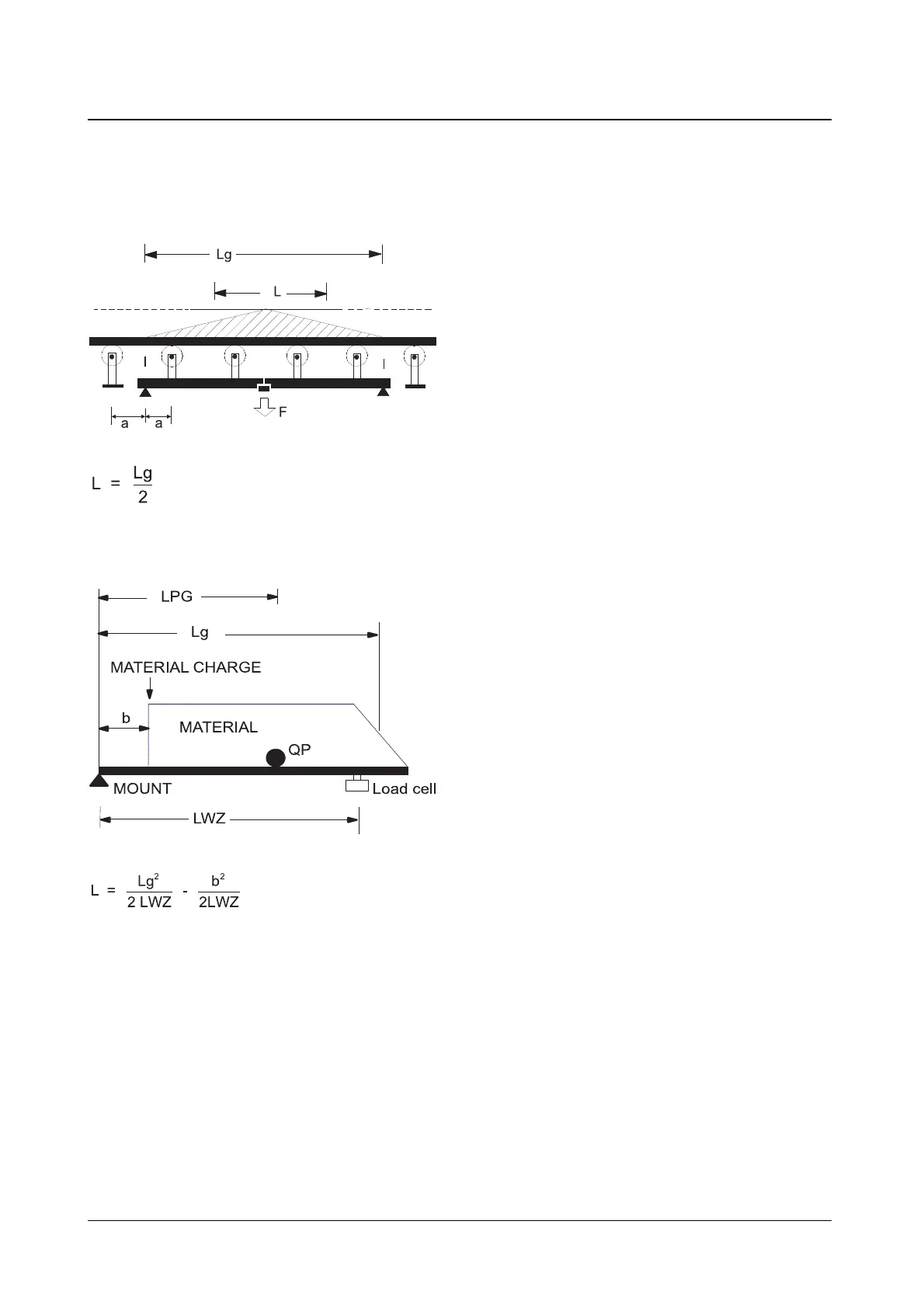

Buckled Platform
The weighing platform consists of two parts. The force is conducted centrally into the load cell. A split mea-
suring table can also be used in place of the weighing idlers.
Mounting for entire belt on one side only
Lg = Distance to the center of the material cone
12.1.2
12.1.212.1.2
12.1.2 Calibration Weigh
Calibration WeighCalibration Weigh
Calibration Weight
tt
t
The calibration weight simulates a certain belt load and serves to control the weighing system. It can have a
direct effect on the weighing platform or via a lever system. The weight acting on the weighing platform, and
not the actual weight, must be entered into parameters P03.08 and . The effective calibration weight QPRF
is the weighing platform load in kg simulated by the calibration weight.
