INTECONT® Tersus Belt weigher, Instruction Manual
Schenck Process Group
BV-H2464GB, 1234
- 141 -
18.5
18.518.5
18.5 Starting and Stopping
Starting and StoppingStarting and Stopping
Starting and Stopping
The on or off states relate to the belt drive, the prefeeder and to measuring the flow rate. Belt load and belt
speed are continuously measured.
An effective switch-off command does not turn off totalizing immediately, but only after the P07.06 After-
flow Totalizer time. Stop commands have the highest priority.
Various control modes can be configured as per the P02.06 Feeder Start parameters.
Turning off or on with a digital input
The digital input functions edge-triggered. That means for example that if the scale fails due to an alarm, the
ON signal must be removed and applied again.
Turning on or off with the keyboard (OP)
Turning on:
▪ The ON key if there is no alarm and there is a release.
Turning off:
▪ The OFF key if the alarm or there is no release.

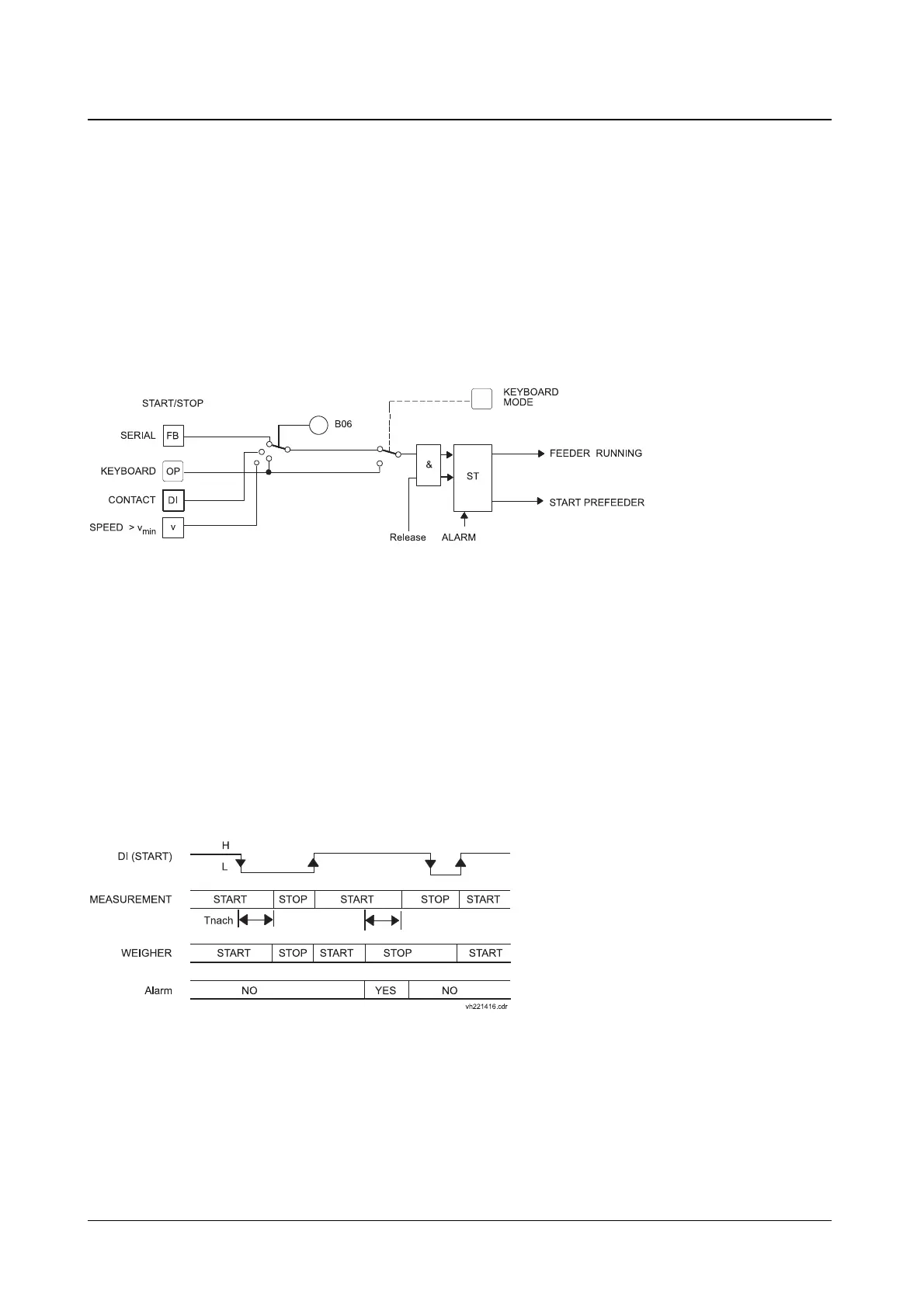

Fig. 22: Switch-on or switch-off with keyboard
Switch-on or switch-off via belt speed
This switches at a belt speed that is greater or less than the V
min
limit value. It queries the non-averaged
measurement of the speed v. Refer to the P06.09 Limit: Speed MIN parameters.
