INTECONT® Tersus Belt weigher, Instruction Manual
Schenck Process Group
BV-H2464GB, 1234
- 45 -
0° must be entered as angle α. The full force Q acts on the load cells.
12.2
12.212.2
12.2 Parameter Input
Parameter InputParameter Input
Parameter Input
A technical data sheet is part of the scope of delivery. It contains all important nominal and calibration data
acc. specification. We will therefore list only a few important pieces of information and some recommenda-
tions at this point. It makes sense to go through all of the parameters and consider the value entered.
Parameter block Dialog Behaviour :
Dialog language, display units and availability or security of the function block functions. The parameters
values will be converted automatically if the dimensions are changed.
Parameter block Rated Data :
Pulses per length P02.04 is important to calibration.
The dimension data should be adapted to the Nominal Flow Rate. Flow Rate Units P02.01 resolution should
not be greater than 4 ... 5 decimals for a quiet display.
The output frequency should not be any more than 10 Hz if an external volumeter is connected.
Parameter block Calibration Data :
All calibration and evaluation data are important and must be entered exactly. Most of the details can be
found in the technical data sheets. The effective platform length and the inclination of the belt must be
measured on-site. The inclination of the belt may only be entered for systems in which the load cells are
arranged perpendicular to the belt. On vertically-installed load cells, the effective angle equals 0°.

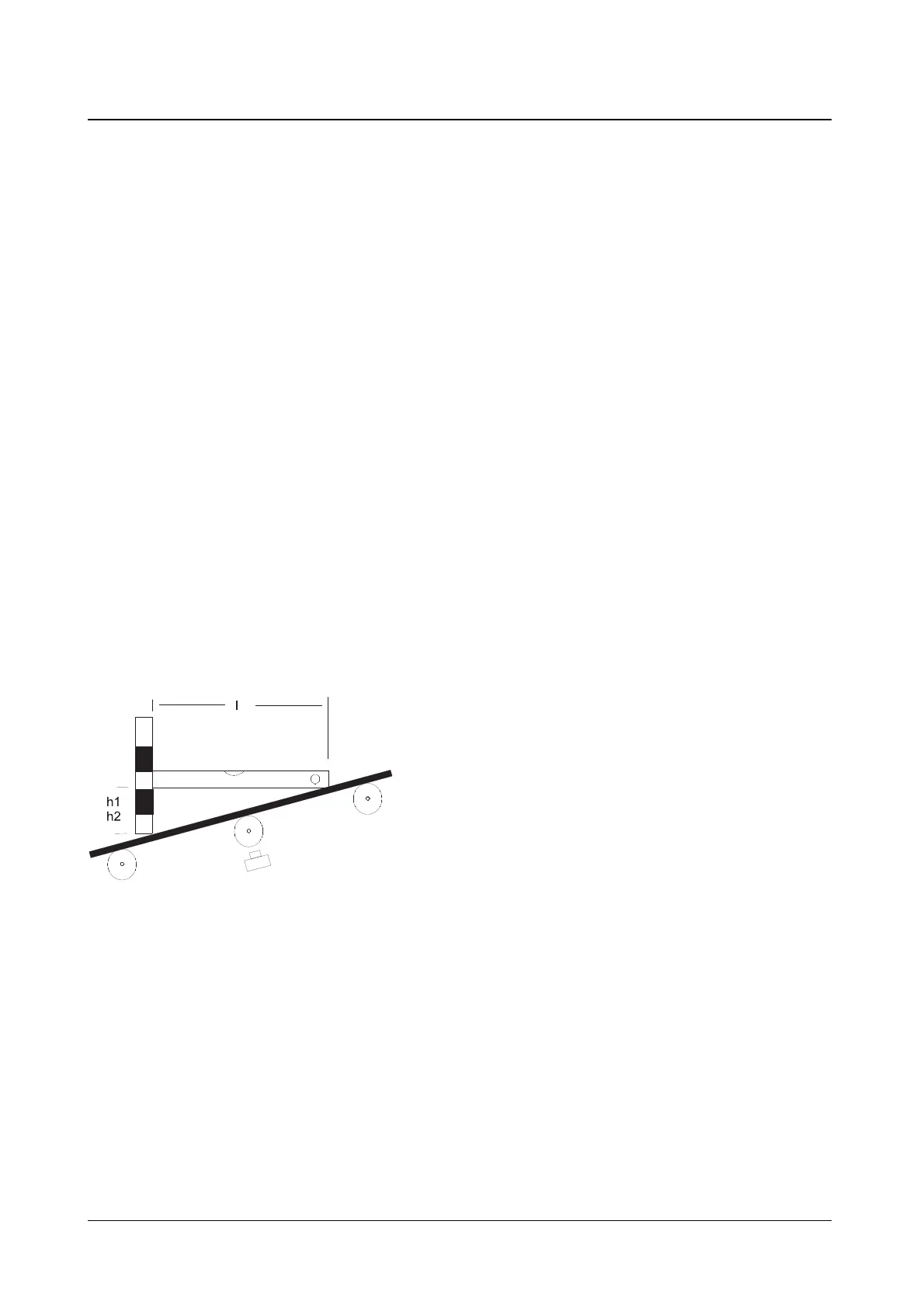

The inclination of the belt can be determined easily using a spirit level and a measuring tape. It is advanta-
geous to measure multiple times and to take the mean value of these measurements (h1, h2, …) as the
value 'h'.
The Angle P03.07 angle is then a = tan
-1
(h/l)
For angle < 20°, a = 55 h/l applies
Parameter block Calibrat. Results :
No input is needed. P04.02 Range Correction should be on 1 at initial calibration. We recommend that once
you have entered the rated data you check whether the load cell becomes overloaded by the rated feed
rate.
