4 Operation
OperationOperation
Operation
4.1
4.14.1
4.1 Quick guide
Quick guideQuick guide
Quick guide

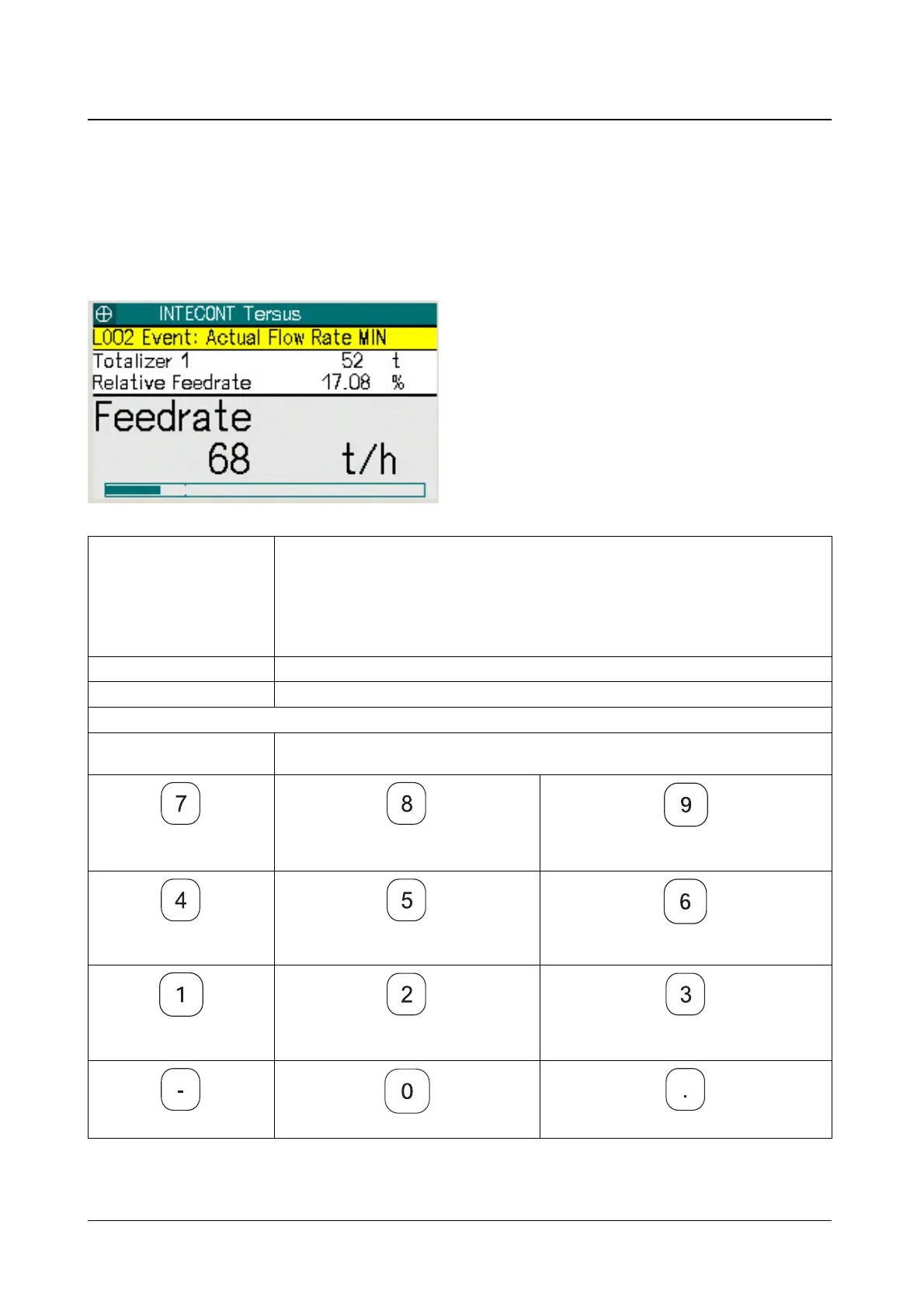

Elements of the graphic display:
Line 1: header
rotating cross as a progress indicator. The scales are switched on; feed rate and flow
rate are being recorded. In belt-based systems, only the belt load and belt speed are
measured when the device is switched off (single point displayed).
Ɖ : with activated batching mode
local designation of the feeder. This can be changed with EasyServe using the parame-
ter P01.05.
Line 2: event line
event information with a code and plain text
Upper display area
two lines of actual values. These lines correspond to the two lines of INTECONT PLUS.
Lower display area
Actual values that can be selected for display with buttons 0 - 9. The functions of buttons
4 - 7 depend on the application software and parameterization.
---
Totalizer 1Large
value as per the parameter block
Configuration HMI Values
Batch Actual ValueLarge
with bars
SetpointLarge
with bars
---
FeedrateLarge
with bars
Belt LoadLarge
with bars
Belt SpeedLarge
with bars
reduce brightness
4 readings with a bar display
increase brightness
