Hardware and technical data
BV-H2464GB, 1234
- 130 -
INTECONT® Tersus Belt weigher, Instruction Manual
Schenck Process Group
*)
**)
***)
Wire color red
Wire color green
Bus termination supply

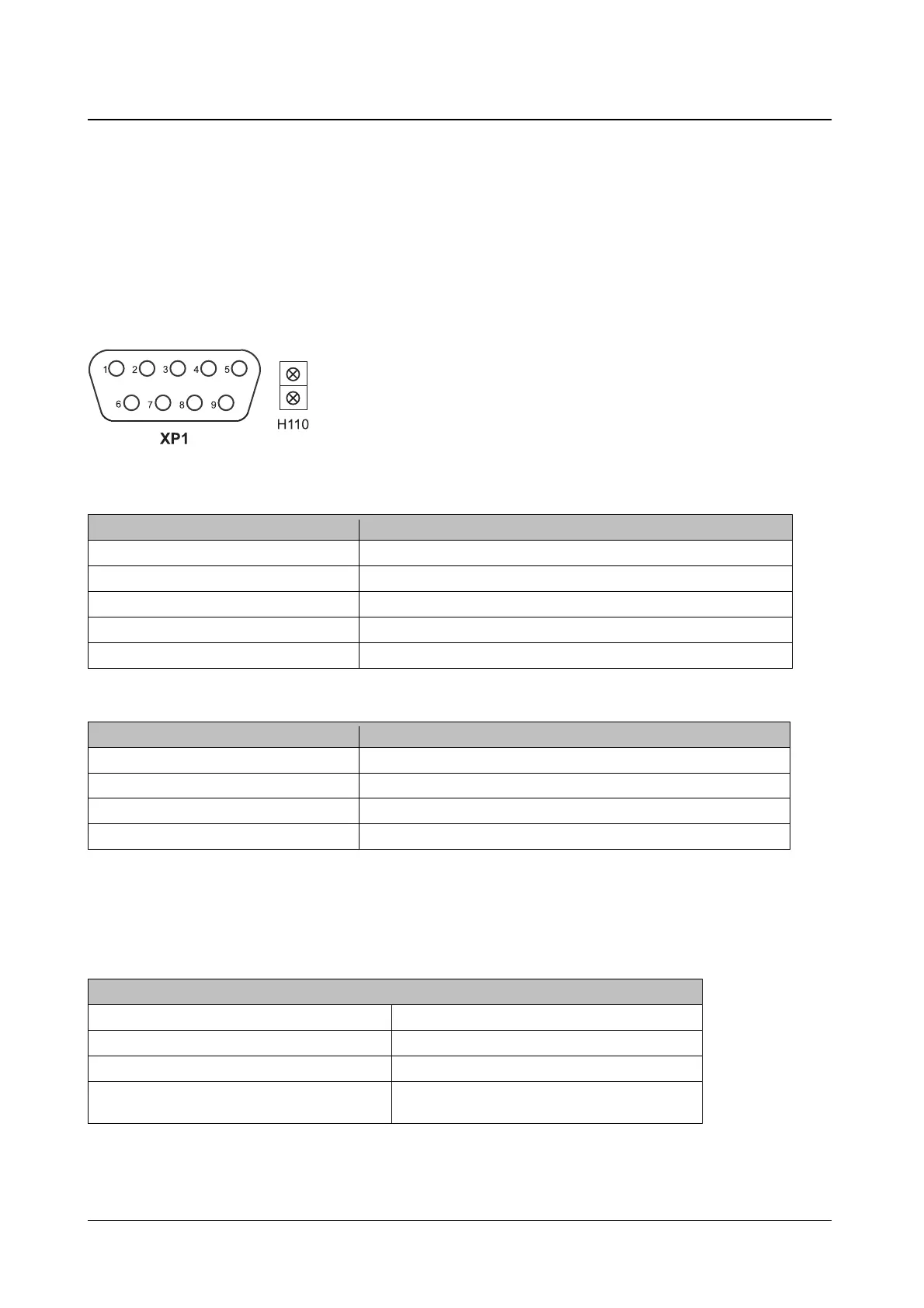

LEDs H110, H120
There is one identical-function double-LED (H110, H120) for each connection to the bus activation (XP1,
XP3).
Example H110:
Fig. 18: LEDs - VPB8020 front view
Status
Display
Off Not online/no power supply
Green Online, data transfer
Green, flashing Online, clear mode
Red, flashing (1 Hz) Parameterization fault
Red, blinking (2 Hz) Configuration error
Tab. 6 : LED 'Operating Mode' (below)
Status
Display
Off No power supply or not initialized
Green Initialized
Green, flashing Initialized, result of diagnostic test pending
Red Exception error
Tab. 7 : LED 'Status' (above)
16.5
16.516.5
16.5 DeviceNet Module (VCB8020)
DeviceNet Module (VCB8020) DeviceNet Module (VCB8020)
DeviceNet Module (VCB8020)
The module can be attached to the mainboard to create an interface to the DeviceNet.
Module properties
Disconnection Optocoupler
Power supply +5 VDC internal
Power supply max. 250 mA
Plug connector to the bus activation XC1: Terminal 5-pole
XC3: Terminal 5-pole
Arrangement of the components
