General Diagram
BV-H2464GB, 1234
- 10 -
INTECONT® Tersus Belt weigher, Instruction Manual
Schenck Process Group
Displays
The display of INTECONT Tersus consists of 4 parts:
1. You can give the technical name at the installation location in the header. A rotating symbol on the left
edge shows whether the weighfeeder is on or off.
2. The second line of the display is reserved for event messages.
3. The following two lines show readings that can be selected with the cursor buttons. These lines cor-
respond to the lines of the INTECONT PLUS display.

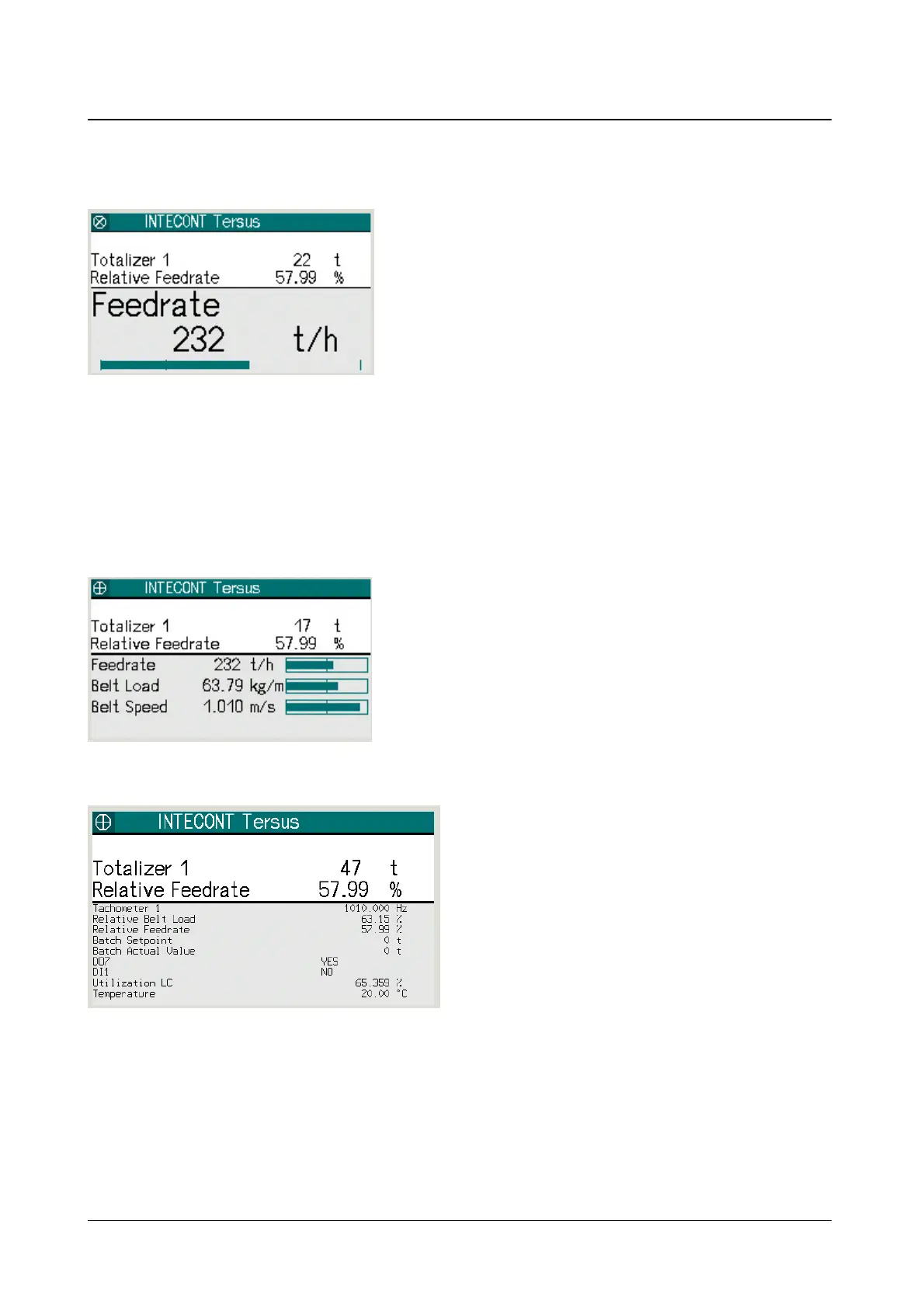

The lower half of the display is used for various visualizations: the large-scale display of an individual read-
ing, displaying 4 readings in line font size or displaying as many as 9 adjustable readings in the parameters
block Configuration HMI Values. They adapt their font size over 3 levels.
Event messages
▪ Events and malfunctions are shown by an alphanumerical shorthand symbol and title.
▪ The appropriate "uncoded text" for all subsequent events can be called up via the operating keyboard.
▪ This distinguishes alarms (red) and warnings that either have to be acknowledged (orange) or do not
have to be acknowledged (yellow). Alarms will shut down the scales, warnings will not. All alarms are al-
so indicated with a relay output.
