SCHUNK WBL 22.03 - Pantograph; Illustration 1: Components

Schunk Bahn- und Industrietechnik GmbH
Pantograph Components
SB-038483-EN.docx
19 / 147
Datum: 13.02.2018
SAP.Nr.10901359
Index: -
Pantograph

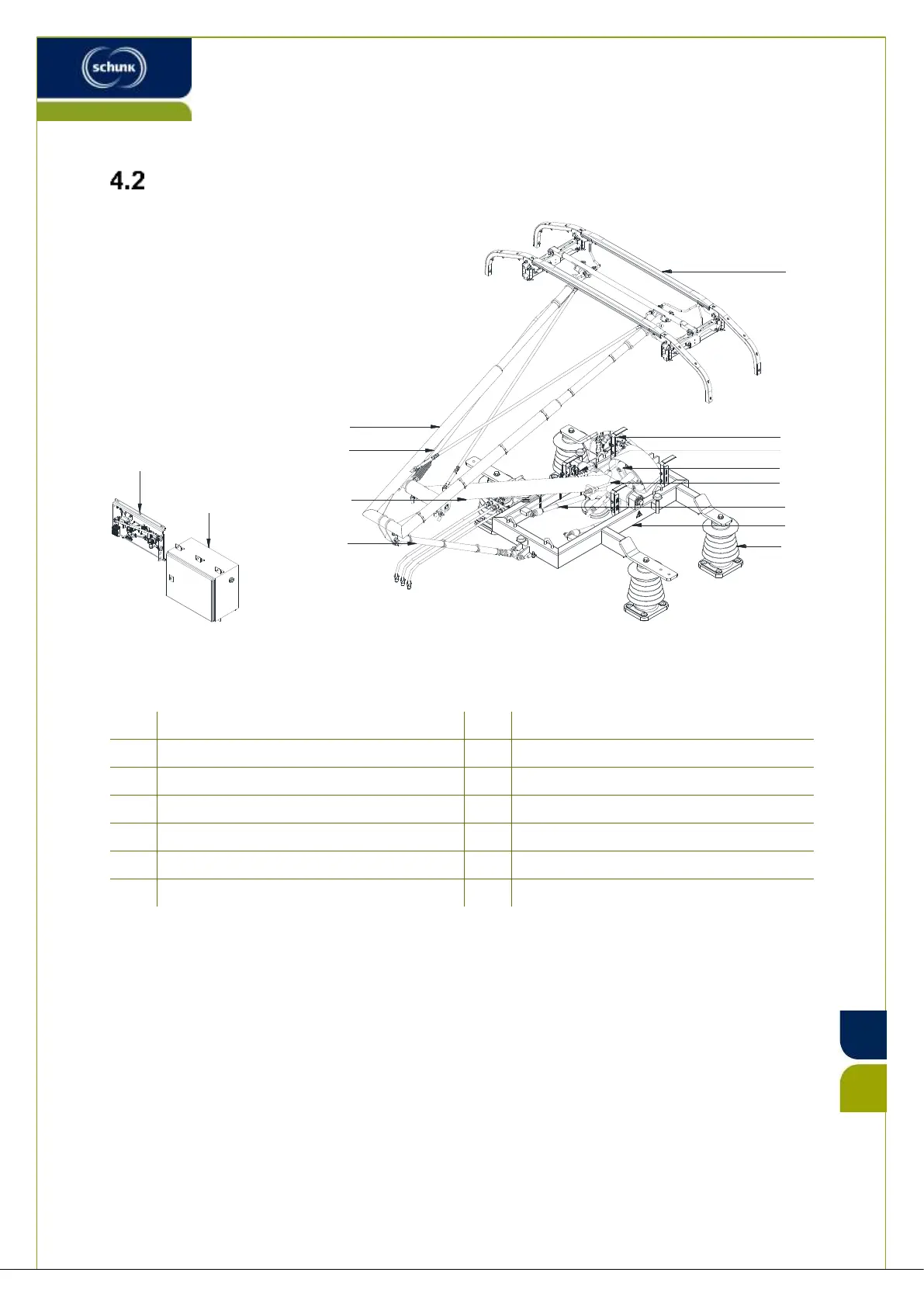

Illustration 1: Components
1
Base frame compl.
2
Lower frame
3
Upper frame compl.
4
Air bellow drive
5
Valve unit ADD
6
Coupling rod
7
Parallel guide bar compl.
8
Pan head
9
Shock absorber
10
Cable with terminals
11
Overreach detection
12
Insulator compl.
13
Pneumatic control unit
14
Pneumatic control unit
8
12
3
14
13
4
6
2
5
7
9
10
1
11
SB-038485_RS_Blatt2
