Shock Absorber

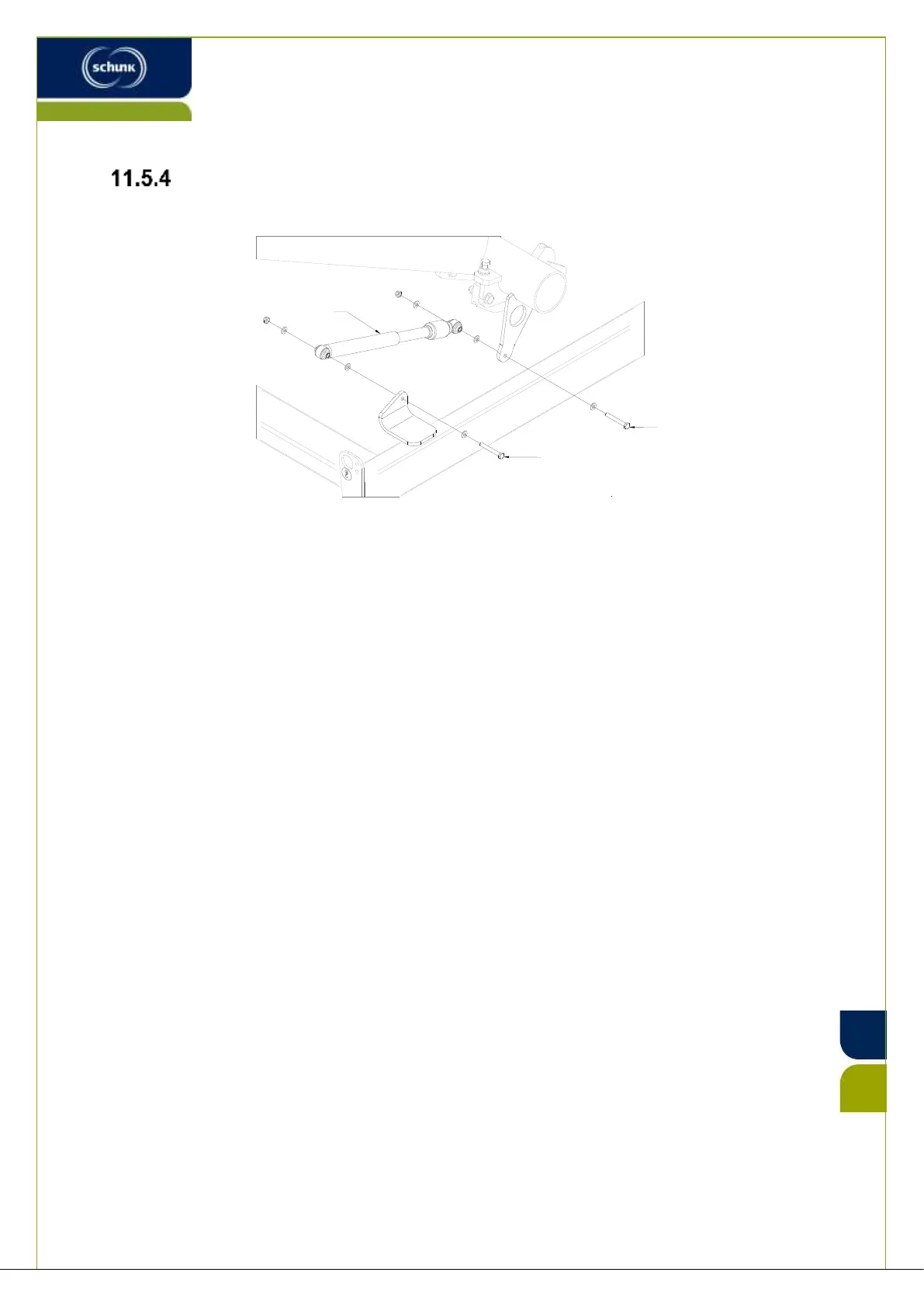

Illustration 30: EXAMPLE: Replace damper
Detachment:
1. Detach screw set (2) from lower frame.
2. Detach screw set (3) from base frame.
3. Detach shock absorber (1) 
Attachment:
1. Place shock absorber (1) to lower frame.
2. Grease ( Chapter #11.3.3), place and fix ( Chapter #11.3.2) screw
connection (2).
3. Place shock absorber (1) to base frame (5).
4. Grease ( Chapter #11.3.3), place and fix ( Chapter #11.3.2) screw
connection (3).
SB-026341_RS.idw - Blatt 1 - Rev. A
3
2
1
