Adjustment of Resting Position
Resting position is adjusted according to the value of technical data ( Chapter #3).

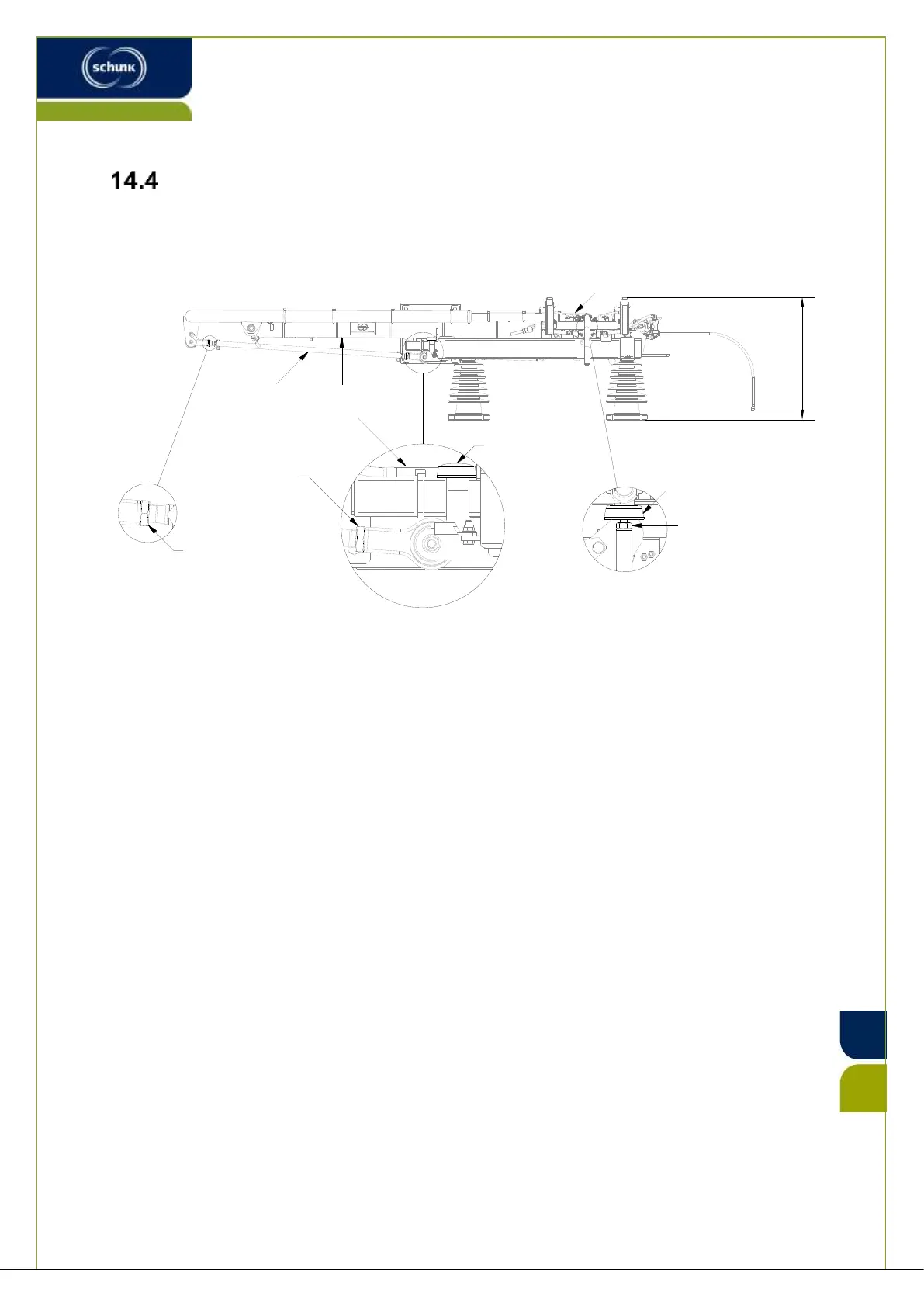

Illustration 39: EXAMPLE: Adjustment of resting position (h
s
)
Procedure:
Checkup of resting position (h
s
): Chapter #14.3
Adjust limit stops for upper frame:
1. Loosen check nut (1).
2. Completely screw-in limit stop (2) for upper frame (3).
3. Screw-out both limit stops (2) equally.
4. Screw-out limit stops (2) until you reach proper resting position.
5. Fix check nuts (1) of limit stops (2).
