SCHUNK WBL 22.03 - Pan Head; Illustration 29: Replace Sliding Strips

Schunk Bahn- und Industrietechnik GmbH
Maintenance
SB-038483-EN.docx
72 / 147
Datum: 13.02.2018
SAP.Nr.10901359
Index: -
Pan Head
Sliding Strip
D A N G E R
Pantograph raised pneumatically at replacement of sliding strips
Valve unit ADD responds, pantograph lowers
NEVER raise pantograph pneumatically when replacing sliding strips.
After replacement of sliding strips:
Check if all air pressure hoses are connected properly to the sliding strips.

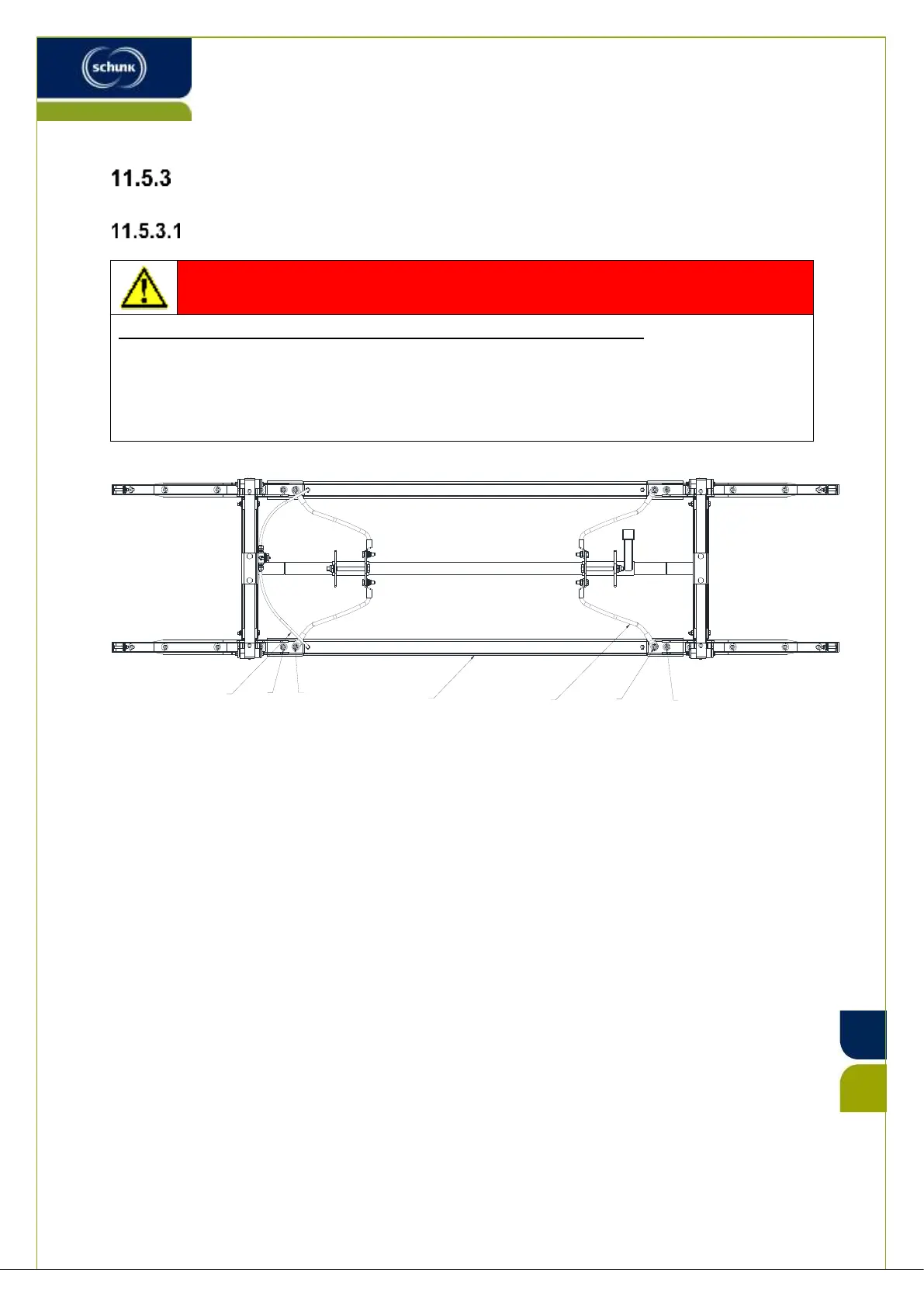

Illustration 29: Replace sliding strips
2
1
4
2
3
3
4
SB-038703_RS_Blatt5
