Attachment of High Voltage Connection
D A N G E R
Dirty, coated and / or ungreased shunt connections
Inaccurate current flow, injuries, damages
Clean and grease shunt connections and connection boards.

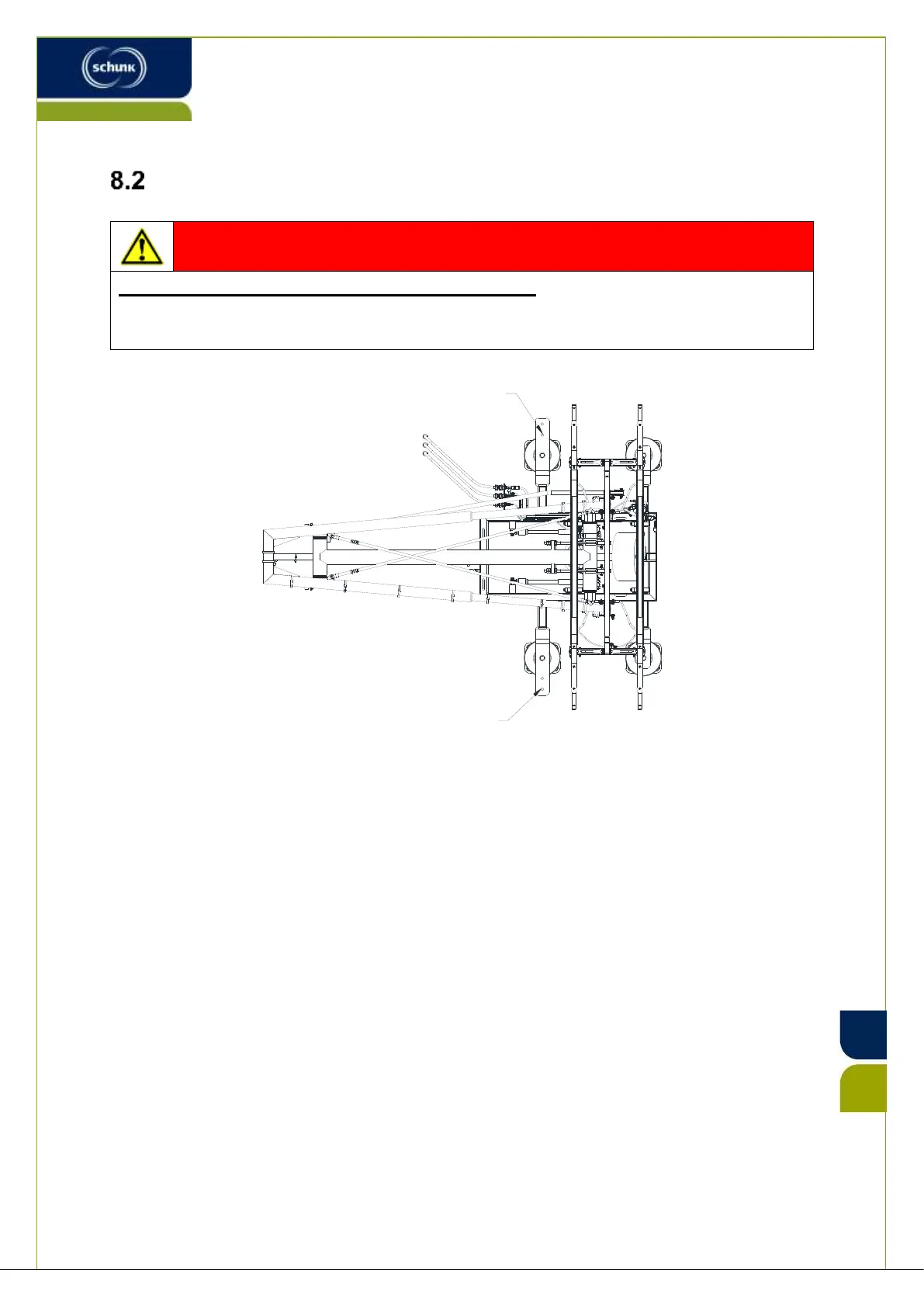

Illustration 18: High voltage connection
The High Voltage Connection has to be mounted at the connection boards (1), which
is attached to the base frame.
Assure that the connection board is cleaned and greased with contact grease before
assembling.
X
X
SB-038935_RS_Blatt2
