Adjustment Procedures
Checkup of Static Contact Force
The static contact force has to be checked after every replacement of the sliding
strips. The static contact force can be checked with a spring scale or the
Schunk KM 11 unit.
For adjustment procedures, the damper must be removed or
else results will be falsified.

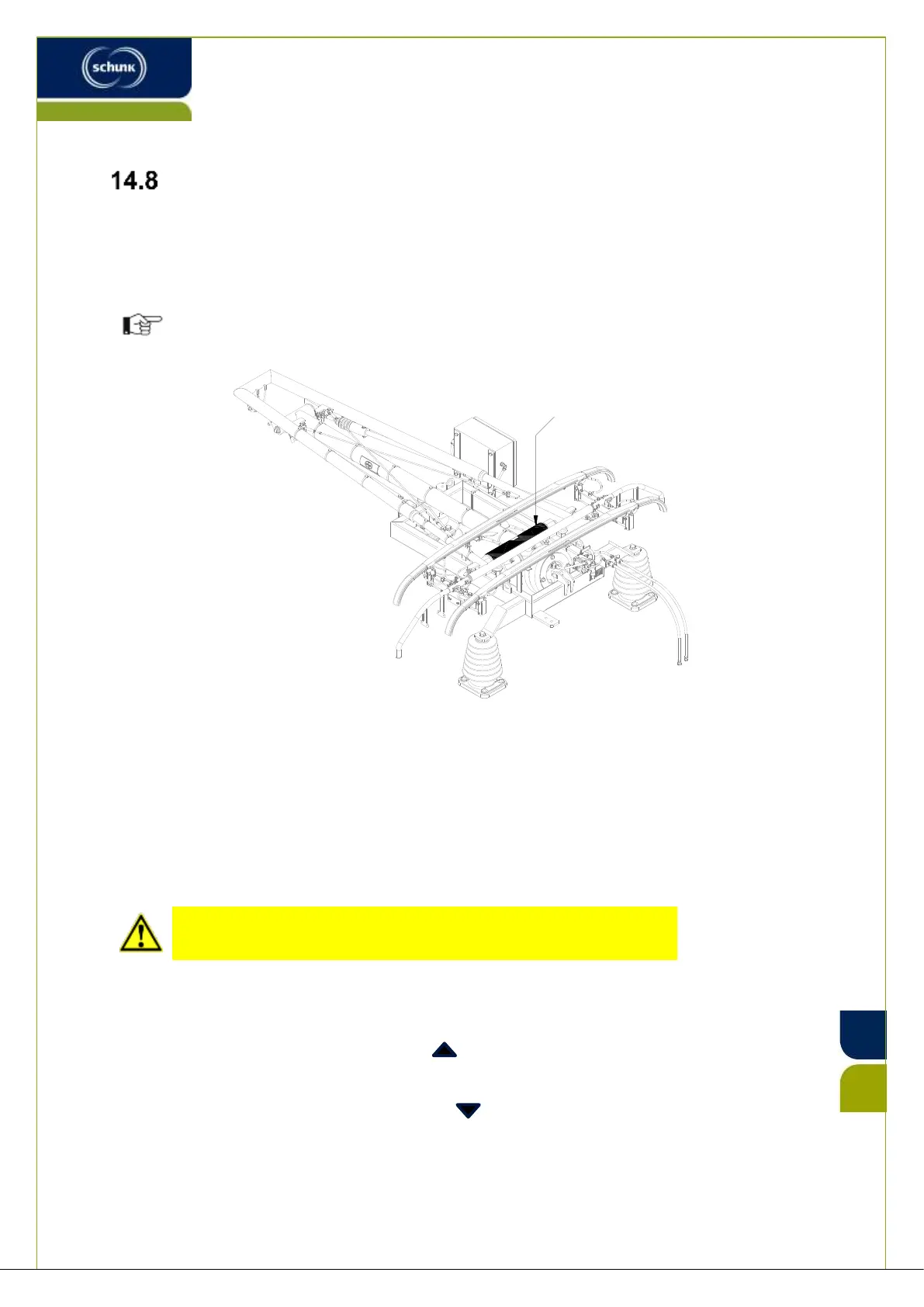

Illustration 43: EXAMPLE: Attachment of measuring device
Procedure:
1. Assure that the damper is detached.
2. You can find the value of the static contact force in technical data
( Chapter# 3).
NEVER attach measuring device to parts of the pan head.
Measuring devices MAY NEVER rub at pantograph parts.
3. Attach measuring device (spring scale or KM11 device) to the middle of the
cross tube of upper frame (1).
4. Let pantograph move upwards ( ) to highest position with the measuring
device (50 mm/s speed).
5. Let pantograph move downwards ( ) to resting position with the measuring
device (50 mm/s speed).
