Valve Unit ADD
Checkup of Function
The valve unit ADD must be checked for correct function.
Procedure:
1. Lower pantograph pneumatically.
NEVER attach belt at parts of the pan head.
2. Raise pantograph pneumatically and hold it by hand just over resting position.
3. Fix pantograph with belt between base frame and upper frame.
4. UNLOCK Test Valve:
a. Detach nut (1).
b. Detach lever (2) and turn it 180° degrees.
c. Attach lever (2) to the valve unit ADD and fix it with the nut (1).

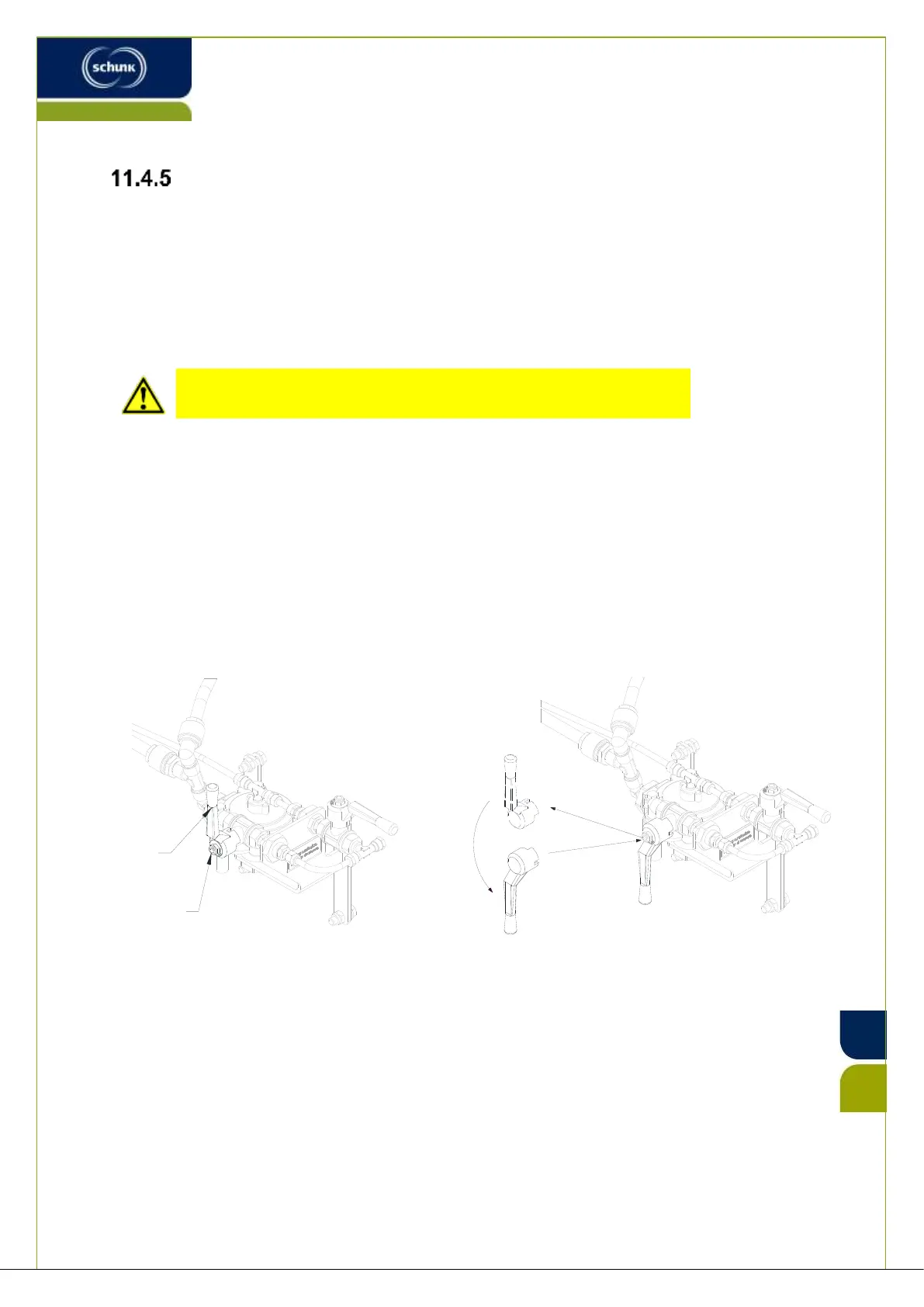

Illustration 23: UNLOCK test valve
5. OPEN Test Valve:
a. Bring lever (2) to position OPEN:
Air is blowing – off.
The quick exhaust valve exhausts.
1
2
SB-036450_RS.idw - Blatt 3 - Rev.-
